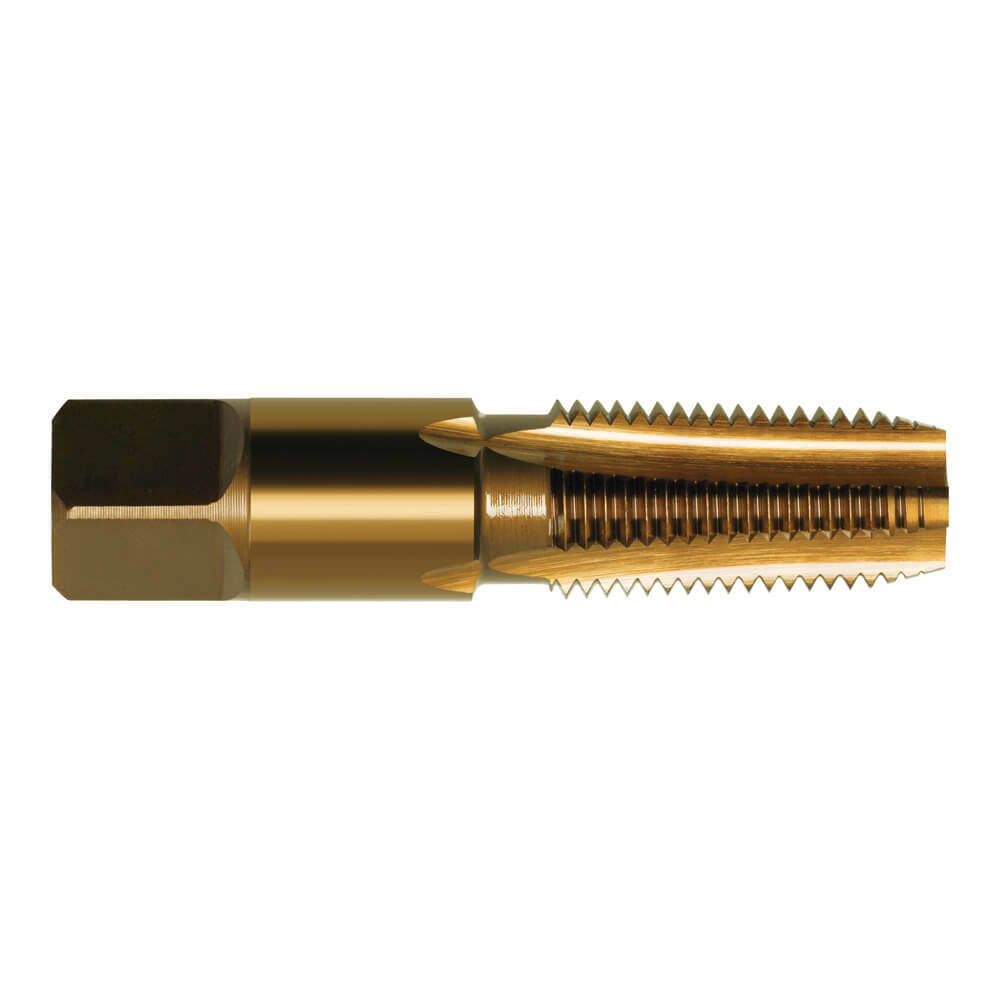

Sutton T488 1/2 x 14 TPI Straight Flute Tap Pipe Bottoming - HSS - Colour Temp
Available
The Sutton T488 is a straight flute tap (bottoming chamfer) for NPTF threads, made from high speed steel (HSS) with a colour-tempered finish. This listing covers 4 sizes from 1/8 x 27 TPI to 1/2 x 14 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ANSI B94.9.
Where this product is used
- Through and blind holes.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Colour-tempered finish.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ANSI B94.9 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T488 1029 | 1/8 x 27 TPI | 27 | 8.2 | 54 | 19 | 11.11 | 8.33 | 9.5 | 4 |
| T488 1372 | 1/4 x 18 TPI | 18 | 10.8 | 62 | 27 | 14.29 | 10.7 | 11.1 | 4 |
| T488 1715 | 3/8 x 18 TPI | 18 | 14 | 65 | 27 | 17.78 | 13.49 | 12.7 | 4 |
| T488 2134 | 1/2 x 14 TPI | 14 | 17.5 | 79 | 35 | 17.46 | 13.08 | 15.9 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T488 |
| Type | Straight flute tap |
| Thread series | NPTF |
| Material | HSS |
| Finish | Colour Temp |
| Chamfer | Bottoming (Form E) |
| Standard | ANSI B94.9 |
| Flutes | 4 |
| Sizes in this listing | 4 sizes, 1/8 x 27 TPI to 1/2 x 14 TPI |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T488 NPTF Straight Flute Tap Pipe Bottoming - HSS - Colour Temp - ANSI B94.9: 14 / 1/2
SKU: A0015827 | Model: T4882134
TPI 14, Diameter (inch) 1/2. Features
The Sutton T488 is a straight flute tap (bottoming chamfer) for NPTF threads, made from high speed steel (HSS) with a colour-tempered finish. This listing covers 4 sizes from 1/8 x 27 TPI to 1/2 x 14 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ANSI B94.9.
