Sutton T500 M2.5 x 0.45 Spiral Point Tap - HSSE - Steam Oxide - JIS
Available

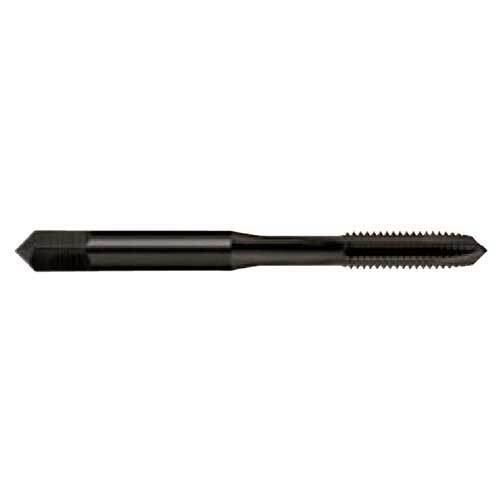

The Sutton T500 is a spiral point (gun) tap (N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 15 sizes from M2 x 0.4 to M24 x 3.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (5 x P), for through holes in medium and long chipping materials.
The tap is built to JIS (Japanese Industrial Standards).
Where this product is used
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 2 to 4 flutes, depending on size.
- Form B chamfer, 5 x P.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- JIS (Japanese Industrial Standards) construction.
Sizes

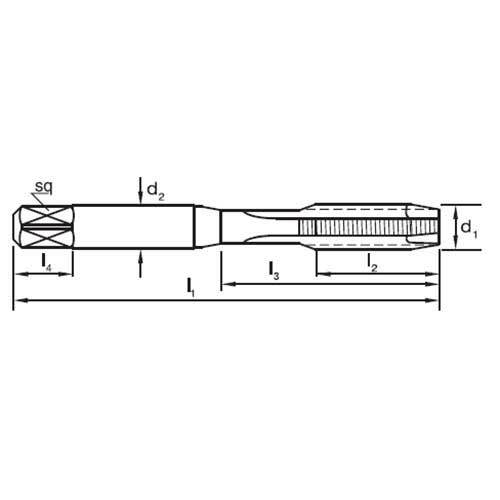

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|---|
| T500 0200 | M2 x 0.4 | 0.4 | 1.6 | 40 | 12 | - | 3 | 2.5 | 2 | P2 |
| T500 0250 | M2.5 x 0.45 | 0.45 | 2.05 | 44 | 14 | - | 3 | 2.5 | 2 | P2 |
| T500 0260 | M2.6 x 0.45 | 0.45 | 2.15 | 44 | 14 | - | 3 | 2.5 | 2 | P2 |
| T500 0300 | M3 x 0.5 | 0.5 | 2.5 | 46 | 11 | 19 | 4 | 3.2 | 3 | P2 |
| T500 0350 | M3.5 x 0.6 | 0.6 | 2.9 | 48 | 13 | 23 | 4 | 3.2 | 3 | P2 |
| T500 0400 | M4 x 0.7 | 0.7 | 3.3 | 52 | 13 | 21 | 5 | 4 | 3 | P2 |
| T500 0500 | M5 x 0.8 | 0.8 | 4.2 | 60 | 16 | 24 | 5.5 | 4.5 | 3 | P2 |
| T500 0600 | M6 x 1 | 1 | 5 | 62 | 19 | 31 | 6 | 4.5 | 3 | P2 |
| T500 0800 | M8 x 1.25 | 1.25 | 6.8 | 70 | 22 | - | 6.2 | 5 | 3 | P3 |
| T500 1000 | M10 x 1.5 | 1.5 | 8.5 | 75 | 24 | - | 7 | 5.5 | 3 | P3 |
| T500 1006 | M10 x 1.25 | 1.25 | 8.8 | 75 | 24 | - | 7 | 5.5 | 3 | P3 |
| T500 1200 | M12 x 1.75 | 1.75 | 10.2 | 82 | 29 | - | 8.5 | 6.5 | 3 | P4 |
| T500 1600 | M16 x 2 | 2 | 14 | 95 | 32 | - | 12.5 | 10 | 4 | P4 |
| T500 2000 | M20 x 2.5 | 2.5 | 17.5 | 105 | 37 | - | 15 | 12 | 4 | P4 |
| T500 2400 | M24 x 3 | 3 | 21 | 120 | 45 | - | 19 | 15 | 4 | P4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T500 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | N |
| Chamfer | Form B / 5 x P |
| Standard | JIS |
| Flutes | 2 to 4 |
| Sizes in this listing | 15 sizes, M2 x 0.4 to M24 x 3 |
Related products
Related Sutton taps: T499 Metric Coarse Spiral Point Tap - HSSE - Bright - JIS.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T500 Metric Coarse Spiral Point Tap - HSSE - Steam Oxide - JIS: M2.5
SKU: A0131380 | Model: T5000250
This is the diameter size d1 M2.5 option of the Sutton T500 Metric Coarse Spiral Point Tap - HSSE - Steam Oxide - JIS. Key details for this option: thread size M2.5 x 0.45, thread length 14mm, tapping drill size 2.05mm, square size 2.5mm, overall length 44mm.
Sutton T500 Spiral Point Tap Gun - M - N
The Sutton T500 is a spiral point (gun) tap (N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 15 sizes from M2 x 0.4 to M24 x 3.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (5 x P), for through holes in medium and long chipping materials.
The tap is built to JIS (Japanese Industrial Standards).
