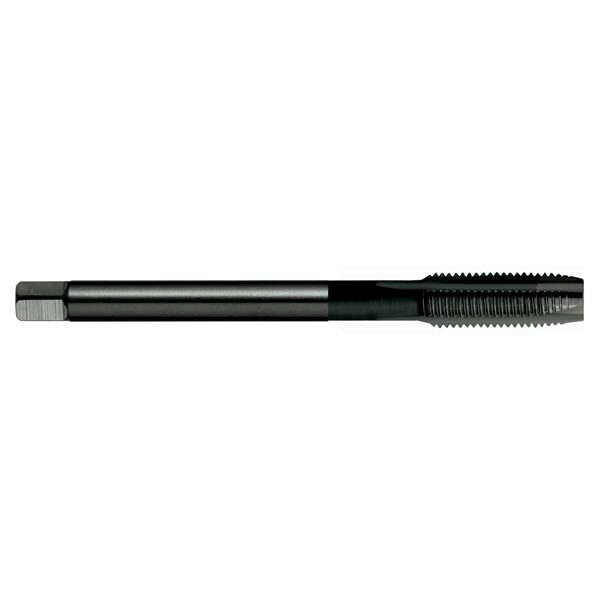

Sutton T654 Metric Fine Spiral Point Tap - Premium HSS Blue1

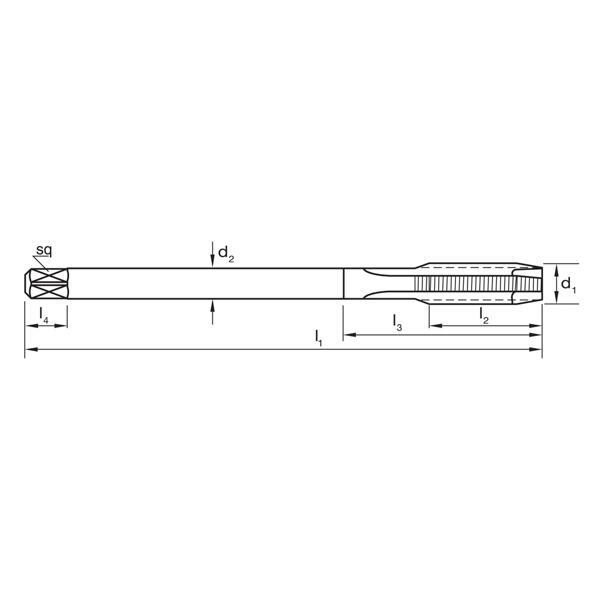

Sutton T654 Metric Fine Spiral Point Tap - Premium HSS Blue2

Sutton T6541005 Metric Fine MF10 x 1 Spiral Point Tap - HSSE V3 Blue

Sutton T6541206 Metric MF12 x 1.25 Spiral Point Tap - HSSE V3 Blue

Description +

Dimensions

d1: MF10
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 9 (drill)
Pitch (mm): 1 (pitch)

Features

Suitable for harder short chipping materials up to 42 HRC
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: NH
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun) DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Specifications +

Dimensions

d1: MF10
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 9 (drill)
Pitch (mm): 1 (pitch)

Specifications

Designation: NH
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun) DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Features & Benefits +

Features

Suitable for harder short chipping materials up to 42 HRC
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T654 Metric Fine Spiral Point Tap - Premium HSS Blue

SKU: A0015843

$92.97

Inc. GST

Out of stock

The Sutton T654 Metric Fine Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3). It provides Depths up to approx. 3 x d1 and is suitable for machine operations.
