Sutton T6550604 MF6 x 0.75 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T6551004 MF10 x 0.75 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Description +

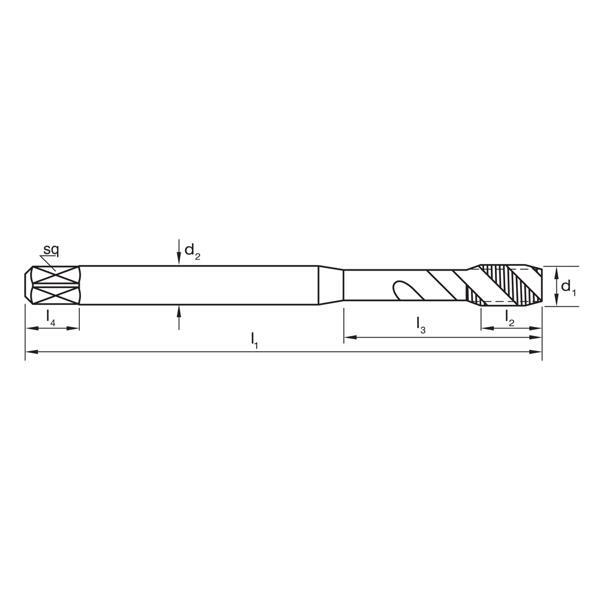

Dimensions

d1: MF6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 8
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5.3 (drill)
Pitch (mm): 0.75 (pitch)

Features

Suitable for harder short chipping materials up to 42 HRC
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: NH
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1: MF6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 8
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5.3 (drill)
Pitch (mm): 0.75 (pitch)

Specifications

Designation: NH
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

Suitable for harder short chipping materials up to 42 HRC
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

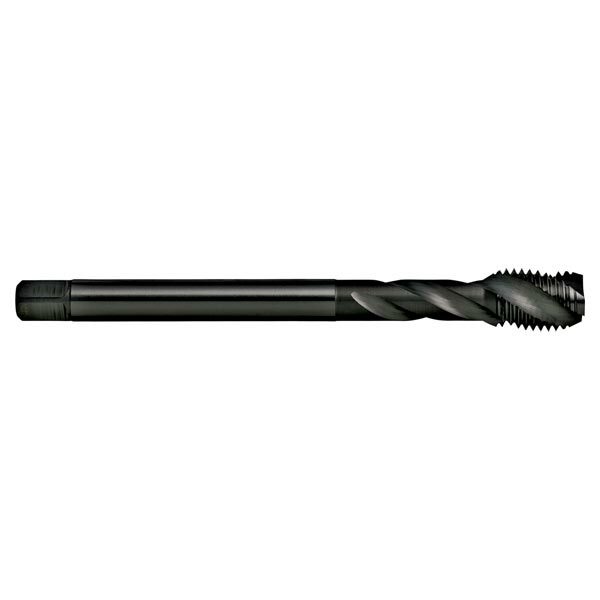

Sutton T655 Metric Fine Spiral Flute Tap - R40 NH - Premium HSS Blue

SKU: A0015845

$77.48

Inc. GST

Buy It Now

Out of stock

The Sutton T655 Metric Fine Spiral Flute Tap by Sutton Tools is a 0 manufactured from Premium Grade High Speed Steel (HSSE-V3). It provides depths up to approximately 2.5 x d1 and is suitable for quenched and tempered steel.
