Description
Description
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 10
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.1 (drill)
- TPI: 20 (TPI)
Features
- Use in harder short chipping materials up to 45 HRc
- Blind holes
- Suitable for machine operations
- Depths up to approx. 1.5 x d1
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2BX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Specifications
Specifications
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 10
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.1 (drill)
- TPI: 20 (TPI)
Specifications
- Designation: H (for hard materials forming short chips)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2BX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Features & Benefits
Features & Benefits
Features
- Use in harder short chipping materials up to 45 HRc
- Blind holes
- Suitable for machine operations
- Depths up to approx. 1.5 x d1
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

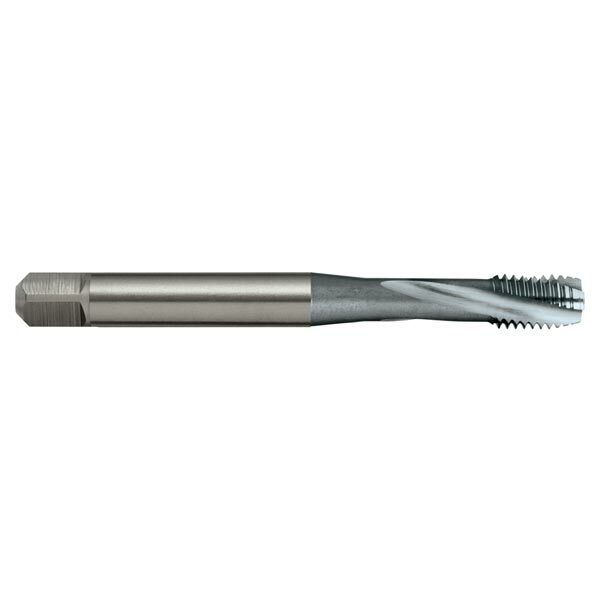

Sutton T667 UNC Spiral Flute Tap - R15 H - Cobalt Steel TiCN
Sutton T667 UNC Spiral Flute Tap - R15 H - Cobalt Steel TiCN
SKU: A0015858
Regular price
$80.32
Sale price
$80.32
Regular price
Unit price
/per
Tax included.
Shipping calculated at checkout.
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T667 UNC Spiral Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides 11.1125 d1 (mm) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.
