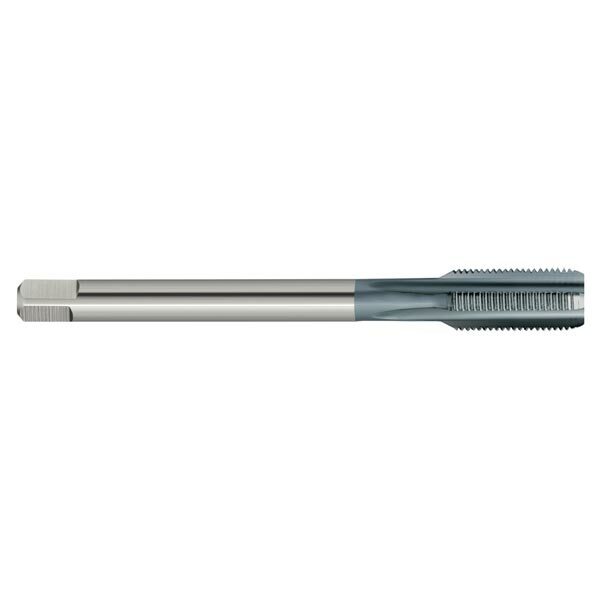

Sutton T6681006 Metric MF10 x 1.25 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681207 Metric MF12 x 1.5 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681407 Metric MF14 x 1.5 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681607 Metric MF16 x 1.5 Straight Flute Tap - Cobalt Steel TiCN
Sutton T668 Metric Fine Straight Flute Tap - Cobalt Steel TiCN1
Sutton T668 Metric Fine Straight Flute Tap - Cobalt Steel TiCN2
Sutton T6681006 Metric MF10 x 1.25 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681207 Metric MF12 x 1.5 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681407 Metric MF14 x 1.5 Straight Flute Tap - Cobalt Steel TiCN
Sutton T6681607 Metric MF16 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Sutton T668 Metric Fine Straight Flute Tap - Cobalt Steel TiCN

Sutton T668 Metric Fine Straight Flute Tap - Cobalt Steel TiCN

SKU: A0015869

$219.59
$219.59
Inc. GST
Buy It Now

Available

The Sutton T668 Metric Fine Straight Flute Tap by Sutton Tools is a 0 made of Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides 1.25 mm pitch and is suitable for Aluminium & Magnesium, cast alloy ≤12% Si - Non Heat Treatable.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

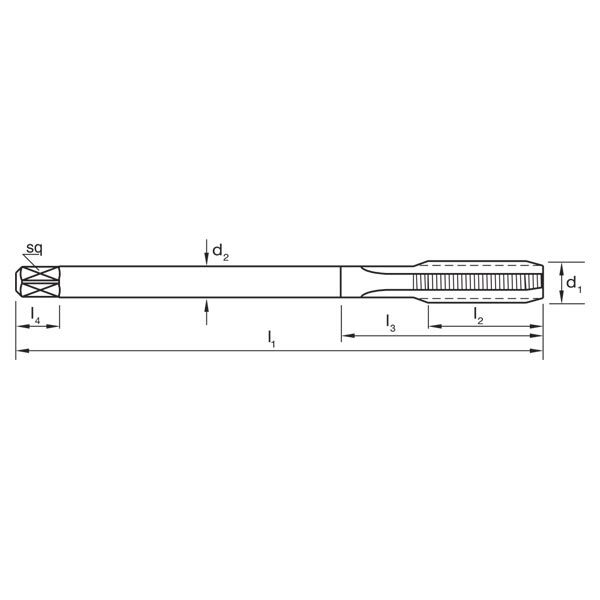

Dimensions

  • d1: MF10
  • d2 (mm): 7
  • l1 (mm): 100
  • l2 (mm): 24
  • l4 (mm): 8
  • Square Size (mm): 5.5
  • z: 4
  • Drill Size (mm): 8.8 (drill)
  • Pitch (mm): 1.25 (pitch)

Features

  • Premium design for cast aluminium and cast iron (Short Chipping)
  • Through & blind holes
  • Depths up to approx. 1.5 x d
  • Axial coolant duct available

Specifications

  • Designation: DC
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: 6HX
  • Lead: Form E / 1.5 x P

Applications

  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Dimensions

  • d1: MF10
  • d2 (mm): 7
  • l1 (mm): 100
  • l2 (mm): 24
  • l4 (mm): 8
  • Square Size (mm): 5.5
  • z: 4
  • Drill Size (mm): 8.8 (drill)
  • Pitch (mm): 1.25 (pitch)

Specifications

  • Designation: DC
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: 6HX
  • Lead: Form E / 1.5 x P

Applications

  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Features

  • Premium design for cast aluminium and cast iron (Short Chipping)
  • Through & blind holes
  • Depths up to approx. 1.5 x d
  • Axial coolant duct available
