Sutton T669 Metric Fine Straight Flute Tap - Cobalt Steel TiCN1

Sutton T669 Metric Fine Straight Flute Tap - Cobalt Steel TiCN2

Sutton T6691006 Metric MF10 x 1.25 Straight Flute Tap - Cobalt Steel TiCN

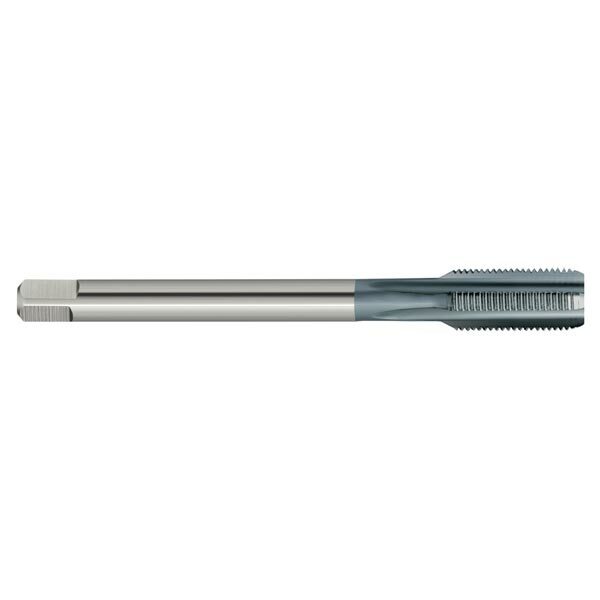

Sutton T6691207 Metric MF12 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Sutton T6691407 Metric MF14 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Sutton T6691607 Metric MF16 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Description +

Dimensions

d1: MF10
d2 (mm): 7
l1 (mm): 100
l2 (mm): 24
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
Pitch (mm): 1.25 (pitch)

Features

Premium design for cast aluminium and cast iron (Short Chipping)
Through & blind holes
Depths up to approx. 1.5 x d
Axial coolant duct available

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications +

Dimensions

d1: MF10
d2 (mm): 7
l1 (mm): 100
l2 (mm): 24
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
Pitch (mm): 1.25 (pitch)

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Application +

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Features & Benefits +

Features

Premium design for cast aluminium and cast iron (Short Chipping)
Through & blind holes
Depths up to approx. 1.5 x d
Axial coolant duct available

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T669 Metric Fine Straight Flute Tap - Cobalt Steel TiCN

SKU: A0015873

$319.53

Inc. GST

Buy It Now

Available

The Sutton T669 Metric Fine Straight Flute Tap by Sutton Tools is a 0 with TiCN finish. It offers Drill Size (mm): 8.8 (drill) and is suitable for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable.
