Sutton T686 Metric Fine Spiral Flute Tap - R50 UNI Black Magic HSSE V31

Sutton T686 Metric Fine Spiral Flute Tap - R50 UNI Black Magic HSSE V32

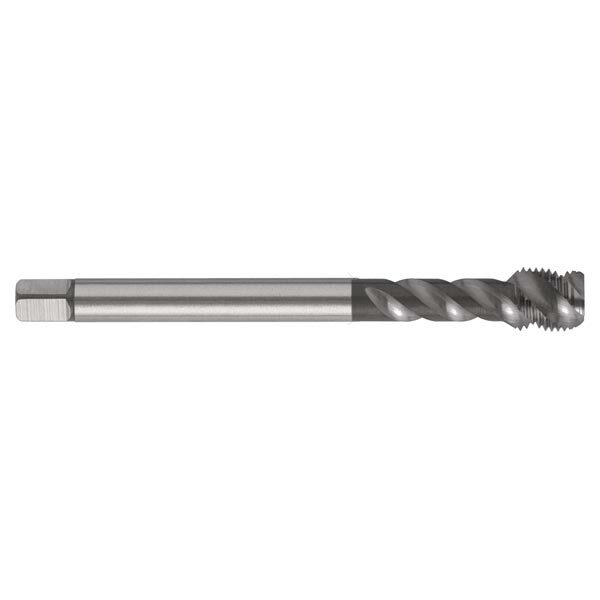

Sutton T6860604 MF6 x 0.75 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6860805 MF8 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861005 MF10 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861006 MF10 x 1.25 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861205 MF12 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861206 MF12 x 1.25 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861207 MF12 x 1.5 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861406 MF14 x 1.25 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6860803 MF8 x 0.5 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861004 MF10 x 0.75 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861405 MF14 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861407 MF14 x 1.5 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861605 MF16 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861607 MF16 x 1.5 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6861805 MF18 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6862005 MF20 x 1 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Sutton T6862007 MF20 x 1.5 Spiral Flute Tap - R50 UNI Black Magic HSSE V3

Description +

Dimensions

d1: MF6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 8
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5.3 (drill)
Pitch (mm): 0.75 (pitch)

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes up to 3 x d1
Suitable for synchronous tapping in machine operations

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Specifications +

Dimensions

d1: MF6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 8
l4 (mm): 6
Square Size (mm): 3.4
z: 3
Drill Size (mm): 5.3 (drill)
Pitch (mm): 0.75 (pitch)

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Features & Benefits +

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes up to 3 x d1
Suitable for synchronous tapping in machine operations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T686 Metric Fine Spiral Flute Tap - R50 UNI Black Magic HSSE V3

SKU: A0015939

$150.17

Inc. GST

Buy It Now

Available

The Sutton T686 Metric Fine Spiral Flute Tap by Sutton Tools is a 0 with Hardlube finish. It offers l1 100 mm and is suitable for Stainless Steel - Austenitic Age Hardened.
