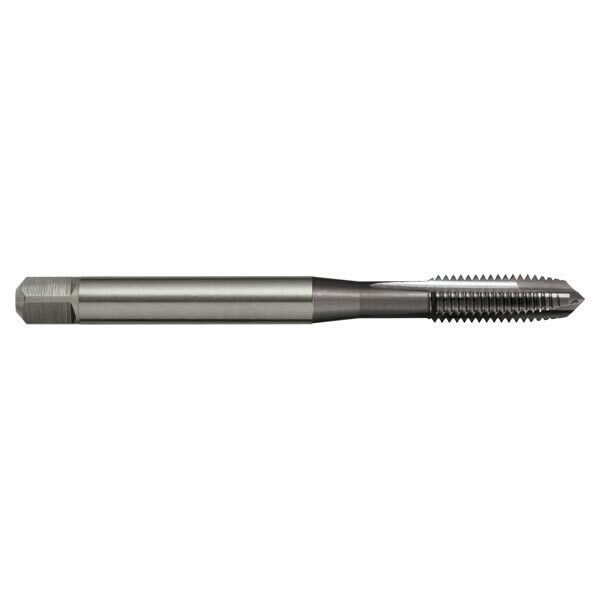

Sutton T6930953 UNC 3/8 x 16 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6931270 UNC 1/2 x 13 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6931588 UNC 5/8 x 11 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T693 UNC Spiral Point Tap - Black Magic - Vanadium HSS1
Sutton T693 UNC Spiral Point Tap - Black Magic - Vanadium HSS2
Sutton T6930218 UNC 2-56 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930284 UNC 4-40 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930351 UNC 6-32 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930417 UNC 8-32 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930483 UNC 10-24 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930635 UNC 1/4 x 20 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930794 UNC 5/16 x 18 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6930953 UNC 3/8 x 16 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6931270 UNC 1/2 x 13 Spiral Point Tap - Black Magic - HSSE V3 HSS
Sutton T6931588 UNC 5/8 x 11 Spiral Point Tap - Black Magic - HSSE V3 HSS

Sutton T693 UNC Spiral Point Tap - Black Magic - Vanadium HSS

Sutton T693 UNC Spiral Point Tap - Black Magic - Vanadium HSS

SKU: A0016001

$320.56
$320.56
Inc. GST
Buy It Now

Available

The Sutton T693 UNC Spiral Point Tap by Sutton Tools is a 0 with Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3). It provides a Drill Size 10.8 (drill) and is suitable for Stainless Steel - Austenitic.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

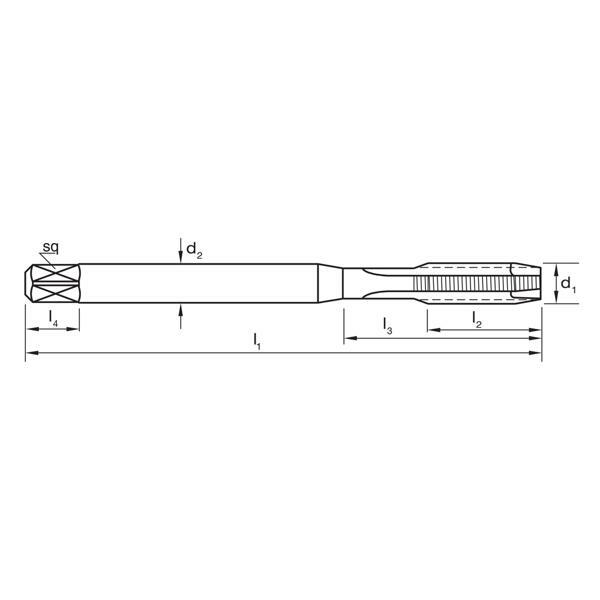

Dimensions

  • d1 (mm): 2.1844
  • d2 (mm): 2.8
  • l1 (mm): 45
  • l2 (mm): 9
  • l3 (mm): 12
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 1.85 (drill)
  • TPI: 56 (TPI)

Features

  • Universal high performance tapping
  • PM-HSSE V3 offers superior tool life
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Through holes up to 3 x d1
  • Suitable for synchronous tapping in machine operations

Specifications

  • Designation: UNI (for normal general purpose type materials)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Hardlube
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2BX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - High alloy, cast & tool: Annealed
  • Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Dimensions

  • d1 (mm): 2.1844
  • d2 (mm): 2.8
  • l1 (mm): 45
  • l2 (mm): 9
  • l3 (mm): 12
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 1.85 (drill)
  • TPI: 56 (TPI)

Specifications

  • Designation: UNI (for normal general purpose type materials)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Hardlube
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2BX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - High alloy, cast & tool: Annealed
  • Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Features

  • Universal high performance tapping
  • PM-HSSE V3 offers superior tool life
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Through holes up to 3 x d1
  • Suitable for synchronous tapping in machine operations
