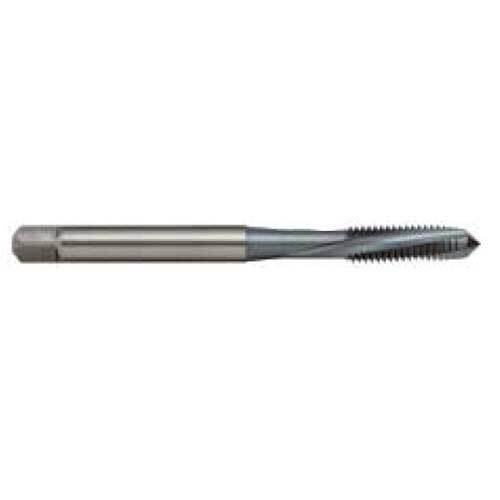

Sutton T786 Spiral Flute Tap - L12 Ti - UNJC1

Sutton T786 Spiral Flute Tap - L12 Ti - UNJC2

Sutton T7860635 UNJC 1/4" x 20 Spiral Flute Tap L12 Ti - PM-HSS Co

Sutton T7860794 UNJC 5/16" x 18 Spiral Flute Tap L12 Ti - PM-HSS Co

Sutton T7860953 UNJC 3/8" x 16 Spiral Flute Tap L12 Ti - PM-HSS Co

Description +

Sutton T786 Spiral Flute Tap - L12 Ti - UNJC

For Titanium-based alloys.
For duplex and super duplex stainless steels.
For Nickel based alloys >850N/mm2 <1150N/mm2.
Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
Through holes up to approximately 1.5 x d1

Specifications +

Specifications

Group Code: T786
Material: PM-HSS Co
Surface Finish: TiCN
Sutton Designation: Ti
Geometry: L12
Chamfer: Form B / 4.5 x P
Limit & Nut Tolerance: 3BX

Application +

Applications

Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T786 Spiral Flute Tap - L12 Ti - UNJC

SKU: A0131493

Type: Spiral Flute Tap

$166.17

Inc. GST

Out of stock

The Sutton T786 Spiral Flute Tap by Sutton Tools is a Spiral Flute Tap with TiCN surface finish. It provides Through holes up to approximately 1.5 x d1 and is suitable for Titanium & Titanium alloys - Alpha / Beta alloys.
