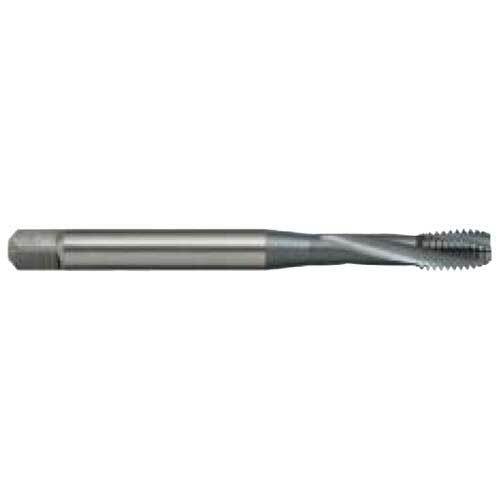

Sutton T790 Spiral Flute Tap - R15 Ti - UNJC

• For Titanium-based alloys.
• For duplex and super duplex stainless steel.
• For Nickel based alloys >850N/mm2 <1150N/mm2.
• Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
• Blind holes up to approximately 1.5 x d1.

Specifications

• Group Code: T790
• Material: PM-HSS Co
• Surface Finish: TiCN
• Sutton Designation: Ti
• Geometry: R15
• Chamfer: Form C / 3 x P
• Limit & Nut Tolerance: 3BX

Applications

• Optimal for Titanium & Titanium alloys - Alpha alloys
• Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
• Optimal for Titanium & Titanium alloys - Beta alloys

About PM-HSS Co

• Powdered metallurgy - 8% Cobalt grade of high-speed steel.
• Application, Materials with hardness up to 45HRC.
• The addition of cobalt provides this material with the ability to maintain its strength and hardness level when exposed to extremely high cutting temperatures.
• This makes PM-HSS Co Suitable for heavy-duty tapping, in materials such as high alloyed steels to non-ferrous metals like Ni-base alloys and Ti-alloys.

Specifications

• Group Code: T790
• Material: PM-HSS Co
• Surface Finish: TiCN
• Sutton Designation: Ti
• Geometry: R15
• Chamfer: Form C / 3 x P
• Limit & Nut Tolerance: 3BX

Applications

• Optimal for Titanium & Titanium alloys - Alpha alloys
• Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
• Optimal for Titanium & Titanium alloys - Beta alloys
