Sutton T902 M8 x 1 Straight Flute Tap Set - HSS - Bright - ISO 529
Available

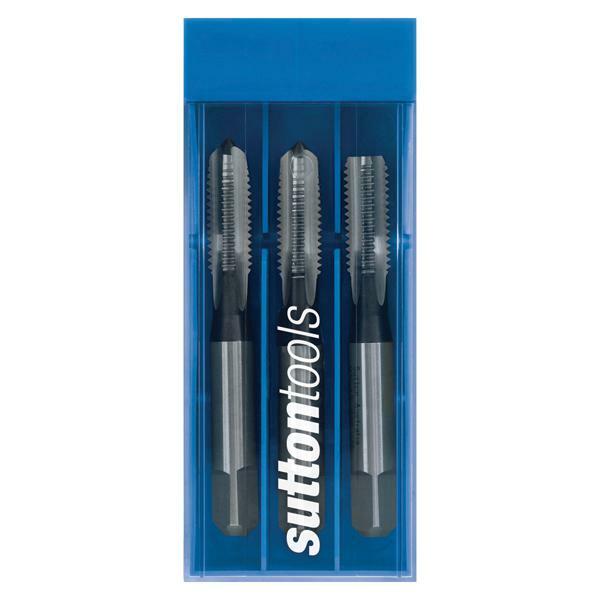

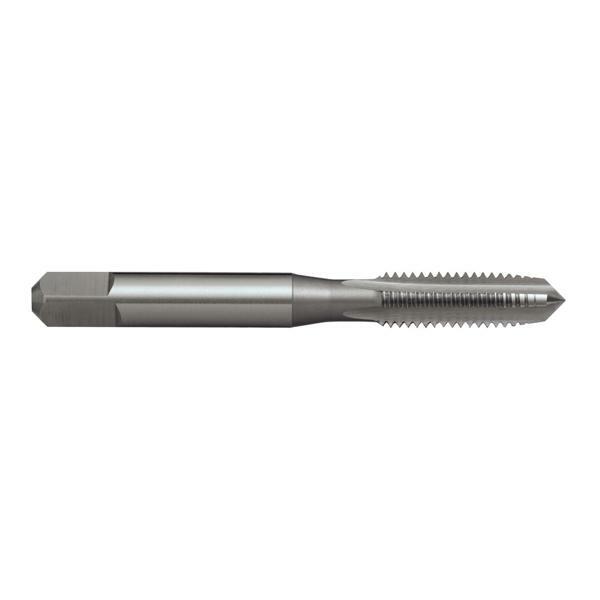

The Sutton T902 is a three-piece straight flute tap set (N designation) for metric fine (MF) threads, made from high speed steel (HSS) with a bright finish. This listing covers 12 sizes from M8 x 1 to M24 x 2.
Each set contains three taps in the same thread size: a taper tap, an intermediate tap and a bottoming tap. Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The taper tap has a Form A chamfer (6 to 8 threads on the lead), for short through holes. The intermediate tap has a Form D chamfer (3.5 to 5 threads on the lead), generally for through holes. The bottoming tap has a Form E chamfer (1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The thread tolerance is ISO 2 / 6H. The set is built to ISO 529.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Three taps per set: taper (Form A chamfer), intermediate (Form D) and bottoming (Form E).
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- ISO 529 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T902 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T902 1005 | M10 x 1 | 1 | 9 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T902 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T902 1206 | M12 x 1.25 | 1.25 | 10.8 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T902 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T902 1406 | M14 x 1.25 | 1.25 | 12.8 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T902 1407 | M14 x 1.5 | 1.5 | 12.5 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T902 1607 | M16 x 1.5 | 1.5 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T902 1807 | M18 x 1.5 | 1.5 | 16.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T902 2007 | M20 x 1.5 | 1.5 | 18.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T902 2207 | M22 x 1.5 | 1.5 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T902 2408 | M24 x 2 | 2 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T902 |
| Type | Three-piece straight flute tap set |
| Thread series | Metric fine (MF) |
| Material | HSS |
| Finish | Bright |
| Designation | N |
| Set contents | Taper (Form A), intermediate (Form D) and bottoming (Form E) taps |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 12 sizes, M8 x 1 to M24 x 2 |
