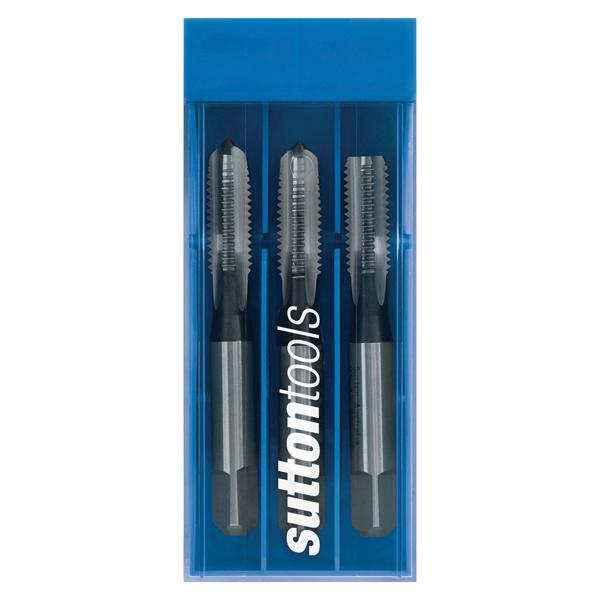

Sutton T906 BSF Straight Flute Tap Set ISO529 - HSS1

Sutton T906 BSF Straight Flute Tap Set ISO529 - HSS2

Sutton T906 BSF Straight Flute Tap Set ISO529 - HSS3

Sutton T9060476 BSF 3/16-32 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton T9060635 BSF 1/4-26 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton T9060794 BSF 5/16-22 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton T9060953 BSF 3/8-20 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton T9061111 BSF 7/16-18 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton T9061270 BSF 1/2-16 Straight Flute Tap Set (3 piece) ISO529 HSS

Description +

Dimensions

d1 (mm): 4.7625
d2 (mm): 5
l1 (mm): 58
l2 (mm): 16
l3 (mm): 22
l4 (mm): 7
Square Size (mm): 4
z: 3
Drill Size (mm): 4 (drill)
TPI: 32 (TPI)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: British Standard Fine 55Â° (BSF)
Nut Tolerance: Z3 Medium
Lead: Set

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications +

Dimensions

d1 (mm): 4.7625
d2 (mm): 5
l1 (mm): 58
l2 (mm): 16
l3 (mm): 22
l4 (mm): 7
Square Size (mm): 4
z: 3
Drill Size (mm): 4 (drill)
TPI: 32 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: British Standard Fine 55Â° (BSF)
Nut Tolerance: Z3 Medium
Lead: Set

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T906 BSF Straight Flute Tap Set ISO529 - HSS

SKU: A0016178

$197.47

Inc. GST

Available

The Sutton T906 BSF Straight Flute Tap Set ISO529 by Sutton Tools is a 0 made of High Speed Steel. It provides 18 TPI and is suitable for Threading.
