Sutton T907 1 BA Straight Flute Tap Set - HSS - Bright - ISO 529
Available
The Sutton T907 is a three-piece straight flute tap set for BA threads, made from high speed steel (HSS) with a bright finish. This listing covers 10 sizes from 10 BA to 1 BA.

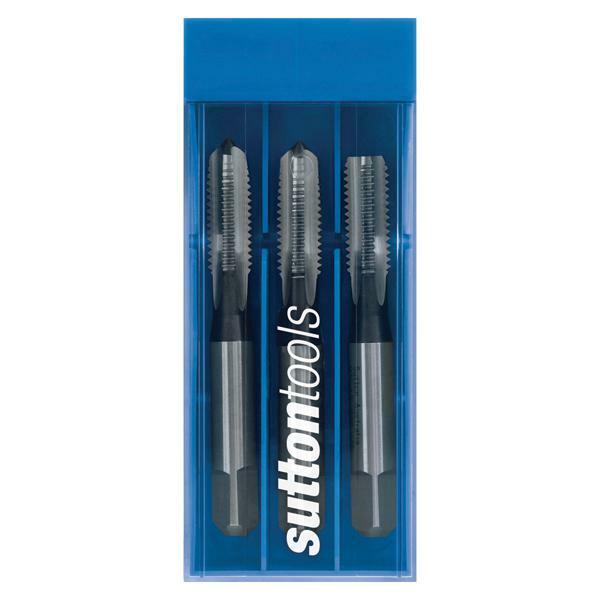

Each set contains three taps in the same thread size: a taper tap, an intermediate tap and a bottoming tap. Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The taper tap has a Form A chamfer (6 to 8 threads on the lead), for short through holes. The intermediate tap has a Form D chamfer (3.5 to 5 threads on the lead), generally for through holes. The bottoming tap has a Form E chamfer (1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The set is built to ISO 529.
Where this product is used
- Through and blind holes.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 flutes.
- Three taps per set: taper (Form A chamfer), intermediate (Form D) and bottoming (Form E).
- ISO 529 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T907 0170 | 10 BA | 0.35 | 1.4 | 41 | 8 | - | 2.5 | 2 | 4 | 3 |
| T907 0190 | 9 BA | 0.39 | 1.55 | 41 | 8 | - | 2.5 | 2 | 4 | 3 |
| T907 0220 | 8 BA | 0.43 | 1.8 | 45 | 10 | - | 2.8 | 2.24 | 5 | 3 |
| T907 0250 | 7 BA | 0.48 | 2.05 | 45 | 10 | - | 2.8 | 2.24 | 5 | 3 |
| T907 0280 | 6 BA | 0.53 | 2.3 | 48 | 15 | - | 3.15 | 2.5 | 5 | 3 |
| T907 0320 | 5 BA | 0.59 | 2.65 | 48 | 15 | - | 3.15 | 2.5 | 5 | 3 |
| T907 0360 | 4 BA | 0.66 | 3 | 50 | 17 | - | 3.55 | 2.8 | 5 | 3 |
| T907 0410 | 3 BA | 0.73 | 3.4 | 53 | 13 | 18 | 4.5 | 3.55 | 6 | 3 |
| T907 0470 | 2 BA | 0.81 | 4 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T907 0530 | 1 BA | 0.9 | 4.5 | 62 | 17 | 23 | 5.6 | 4.5 | 7 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T907 |
| Type | Three-piece straight flute tap set |
| Thread series | BA |
| Material | HSS |
| Finish | Bright |
| Set contents | Taper (Form A), intermediate (Form D) and bottoming (Form E) taps |
| Standard | ISO 529 |
| Flutes | 3 |
| Sizes in this listing | 10 sizes, 10 BA to 1 BA |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T907 BA Straight Flute Tap Set - HSS - Bright - ISO 529: 1 BA
SKU: A0016188 | Model: T9070530
This is the tap size 1 BA option of the Sutton T907 BA Straight Flute Tap Set - HSS - Bright - ISO 529. Key details for this option: thread length 17mm, tapping drill size 4.5mm, square size 4.5mm, shank diameter 5.6mm.
Features
The Sutton T907 is a three-piece straight flute tap set for BA threads, made from high speed steel (HSS) with a bright finish. This listing covers 10 sizes from 10 BA to 1 BA.
Each set contains three taps in the same thread size: a taper tap, an intermediate tap and a bottoming tap. Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The taper tap has a Form A chamfer (6 to 8 threads on the lead), for short through holes. The intermediate tap has a Form D chamfer (3.5 to 5 threads on the lead), generally for through holes. The bottoming tap has a Form E chamfer (1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The set is built to ISO 529.
