Sutton Tapmatic Z1303943 BT-40 Arbor with 25mm Bore
Regular price
$481.59
Sale price
$481.59
Regular price
Inc. GST
Available

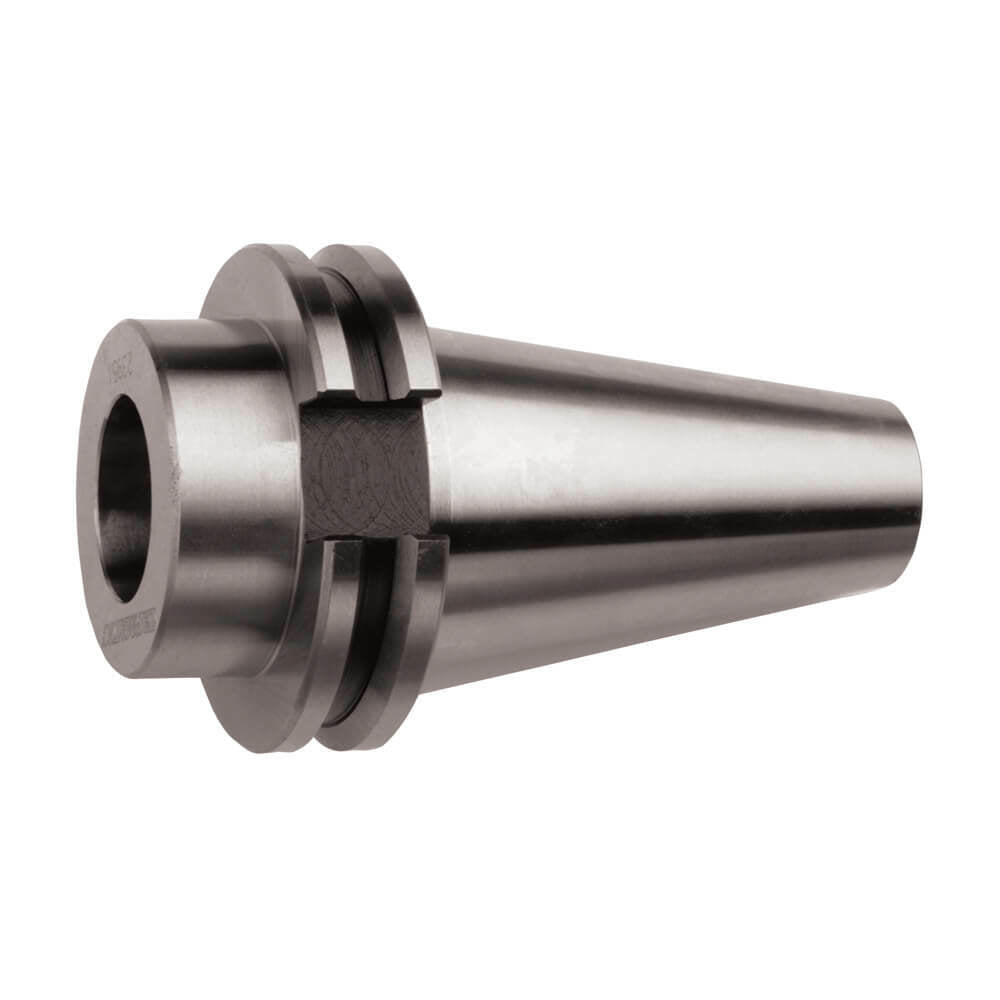

The Sutton Tapmatic Z130 BT arbor has a 25 mm bore for mounting the 25 mm straight shank (SS) Tapmatic tap holders in a BT-40 or BT-50 machine spindle. It is made in two sizes: BT-40 and BT-50.
It is used with the Z100, Z101, Z102 NSM6 and Z103 tap holders. A Z135 pull stud for the matching BT taper is listed as an accessory.
Where this product is used
- Mounting a Tapmatic tap holder in a BT-40 or BT-50 spindle on a machining centre
- Setting up CNC rigid tapping, tension and compression, or self-reversing tapping
- Keeping a dedicated tapping arbor for each holder
Design features
- 25 mm bore for 25 mm straight shank (SS) Tapmatic holders
- BT-40 and BT-50 sizes
- Used with the Z100, Z101, Z102 and Z103 tap holders
Sizes and item numbers
| Item no. | Size | Bore | Ref. code |
|---|---|---|---|
| Z1303943 | BT-40 | 25 mm | 23943 |
| Z1303945 | BT-50 | 25 mm | 23945 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Series | Z130 Tapmatic BT arbor |
| Bore | 25 mm |
| Sizes | BT-40, BT-50 |
Related Sutton threading products
Compare or complete your set-up with: Z100 Tapmatic Synchroflex tap holders, Z101 Synchroflex tap holders, Z102 NSM6 tension and compression tap holder, Z103 Tapmatic self-reversing tap holders, Z135 BT-40 and BT-50 pull studs.
