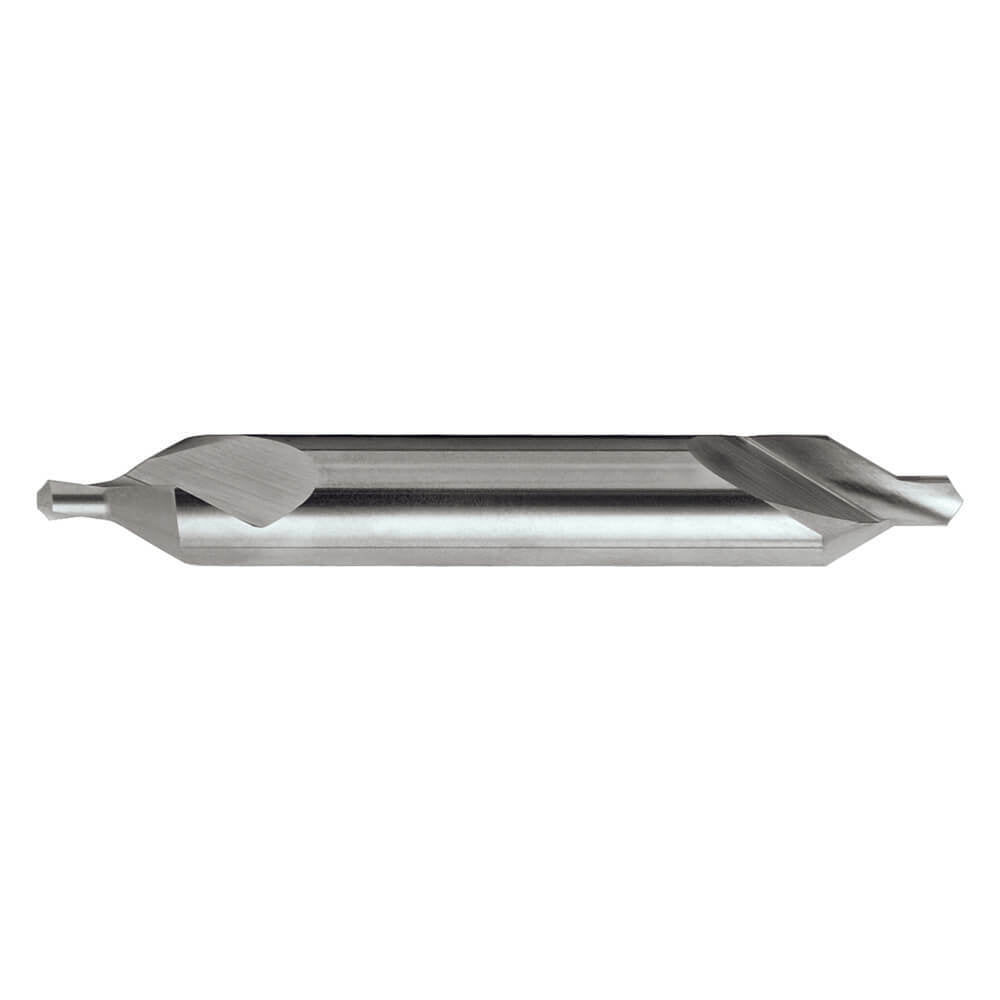

Sutton #7 Centre Drill Plain Type - 60° - HSS
Regular price
$80.55
Sale price
$80.55
Regular price
Inc. GST
Available

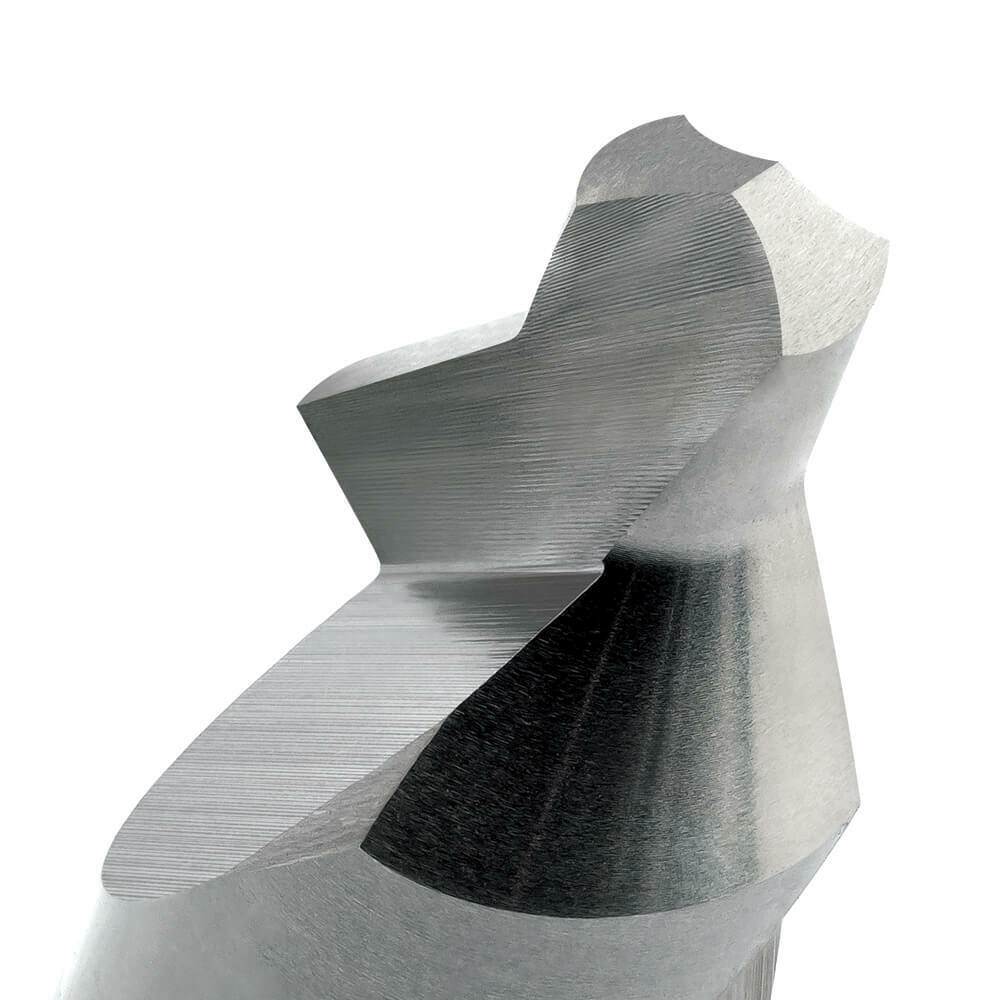

The Sutton D136 Plain Type centre drill is made from HSS with a bright finish, a 60° point and a stepped body, to ANSI B94-11. It is for drilling 60° centre holes in the end of shafts, giving accurate starting and centring for precision work.
This range has 8 sizes.
Where this product is used
- Drilling 60° centre holes in the ends of shafts, which is the use of centre drills.
- Accurate starting and centring for precision turning and grinding set-ups between centres.
- Starting small holes accurately before drilling. Carbide (VHM) centre drills are in the carbide drill section.
Sizes
Dimensions for the D136 plain-type range are catalogued in inches; millimetre equivalents are shown on each size.

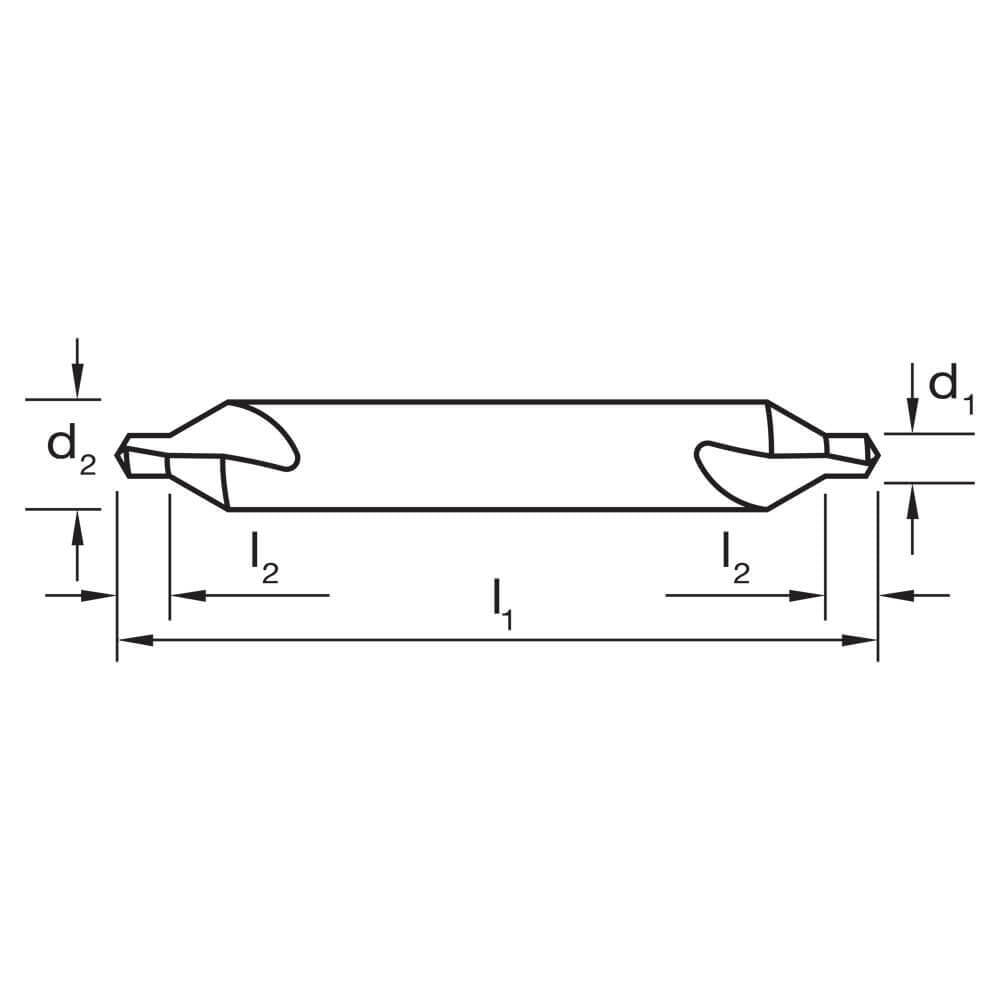

| Item | Size | Pilot Ø d1 | Overall l1 | l2 | Body Ø d2 |
|---|---|---|---|---|---|
| D136 0007 | 7 | 1/4 | 3-1/4 | 1/4 | 5/8 |
| D136 0004 | 4 | 1/8 | 2-1/8 | 1/8 | 5/16 |
| D136 0005 | 5 | 3/16 | 2-3/4 | 3/16 | 7/16 |
| D136 0001 | 1 | 3/64 | 1-1/4 | 3/64 | 1/8 |
| D136 0008 | 8 | 5/16 | 3-1/2 | 5/16 | 3/4 |
| D136 0002 | 2 | 5/64 | 1-7/8 | 5/64 | 3/16 |
| D136 0006 | 6 | 7/32 | 3 | 7/32 | 1/2 |
| D136 0003 | 3 | 7/64 | 2 | 7/64 | 1/4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D136 |
| Type | Plain Type centre drill |
| Material | High Speed Steel (HSS) |
| Finish | Bright |
| Point | 60° |
| Standard | ANSI B94-11 |
| Sizes | 8 |
Related drilling products
See also the Centre Drill Bit Sets collection and the centre drill bit guide, which covers centre drill types and sizes. Spot holes with the spotting drills.
