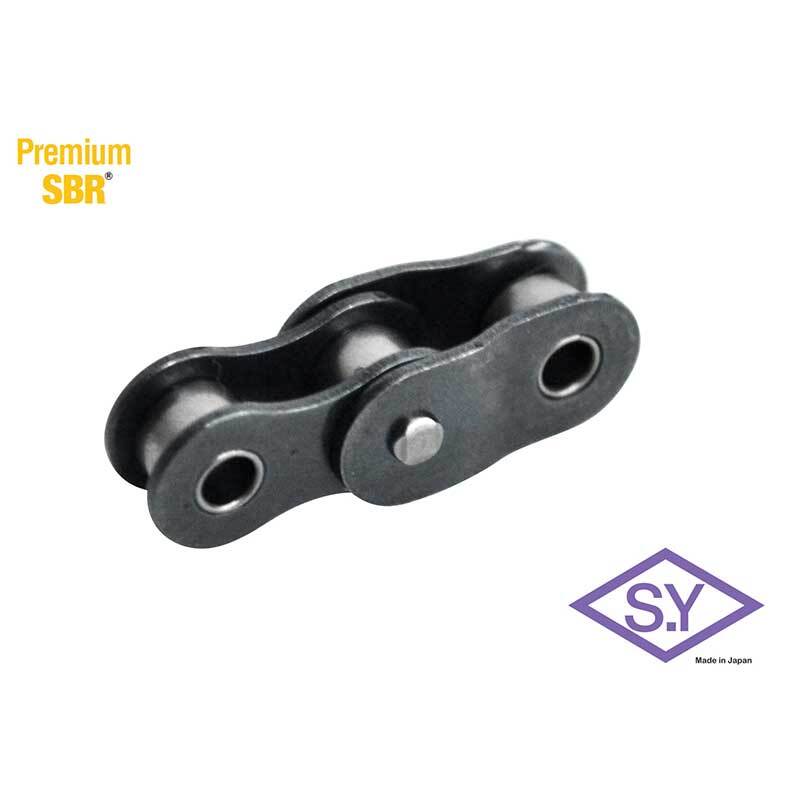

SY BS Roller Chain Offset Link (Half Link) Simplex 04, 6 mm Pitch
Available
SY offset links (half links) let a length of BS simplex roller chain be made up with an odd number of pitches. Each size here matches the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain. This listing is the SY BS Roller Chain Offset Link (Half Link) Simplex 04, 6mm Pitch: type Offset Link / Half Link, chain pitch 6mm, chain number 04-1, series SBR premium standard.
Supplied individually. This listing covers 1 size (04). Where possible, choose a chain length with an even number of pitches so that no offset link is needed.
Where this product is used
- Motor and gearbox chain drives
- Conveyors and material handling
- Agricultural and farm machinery
- Packaging and production-line machinery
- Replacing worn or broken chain on existing drives
Features
- Matched to the SY chain of the same number and series
- Makes up an odd number of pitches
- Supplied individually
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | SBR premium standard |
| Standard | BS (ISO 606) |
| Strands | Simplex |
| Component | Offset link (half link) |
| Chain sizes | 04 (1) |
| Pitch | 6 mm |
Available sizes
| Link | Pitch (mm) | Roller W (mm) | Pin dia (mm) | Plate H (mm) |
|---|---|---|---|---|
| 04-1 | 6 | - | - | - |
Selecting the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16 in (1/2 in), 12B is 12/16 in (3/4 in), 16B is 1 in. The figure after the dash is the number of strands.
SBR is the standard choice for most drives and conveyors. Step up to H, HE or SUP H where loads are heavy or shocked, or to Aqua-Proof, stainless steel or self-lube chain where the environment calls for it.
Fitting and use
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Related products
Matching connecting links: SY BS Roller Chain Connecting Link Simplex 04, 6 mm Pitch.
