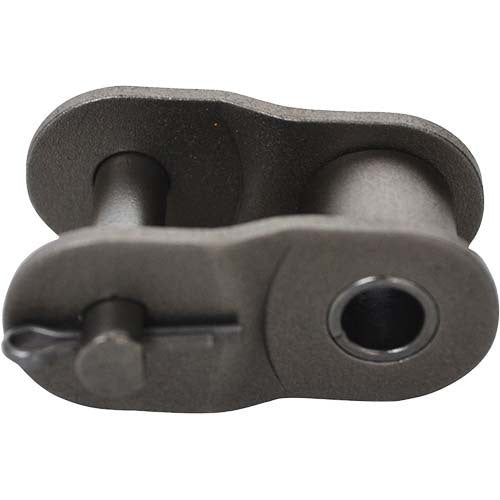

SY Self-Lube ASA Roller Chain Offset Link (Half Link)

• Sized to suit SY 60-1 SLR-TS, 3/4 in pitch
• Lets a chain be made up with an odd number of pitches
• The dynamic test load for a one-pitch offset link is 65% of the chain's maximum allowable load
• Plate height 17.5mm, pin diameter 5.95mm
• Supplied individually

Applications

• Drives and conveyors where regular relubrication is difficult
• Dry, clean-running machinery below about 70 °C
• Hard-to-reach chain drives

Specifications for A0156173

• Chain Number: 60
• Series: SLR self-lube
• Standard: ASA (ANSI)
• Strands: Simplex
• Component: Offset link (half link)
• Chain Pitch: 3/4"
• Suits Chain: SY 60-1 SLR-TS
• Pitch P (mm): 19.05
• Roller Width W (mm): 12.7
• Roller Diameter R (mm): 11.91
• Pin Diameter (mm): 5.95
• Pin Length LR (mm): 27.4
• Pin Length LC (mm): 29.8
• Pin Length L1 (mm): 13.7
• Pin Length L2 (mm): 16.1
• Plate Height H (mm): 17.5
