SY AL644 Leaf Chain Connecting Link, 4 x 4 Lacing, 3/4 in Pitch
Available
SY connecting links join the ends of a length of leaf chain into a continuous loop. Each size here is matched to the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain. This page covers the SY AL Series Leaf Chain Connecting Link AL644-AL1666, available in 6 chain number options: AL644, AL844, AL866, AL1066, AL1244, AL1666.
Made in Japan by Sugiyama Chain Co., Ltd. Supplied individually. This listing covers 6 sizes (AL644 to AL1666). AL leaf chain uses link plates of the same contour and thickness as the pin link plate of Sugiyama standard roller chain of the same pitch.
Where this product is used
- Lifting and balancing mechanisms with steady, low to medium loads
- Mast and counterweight arrangements
Features
- Matched to the SY chain of the same number and series
- Joins the chain ends into a continuous loop
- Made in Japan by Sugiyama Chain Co., Ltd
- Supplied individually
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | AL Series leaf chain |
| Component | Connecting link |
| Chain sizes | AL644 to AL1666 (6) |
| Pitch | 3/4 in to 2 in (19.05 to 50.8 mm) |
| Country of origin | Japan |
Available sizes

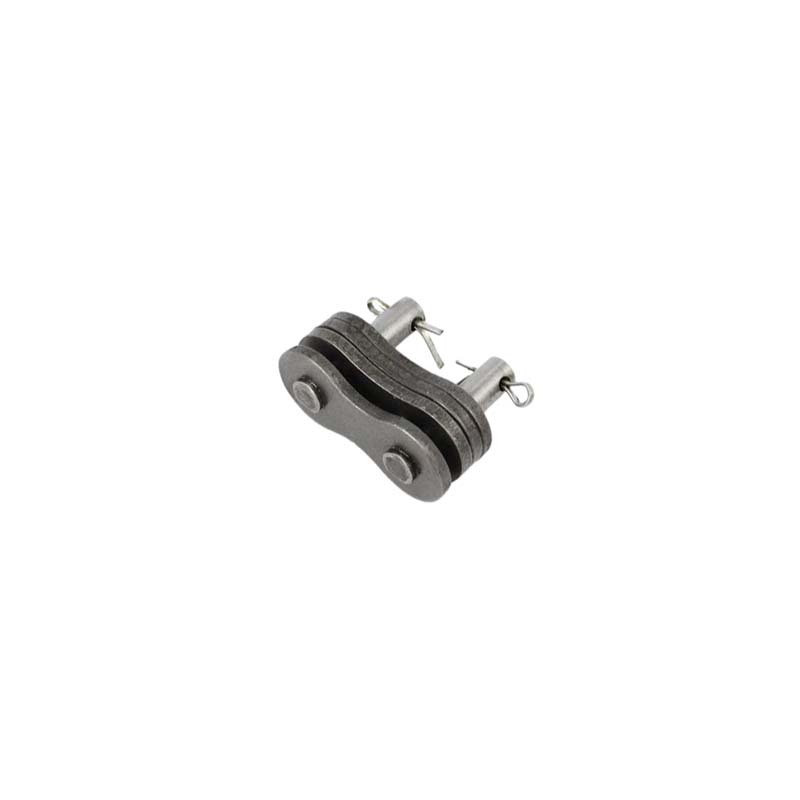

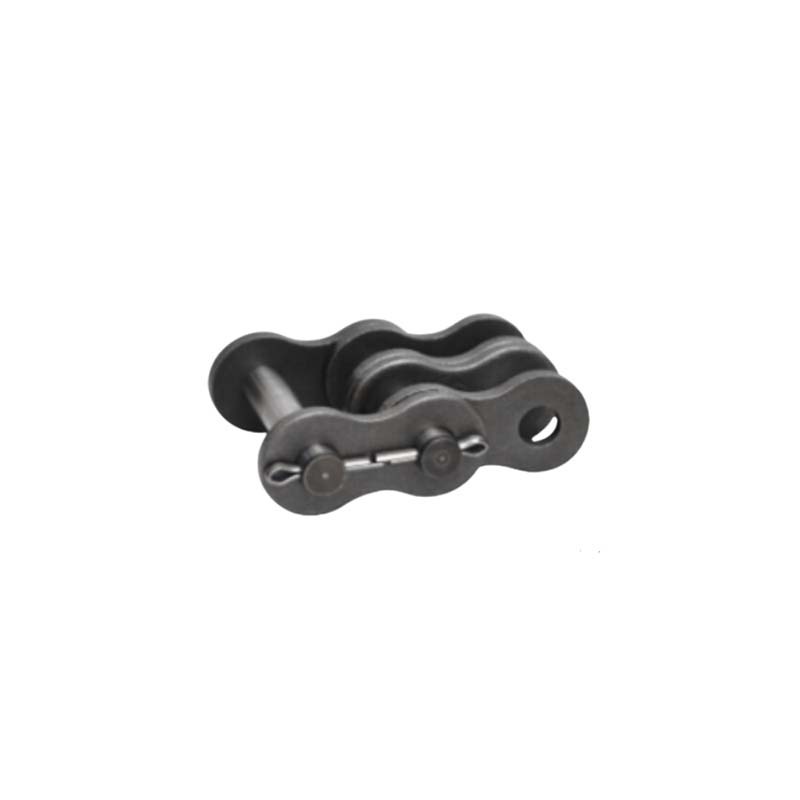

| Link | Lacing | Pitch (mm) | Pin dia (mm) | Plate H (mm) | Plate T (mm) |
|---|---|---|---|---|---|
| AL644 | 4 x 4 | 19.05 | 5.95 | 15.2 | 2.4 |
| AL844 | 4 x 4 | 25.4 | 7.93 | 20.2 | 3.2 |
| AL866 | 6 x 6 | 25.4 | 7.93 | 20.2 | 3.2 |
| AL1066 | 6 x 6 | 31.75 | 9.53 | 24.5 | 4 |
| AL1244 | 4 x 4 | 38.1 | 11.1 | 29.2 | 4.8 |
| AL1666 | 6 x 6 | 50.8 | 14.28 | 40.3 | 6.4 |
Selecting the right option
AL leaf chain suits steady, low to medium loads with little shock. Match pitch and lacing to your sheaves and anchor.
In Sugiyama's leaf chain numbers the leading digits give the pitch (in eighths of an inch) and the last two digits give the lacing, for example BL466 is 1/2 in pitch with 6 x 6 lacing.
Fitting and use
Fit the retaining clip or pin the way Sugiyama shows: spring clips go on with the closed end pointing the direction the chain runs, cotter pin prongs are opened to a 60 degree angle, and cotter pins must not be re-used. Use the clip or pin supplied with the link.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Related products
Matching chain: SY AL Series Leaf Chain AL644-AL1666, 10 ft Box. Matching pin links: SY AL Series Leaf Chain Pin Link AL644-AL1666.
