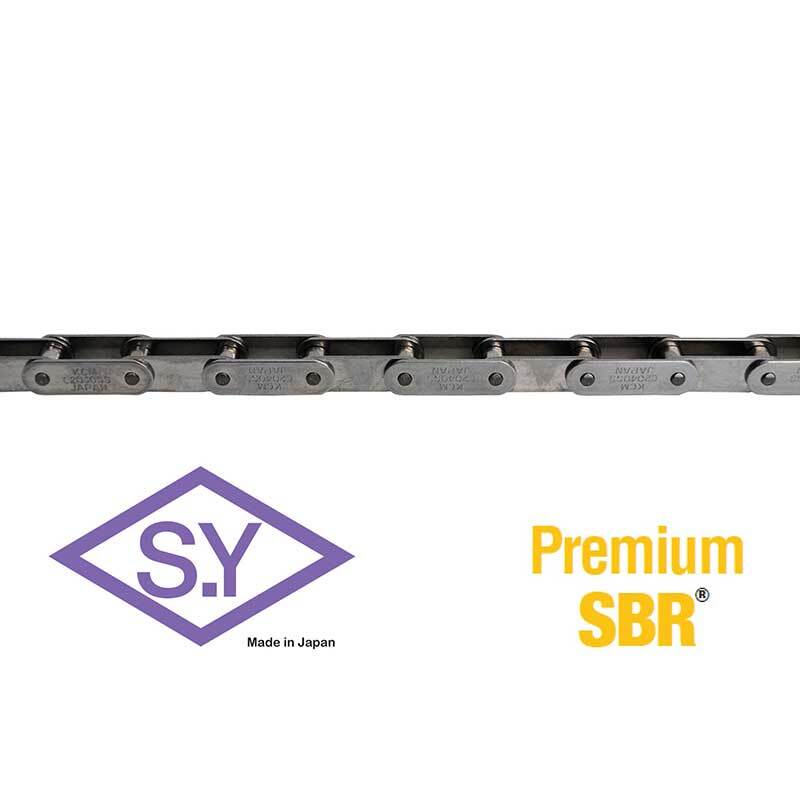

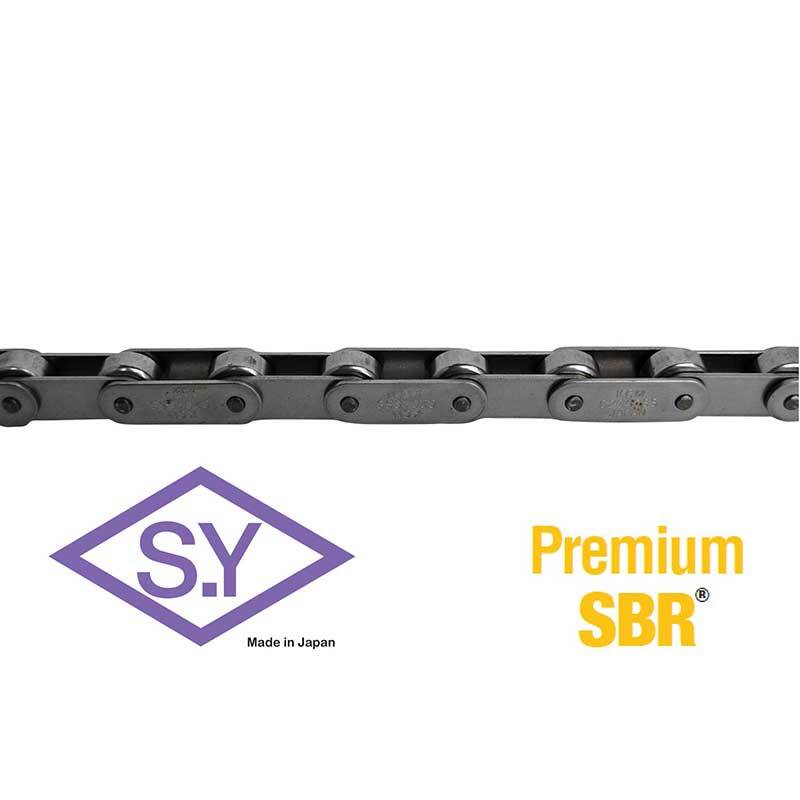

SY Roller Chain Double Pitch Stainless Steel

• Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
• This gives SY Chain a longer service life & a higher allowable maximum load.

About Stainless Steel Chains

• SS series stainless steel roller chains provide excellent corrosion protection against low or high temperature, acid, alkali, moisture, scale, oil and magnetism.
• SS series stainless steel roller chains are manufactured in accordance with the dimensions ANSI standards.
• "SS" type roller chains are used in highly corrosive or extreme temperature environments.
• All component parts of Sugiyama stainless steel roller chains are made of 304 stainless steel to achieve the utmost corrosion and temperature resistance.
• Stainless steel chains are not lubricated prior to delivery.
• It is recommended to lubricate stainless steel chains before use except when the chain is exposed to water.
• Stainless steel chains may suffer articulation problems in early stages if they are used without lubrication.
• Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.

Features

• +30% Higher Fatigue Strength- Higher safety factor is gained- Downsizing to the smaller chain is possible in some applications- Cost Savings
• The longest chain life- Significantly longer wear- Up to 2-3 times longer wear life over curled bushings- Reliable performance
