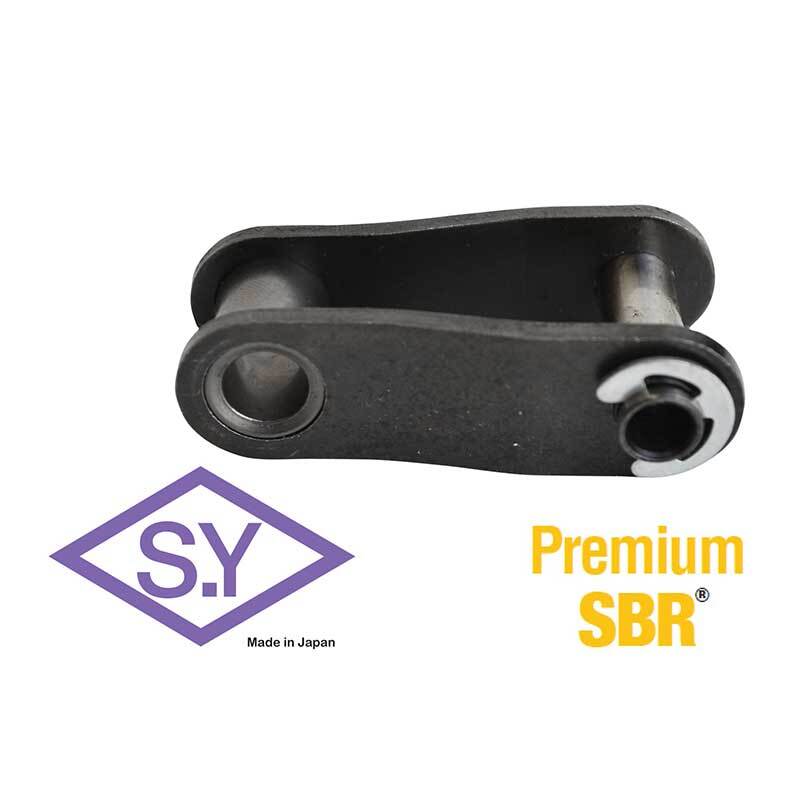

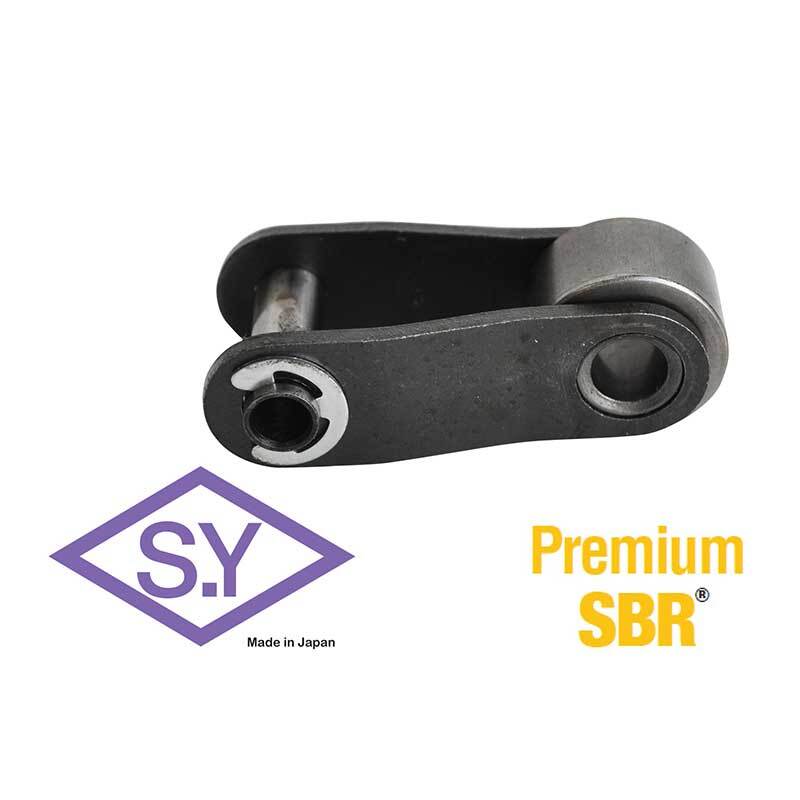

SY C2052 HP Hollow Pin ASA Double Pitch Roller Chain Offset Link (Half Link)
Available
SY offset links (half links) let a length of hollow pin ASA Double Pitch roller chain be made up with an odd number of pitches. Each size here matches the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain.
Made in Japan by Sugiyama Chain Co., Ltd. Supplied individually. This listing covers 4 sizes (C2050 to C2062). Where possible, choose a chain length with an even number of pitches so that no offset link is needed.
Where this product is used
- Conveyors that carry cross rods, pushers or attachments
- Jobs that need a hollow pin to take a rod or bolt
Features
- Matched to the SY chain of the same number and series
- Makes up an odd number of pitches
- Made in Japan by Sugiyama Chain Co., Ltd
- Supplied individually
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | HP hollow pin |
| Standard | ASA double pitch |
| Component | Offset link (half link) |
| Chain sizes | C2050 to C2062 (4) |
| Pitch | 1-1/4 in to 1-1/2 in (31.75 to 38.1 mm) |
| Country of origin | Japan |
Available sizes
| Link | Pitch (mm) | Roller W (mm) | Pin dia (mm) | Plate H (mm) |
|---|---|---|---|---|
| C2050 HP | 31.75 | 9.53 | 7.09 | 15 |
| C2052 HP | 31.75 | 9.53 | 7.09 | 15 |
| C2060 HP | 38.1 | 12.7 | 8.29 | 18.1 |
| C2062 HP | 38.1 | 12.7 | 8.29 | 18.1 |
Selecting the right option
Double pitch chain has twice the pitch of the matching standard chain. S roller types are standard rollers and R types are oversize carrier rollers.
Choose HP where the chain has to carry cross rods. The hollow pin lets rods be inserted without damaging the chain or the rod. It is a bushed chain without rollers.
Fitting and use
An offset link is handy where the chain needs an odd number of pitches, but Sugiyama notes it is at least 35% lower in fatigue strength than the chain itself and recommends against it where frequent impact loads at high speed are involved. A two-pitch offset link is available for that duty.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Related products
Matching chain: SY Hollow Pin ASA Double Pitch Roller Chain C2050-C2082, 10 ft Box. Matching connecting links: SY Hollow Pin ASA Double Pitch Roller Chain Connecting Link C2050-C2080.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
SY Hollow Pin ASA Double Pitch Roller Chain Offset Link (Half Link) C2050-C2062: C2052HP
SKU: A0158728 | Model: C2052HP-OL/SY
SY C2052 HP hollow pin ASA double pitch roller chain offset link, 1-1/4 in pitch. Made in Japan by Sugiyama.
