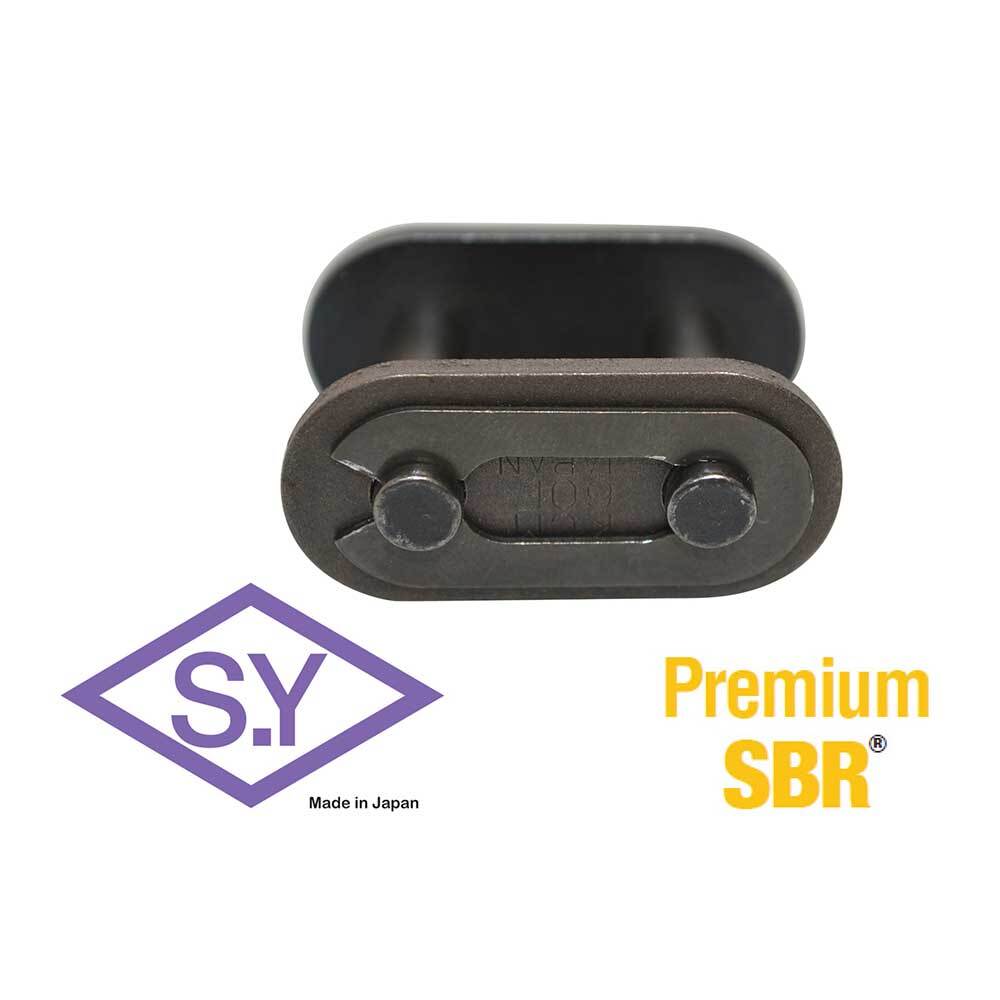

SY 60-1 F Straight Side Plate ASA Simplex Roller Chain Connecting Link, 3/4 in Pitch
Available
SY connecting links join the ends of a length of straight side plate ASA simplex roller chain into a continuous loop. Each size here is matched to the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain.
Made in Japan by Sugiyama Chain Co., Ltd. Supplied individually. This listing covers 2 sizes (60 to 80). F (Flat Sidebar) series chain has straight-edged side plates, suited to conveyors and to chain that slides along a surface.
Where this product is used
- Conveyors
- Chain that slides along a surface
- Conveyor-based machinery
Features
- Matched to the SY chain of the same number and series
- Joins the chain ends into a continuous loop
- Made in Japan by Sugiyama Chain Co., Ltd
- Supplied individually
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | F flat sidebar |
| Standard | ASA (ANSI) |
| Strands | Simplex |
| Component | Connecting link |
| Chain sizes | 60 to 80 (2) |
| Pitch | 3/4 in to 1 in (19.05 to 25.4 mm) |
| Country of origin | Japan |
Available sizes
| Link | Pitch (mm) | Roller W (mm) | Pin dia (mm) | Plate H (mm) |
|---|---|---|---|---|
| 60-1 F | 19.05 | 12.7 | 5.95 | 17.5 |
| 80-1 F | 25.4 | 15.88 | 7.93 | 23.4 |
Selecting the right option
For ASA (ANSI) chain the number is the pitch in eighths of an inch: 40 is 4/8 in (1/2 in), 60 is 6/8 in (3/4 in), 100 is 10/8 in (1-1/4 in). The figure after the dash is the number of strands.
Choose F where the chain will slide along a surface or run on a conveyor. The straight-edged plates give high fatigue resistance.
Fitting and use
Fit the retaining clip or pin the way Sugiyama shows: spring clips go on with the closed end pointing the direction the chain runs, cotter pin prongs are opened to a 60 degree angle, and cotter pins must not be re-used. Use the clip or pin supplied with the link.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Related products
Matching chain: SY Straight Side Plate ASA Roller Chain Simplex 60-80, 10 ft Box.
