Tanjant Plasma Cutting Guide Kit
Available
Tanjant Plasma Cutting Guide Kit is a complete guide kit for cutting circles and straight lines with a hand plasma torch. It cuts circles from 45mm (1-3/4") to 1050mm (41") in diameter, and a unique rotating bush lets you cut the circle from one position by turning the guide frame.
The kit includes a bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 plasma torches. A magnet pivot adds stability on steel, and a suction pivot is supplied for non-ferrous metals. The parts are CNC machined with brass forgings and stainless steel axles and rails, and spare parts are available.
Where this product is used
- Cutting circles in plate with a hand plasma torch
- Straight-line plasma cutting with the roller guide
- Workshop fabrication and repair of flanges, bases and round blanks
Features
- Cuts circles from 45mm to 1050mm in diameter
- Bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 torches
- Unique rotating bush cuts a circle from one position
- Holds optimum tip height at all times
- Magnet pivot for stability and suction pivot for non-ferrous metals
- CNC machined parts with brass forgings and stainless steel axles and rails
Key specifications
| Specification | Detail |
|---|---|
| Brand | Tanjant |
| Product type | Torch Cutting Guide |
| Type | Plasma circle and roller guide kit |
| Circle diameter | 45mm to 1050mm |
| Torch bush | Cebora P100/150, Tecmo T100/150, Trafimet A90/140/A101 |
| Pivots | Magnet pivot and suction pivot |
| Construction | CNC machined, brass forgings, stainless steel axles and rails |
| Part number | 96.CP2061 |

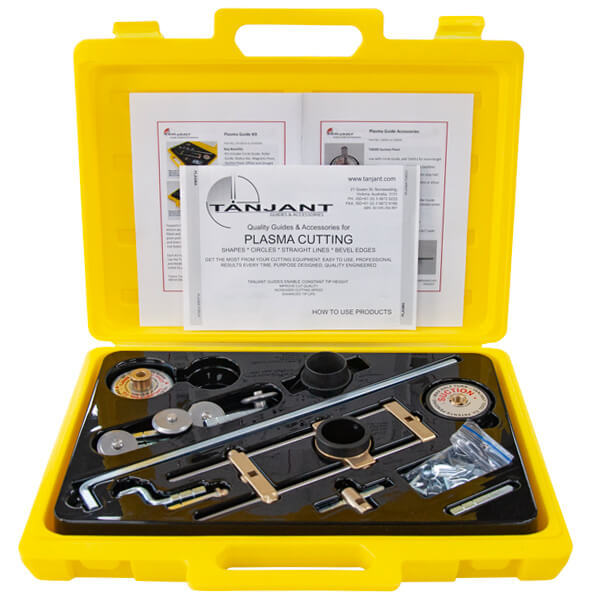

What is in the kit
- Circle cutting guide with rotating bush
- Bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 plasma torches
- Magnet pivot
- Suction pivot for non-ferrous metals
Choosing the right option
Check your plasma torch is one of the models the bush suits.
See also: Bossweld Plasma Circle Guide, Tanjant Circle Cutting Guide for Type 41/44 Gas Torches, Tanjant Gas Accessory Kit Complete.
