Tanjant Plasma Cutting Guide Kit | 96.CP2061

The Tanjant Plasma Cutting Guide Kit is a complete guide kit for cutting circles and straight lines with a hand plasma torch. It cuts circles from 45 mm (1-3/4 inch) to 1050 mm (41 inch) in diameter, and a unique rotating bush lets you cut the circle from one position by turning the guide frame.

The kit includes a bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 plasma torches. A magnet pivot adds stability on steel, and a suction pivot is supplied for non-ferrous metals. The parts are CNC machined with brass forgings and stainless steel axles and rails, and spare parts are available.

Where this product is used

• Cutting circles in plate with a hand plasma torch
• Straight-line plasma cutting with the roller guide
• Workshop fabrication and repair of flanges, bases and round blanks

Features

• Cuts circles from 45 mm to 1050 mm in diameter
• Bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 torches
• Unique rotating bush cuts a circle from one position
• Holds optimum tip height at all times
• Magnet pivot for stability and suction pivot for non-ferrous metals
• CNC machined parts with brass forgings and stainless steel axles and rails

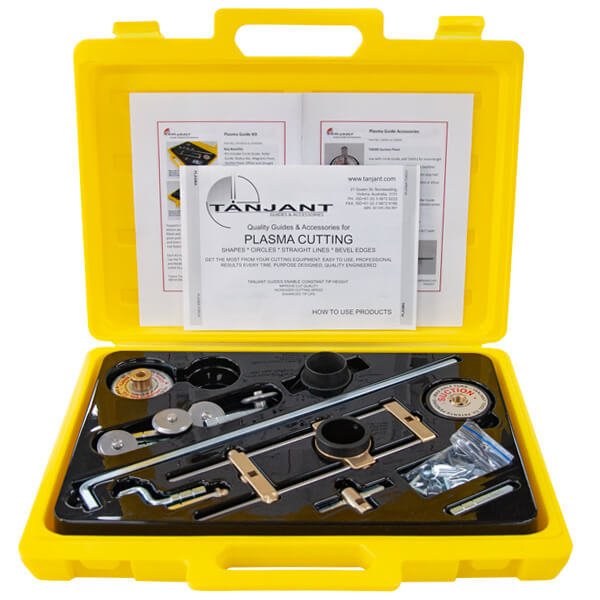

What is in the kit

• Circle cutting guide with rotating bush
• Bush to suit Cebora P100/150, Tecmo T100/150 and Trafimet A90/140/A101 plasma torches
• Magnet pivot
• Suction pivot for non-ferrous metals

Key specifications

Selecting the right option

Check your plasma torch is one of the models the bush suits. If you run a Bossweld LT-50 or PT-60 torch, see the Bossweld Plasma Circle Guide instead, or contact AIMS with the make and model of your torch and we will confirm the fit.
