Stenco 2A052T V Pulley, A Section, 5-1/2 in OD, Taper Lock 1215
Available

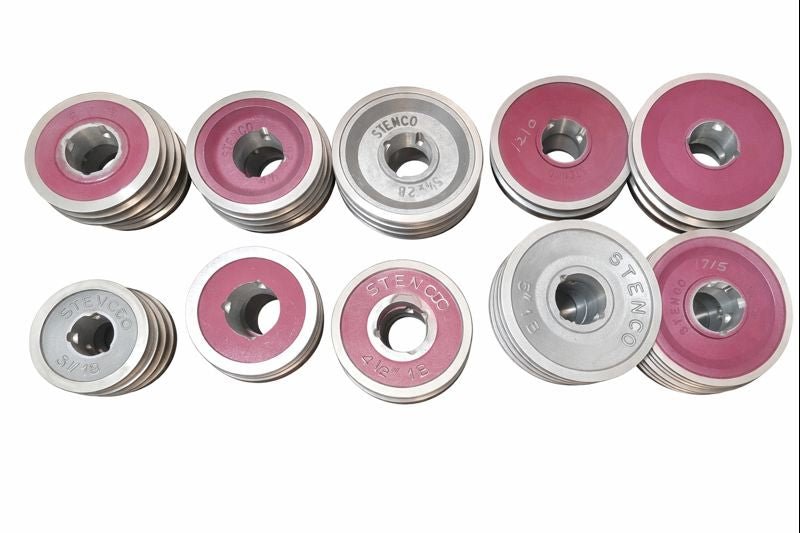

Image shown is for illustration purposes only.
This is a clearance item and is sold as-is. No returns or exchanges apply. Please contact us if you require further details or wish to inspect the item prior to purchase
Note: Pulleys are dirty and old, but they shouldn't affect performance.
These Stenco aluminium taper lock V pulleys are for A and B section V belts. The range here covers single and double groove pulleys with outside diameters from 3-1/2 in to 6 in (88.9 to 152.4 mm).
A taper lock pulley is fitted to the shaft with a taper lock bush. Three bush sizes are listed: 1108, 1210 and 1215. The bush is a separate part, so choose the one that matches your shaft.
Choose the pulley by belt section, number of grooves, outside diameter and bush size. Each model is listed below with its Stenco code.
Where this product is used
- V belt drives on industrial machinery
- Replacement pulleys for belt drives
- Drives where the pulley may need to be removed from the shaft
Features
- Aluminium taper lock V pulley for A and B section belts
- Single and double groove models
- Outside diameters from 3-1/2 in to 6 in (88.9 to 152.4 mm)
- Takes taper lock bush size 1108, 1210 or 1215
- The taper lock bush can be removed and refitted
- Stenco model codes such as 1B032T, 2B040T and 2A052T
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stenco |
| Product | Taper lock V pulley |
| Material | Aluminium |
| Belt section | A and B |
| Grooves | Single and double |
| Outside diameter | 3-1/2 to 6 in (88.9 to 152.4 mm) |
| Taper lock bush | 1108, 1210 and 1215 |
| Models | A: 2A052T; B: 1B032T, 1B040T, 1B042T, 1B050T, 1B052T, 1B060T, 2B040T, 2B042T, 2B052T |
Models
| Model | Section | Grooves | Outside diameter (in) | Outside diameter (mm) | Taper lock bush |
|---|---|---|---|---|---|
| 1B032T | B | 1 | 3-1/2 | 88.9 | 1108 |
| 1B040T | B | 1 | 4 | 101.6 | 1210 |
| 1B042T | B | 1 | 4-1/2 | 114.3 | 1210 |
| 1B050T | B | 1 | 5 | 127 | 1210 |
| 1B052T | B | 1 | 5-1/2 | 139.7 | 1210 |
| 1B060T | B | 1 | 6 | 152.4 | 1210 |
| 2A052T | A | 2 | 5-1/2 | 139.7 | 1215 |
| 2B040T | B | 2 | 4 | 101.6 | 1215 |
| 2B042T | B | 2 | 4-1/2 | 114.3 | 1215 |
| 2B052T | B | 2 | 5-1/2 | 139.7 | 1215 |
Selecting and fitting
Match the belt section (A or B) to your belt and check the number of grooves. Check the taper lock bush size listed for the model, and make sure the bush bore range covers your shaft diameter.
Dimensions are as listed by AIMS for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
