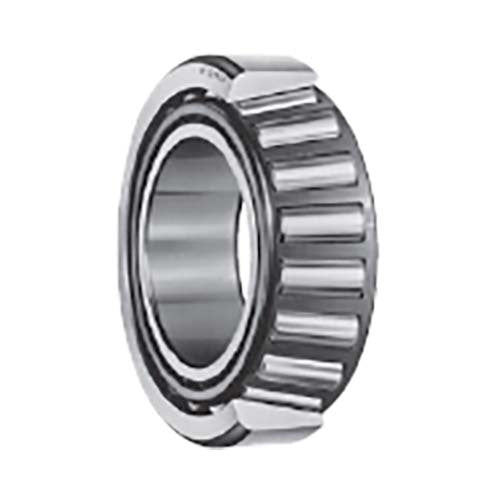

Koyo/JTEKT 32204JR Tapered Roller Bearing - Metric 20 x 47 x 19.25mm

$31.57
$31.57
Inc. GST

Available

Koyo/JTEKT 32204JR. Combined load: handles radial and axial in one bearing. 32200 series matches OEM tapered roller specs. Open type, grease as commissioned. Tapered Roller Bearing Metric - 32200 Series is the bearing for wheel hubs, gearbox output shafts and any duty with combined radial and axial loading.

Product Specifications. Bearing type: Tapered roller bearing. Series: 32200. Load type: Combined radial + axial. Construction: Separable. Sealing: Open.

Available Sizes

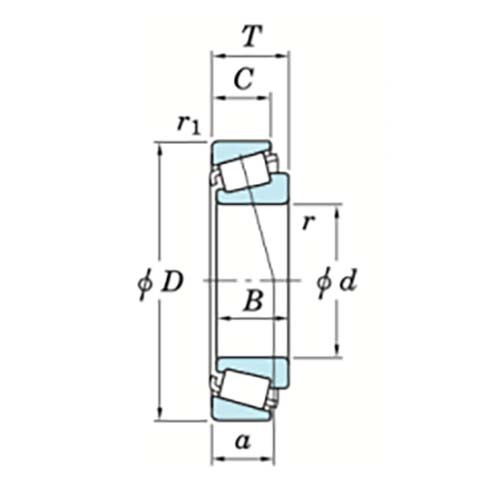

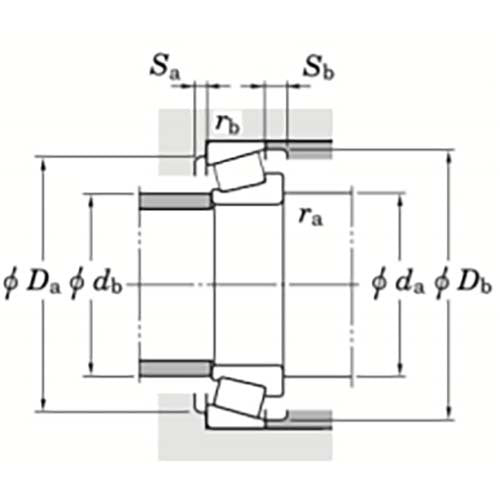

Constant E Limiting Speed (min-1) Lub. Oil Bearing Width B (mm) Mounting Dimension (mm) Rb Max. Bore Diameter x Outer Diameter x Width (mm) Mounting Dimension (mm) Sb Min. Basic Load Rating (kN) Cr Bearing Width T (mm) Boundary Dimension (mm) r1 min. Mounting Dimension (mm) Sa Min. Boundary Dimension (mm) C Fatigue Load Limit (kN) Cu Outside Diameter D (mm) Bore Diameter d (mm) Load Center (mm) A Mounting Dimension (mm) Ra Max. Mounting Dimension (mm) Da Min. Axial Load Factor Y0 Mounting Dimension (mm) Db Min. Basic Load Rating (kn)c0r Axial Load Factor Y1 Mounting Dimension (mm) Db Max. Mounting Dimension (mm) Da Max. Mounting Dimension (mm) Da Min Limiting Speed (min-1) Grease Iub Boundary Dimension (mm) r min.
0.33 12000 18 1 20 x 47 x 19.25 4 41.4 19.25 1 2 15 4.9 47 20 12.5 1 25.5 1 43 34.7 1.81 27 41.5 39 8900 1
0.36 11000 18 1 25 x 52 x 19.25 4 49.7 19.25 1 2 16 6.35 52 25 13.5 1 30.5 0.92 48 44.8 1.67 31 46.5 43 7900 1
0.37 8700 20 1 30 x 62 x 21.25 4 63.3 21.25 1 2 17 8.4 62 30 15.9 1 35.5 0.88 58 57.9 1.6 37 56.5 52 6500 1
0.37 7500 23 1.5 35 x 72 x 24.25 5 86.9 24.25 1.5 3 19 12.2 72 35 18.2 1.5 43.5 0.88 67 82.4 1.6 43 63.5 61 5600 1.5
0.37 6600 23 1.5 40 x 80 x 24.75 5.5 97 24.75 1.5 3 19 13.6 80 40 19.4 1.5 48.5 0.88 75 90.8 1.6 48 71.5 68 5000 1.5
0.4 6100 23 1.5 45 x 85 x 24.75 5.5 105 24.75 1.5 3 19 15.6 85 45 20.3 1.5 53.5 0.81 81 104 1.48 53 76.5 73 4600 1.5
0.42 5700 23 1.5 50 x 90 x 24.75 5.5 106 24.75 1.5 3 19 15.9 90 50 20.6 1.5 58.5 0.79 85 105 1.43 58 81.5 78 4300 1.5
0.4 5200 25 1.5 55 x 100 x 26.75 5.5 134 26.75 1.5 4 21 20.5 100 55 23 2 65 0.81 95 133 1.48 63 90 87 3900 2
0.4 4700 28 1.5 60 x 110 x 29.75 5.5 164 29.75 1.5 4 24 25.9 110 60 25.1 2 70 0.81 104 167 1.48 69 100 95 3500 2
0.4 4300 31 1.5 65 x 120 x 32.75 5.5 196 32.75 1.5 4 27 31.7 120 65 26.6 2 75 0.81 115 203 1.48 76 110 104 3200 2
0.42 4100 31 1.5 70 x 125 x 33.25 6 212 33.25 1.5 4 27 35.2 125 70 29.2 2 80 0.79 119 225 1.43 80 116.5 108 3100 2
0.44 3900 31 1.5 75 x 130 x 33.25 6 218 33.25 1.5 4 27 36.4 130 75 30.2 2 85 0.76 125 234 1.38 85 121.5 114 2900 2
0.42 3600 33 2 80 x 140 x 35.25 7 253 35.25 2 4 28 41.5 140 80 31.7 2 92 0.79 134 271 1.43 90 130 122 2700 2.5
0.42 3400 36 2 85 x 150 x 38.5 8.5 290 38.5 2 5 30 47.5 150 85 34.2 2 97 0.79 142 315 1.43 96 140 130 2500 2.5
0.42 3200 40 2 90 x 160 x 42.5 8.5 329 42.5 2 5 34 53.7 160 90 37 2 102 0.79 152 362 1.43 102 150 138 2400 2.5
0.42 3000 43 2 95 x 170 x 45.5 8.5 389 45.5 2.5 5 37 64.1 170 95 38.9 2.5 109 0.79 161 439 1.43 108 158 145 2200 3
0.42 2800 46 2 100 x 180 x 49 10 435 49 2.5 5 39 63.9 180 100 42.1 2.5 114 0.79 171 495 1.43 114 168 154 2100 3
0.42 2700 50 2 105 x 190 x 53 10 490 53 2.5 6 43 73 190 105 44.8 2.5 119 0.79 180 567 1.43 120 178 161 2000 3
0.42 2500 53 2 110 x 200 x 56 10 547 56 2.5 6 46 80.4 200 110 46.7 2.5 124 0.79 190 640 1.43 126 188 170 1900 3
0.44 2300 58 2 120 x 215 x 61.5 11.5 589 61.5 2.5 7 50 84 215 120 51.6 2.5 134 0.76 204 691 1.38 136 203 181 1700 3
0.44 2200 64 2.5 130 x 230 x 67.75 13.5 693 67.75 3 7 54 99.9 230 130 56 3 148 0.76 219 830 1.38 146 216 193 1600 4
0 2000 68 2.5 140 x 250 x 71.75 13.5 796 71.75 3 9 58 112 250 140 60 3 158 0.76 238 961 1.38 158 236 210 1500 4
0 1800 73 2.5 150 x 270 x 77 17 881 77 3 8 60 122 270 150 65.2 3 168 0.76 254 1070 1.38 170 256 226 1300 4

Where This Is Used

  • Automotive: Front and rear wheels, transmissions, differential pinion.
  • Off-Highway Vehicles: Railroad, Construction, and Agricultural equipment.
  • Industrial: Rolling mill equipment, gear boxes, and machine tool spindles.

Features

  • Features of Spherical Roller Bearings.
  • The inner ring assembly of a tapered roller is referred to as the cone, while the outer ring is called the cup.
  • Tapered rollers are guided by the cone back face rib.
  • This bearing design is suitable for heavy radial loading and a sizeable amount of axial loading.
  • The taper of the rollers and the cone raceways have a common apex on the bearing axis.
  • The angle between the cup raceway and the bearing axis is the contact angle.
  • The larger the contact angle the greater the bearings axial load capacity.
  • The cone and cup are separable simplifying bearing mounting.
  • Single row bearings can accommodate radial load and axial load in one direction.
  • Two single row bearings are used opposing each other to simplify setting of the proper clearance between the two rows.
  • The two row design can handle radial load and an axial load in either direction.
  • The two row design is available as a TDO (double outer race), or a TDI (double inner race).
  • Two row taper designs are normally supplied with spacers to provide a pre-adjusted assembly.
  • The four row design is commonly used on rolling mill roll necks for their large load carrying capacity.
  • Cages used can be a pressed steel or a pin type.
  • Cage types can be pressed steel, machined copper alloy.
Product Highlights −
  • Combined load: handles radial and axial in one bearing
  • 32200 series matches OEM tapered roller specs
  • Open type, grease as commissioned

Tapered Roller Bearing Metric - 32200 Series is the bearing for wheel hubs, gearbox output shafts and any duty with combined radial and axial loading.

Resources

File icon
KOYO-Ball-_-Roller-Bearing-Catalogue
File icon
KOYO-Bearing-Specifications-Table-Catalogue
File icon
KOYO-Premium-Bearing-Catalogue
Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 20 x 47 x 19.25mm bearing
    Model Number: 32204JR/KOYO
  • 25 x 52 x 19.25mm bearing
    Model Number: 32205JR/KOYO
  • 30 x 62 x 21.25mm bearing
    Model Number: 32206JR/KOYO
  • 35 x 72 x 24.25mm bearing
    Model Number: 32207JR/KOYO
  • 40 x 80 x 24.75mm bearing
    Model Number: 32208JR/KOYO
  • 45 x 85 x 24.75mm bearing
    Model Number: 32209JR/KOYO
  • 50 x 90 x 24.75mm bearing
    Model Number: 32210JR/KOYO
  • 55 x 100 x 26.75mm bearing
    Model Number: 32211JR/KOYO
  • 60 x 110 x 29.75mm bearing
    Model Number: 32212JR/KOYO
  • 65 x 120 x 32.75mm bearing
    Model Number: 32213JR/KOYO
  • 70 x 125 x 33.25mm bearing
    Model Number: 32214JR/KOYO
  • 75 x 130 x 33.25mm bearing
    Model Number: 32215JR/KOYO
  • 80 x 140 x 35.25mm bearing
    Model Number: 32216JR/KOYO
  • 85 x 150 x 38.5mm bearing
    Model Number: 32217JR/KOYO
  • 90 x 160 x 42.5mm bearing
    Model Number: 32218JR/KOYO
  • 95 x 170 x 45.5mm bearing
    Model Number: 32219JR/KOYO
  • 100 x 180 x 49mm bearing
    Model Number: 32220JR/KOYO
  • 105 x 190 x 53mm bearing
    Model Number: 32221JR/KOYO
  • 110 x 200 x 56mm bearing
    Model Number: 32222JR/KOYO
  • 120 x 215 x 61.5mm bearing
    Model Number: 32224JR/KOYO
  • 130 x 230 x 67.75mm bearing
    Model Number: 32226JR/KOYO
  • 140 x 250 x 71.75mm bearing
    Model Number: 32228JR/KOYO
  • 150 x 270 x 77mm bearing
    Model Number: 32230JR/KOYO
