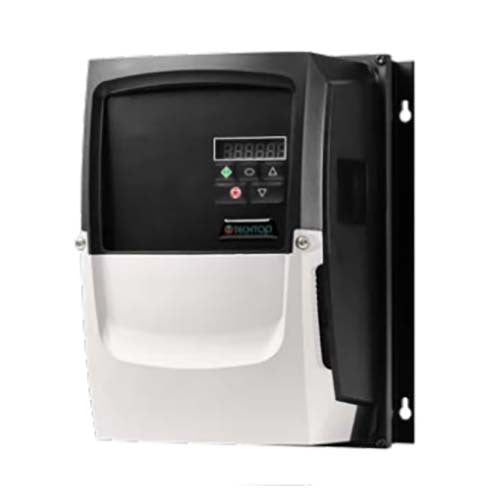

TECDrive AC Variable Frequency Drive 1 Phase 200-240V E3 IP66 Non-Switched
TECDrive AC Variable Frequency Drive (VFD) is an easy to use general-purpose drive that provides simplicity of installation, connection, and commissioning, allowing the user to benefit from the precise motor control and energy savings within minutes.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
- Focused on ease of use
- Provides unrivalled simplicity of installation, connection and commissioning
- Precise motor control and energy savings within minutes.
- Simple commissioning - Just 14 basic parameters for rapid set-up
- Application Macros: Switch between Industrial, Pump & Fan modestooptimiseTECDrive VFD for your application.
- Intuitive Keypad Control- Precise digital control at the touch of a button.
- Sensorless Vector control for all motor types
- Precise and reliable control for all motor types IE2, IE3 & IE4 motors
- Compact robust and reliable general-purpose drive
- Internal PI control
- Internal brake chopper
- Dualanalogueinputs
- Operates in ambient temperatures up to 50°C
- Bluetooth connectivity
- With 2 x RJ45 ports which eliminate the need for a splitter.
- Easily accessible EMC disconnect
- Easy to wire due to the large, accessible chamber and removable gland plate.
- Option for control of singlephase motors
- Modbus RTU and Canopen on-board as standard
- Internal C1 category EMC Filter according to EN61800-3:2004
- IP66 is suitable for mounting externally with many mounting options
IP66 Key Features:
- Enclosed drives for direct machine mounting
- Dust-tight design Install directly on your processing equipment Guaranteed protection from dust and contaminants
- Ready for washdown duty With a sealed ABS enclosure and corrosion-resistant heatsink, the TECDrive IP66 is ideal for high-pressure washdown and applications Coated heatsink based operations requiring washdowns such as food and beverage
- Outdoor Rated Built with tough polycarbonate plastics specifically chosen to withstand degredation by ultra violet (UV), greases, oils and acids. Also robust enough not to be brittle at -20°C
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
TECDrive AC Variable Frequency Drive 1 Phase 200-240V E3 IP66 Non-Switched
TECDrive AC Variable Frequency Drive 1 Phase 200-240V E3 IP66 Non-Switched
SKU: A0164608
Type: Variable Frequency Drive
- Wide Range
- Reliable Services
- Proven Trust
Available
The TECDrive AC Variable Frequency Drive 1 Phase 200-240V E3 IP66 Non-Switched by Invertek is a Variable Frequency Drive with a sealed ABS enclosure. It offers 1 Phase 200-240V and is suitable for pump and fan applications.
