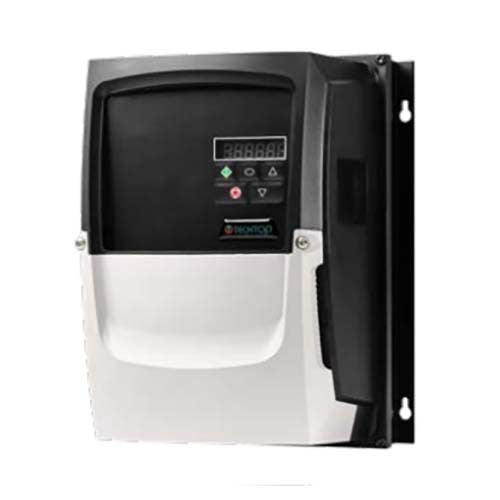

TECDrive AC Variable Frequency Drive 3 Phase 380-480V E3 IP66 Non-Switched

TECDrive AC Variable Frequency Drive (VFD) is an easy to use general-purpose drive that provides simplicity of installation, connection, and commissioning, allowing the user to benefit from the precise motor control and energy savings within minutes.

• Focused on ease of use
• Provides unrivalled simplicity of installation, connection and commissioning
• Precise motor control and energy savings within minutes.
• Simple commissioning - Just 14 basic parameters for rapid set-up
• Application Macros: Switch between Industrial, Pump & Fan modestooptimiseTECDrive VFD for your application.
• Intuitive Keypad Control- Precise digital control at the touch of a button.
• Sensorless Vector control for all motor types
• Precise and reliable control for all motor types IE2, IE3 & IE4 motors
• Compact robust and reliable general-purpose drive
• Internal PI control
• Internal brake chopper
• Dualanalogueinputs
• Operates in ambient temperatures up to 50°C
• Bluetooth connectivity
• With 2 x RJ45 ports which eliminate the need for a splitter.
• Easily accessible EMC disconnect
• Easy to wire due to the large, accessible chamber and removable gland plate.
• Option for control of singlephase motors
• Modbus RTU and Canopen on-board as standard
• Internal C1 category EMC Filter according to EN61800-3:2004
• IP66 is suitable for mounting externally with many mounting options

IP66 Key Features:

• Enclosed drives for direct machine mounting
• Dust-tight design Install directly on your processing equipment Guaranteed protection from dust and contaminants
• Ready for washdown duty With a sealed ABS enclosure and corrosion-resistant heatsink, the TECDrive IP66 is ideal for high-pressure washdown and applications Coated heatsink based operations requiring washdowns such as food and beverage
• Outdoor Rated Built with tough polycarbonate plastics specifically chosen to withstand degredation by ultra violet (UV), greases, oils and acids. Also robust enough not to be brittle at -20°C
