TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.
TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.
All TechTop TAIB series electric motors are fitted with an emergency hand release.
As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.
- Aluminium Body
- Wattage: 5.5kW
- Poles: 4
- Power: Three Phase (415V)
- Mounting: Foot(B3)
- Frame: 132 S
- RPM: 1460
- Shaft: 38mm
- Full Load Amperage (FLA): 11A
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

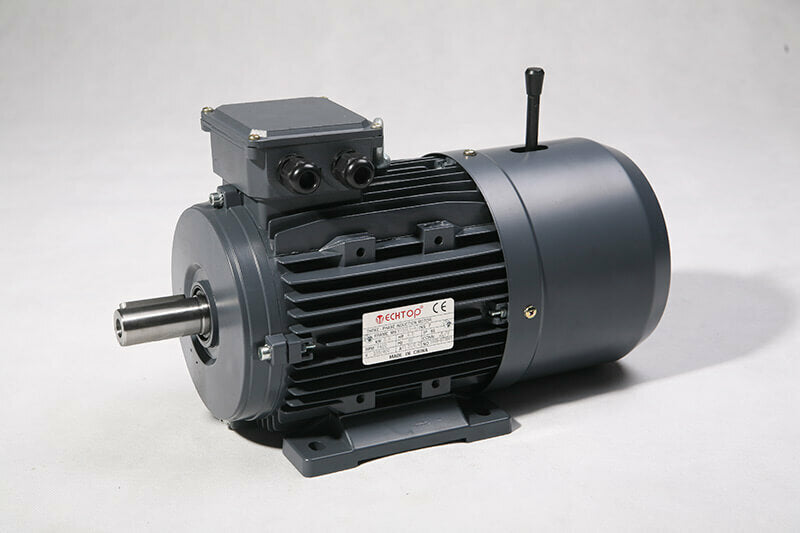

TechTop 5.5kW 7 HP Motor 415V 3 Phase 4 Pole, 1460 RPM, Foot Mount TA4B055 3TAIBHR
TechTop 5.5kW 7 HP Motor 415V 3 Phase 4 Pole, 1460 RPM, Foot Mount TA4B055 3TAIBHR
SKU: A0098898
Type: Three Phase with Brake
- Wide Range
- Reliable Services
- Proven Trust
Available
The TechTop 5.5kW motor is a 415V three-phase unit, ideal for industrial applications. It features an Intorq brand brake that activates when power is cut, ensuring safety. With a speed of 1460 RPM and a lightweight aluminium body, it offers optimal performance.
