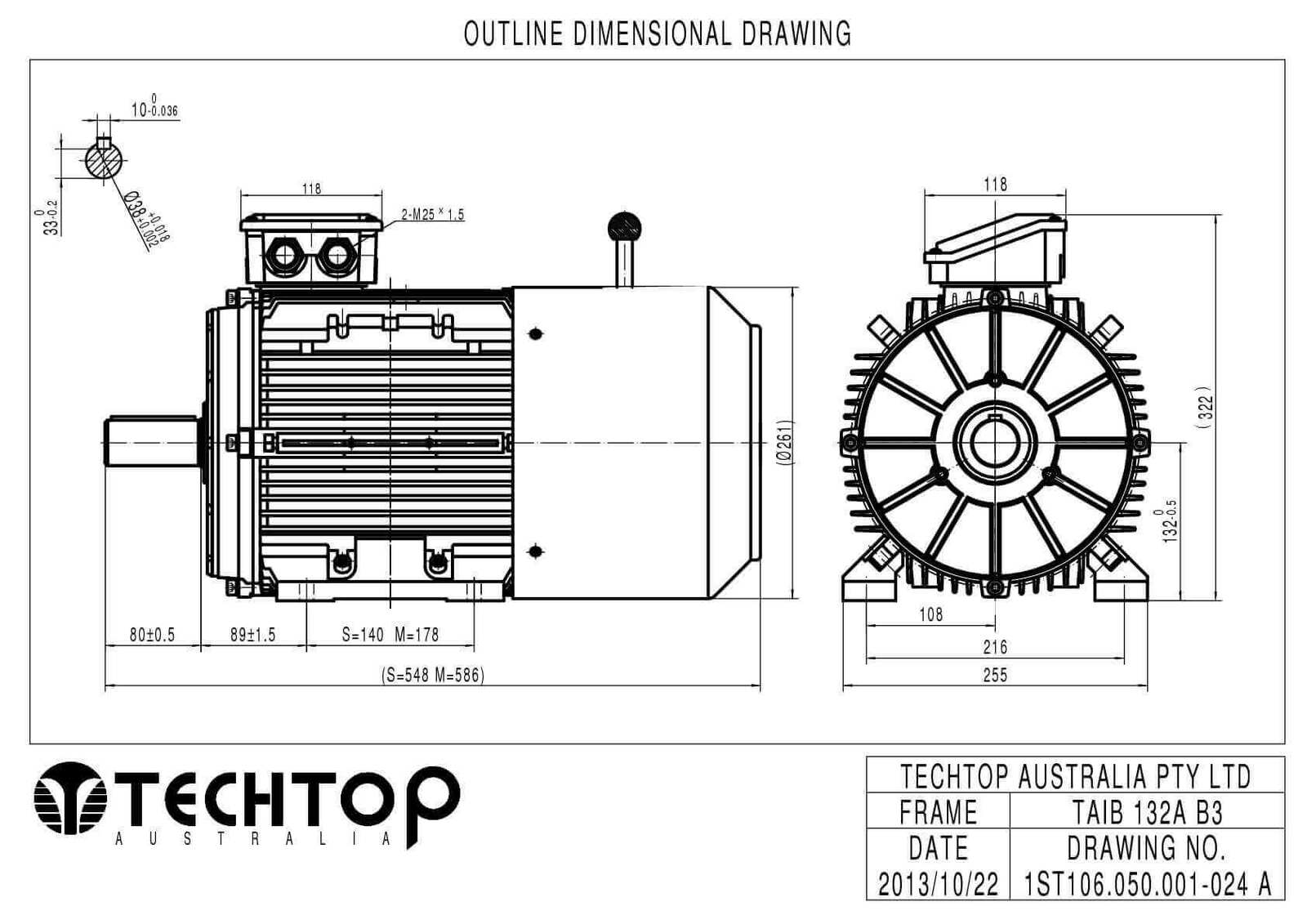

techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing
techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing2
techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing3
TechTop 415V Three Phase Aluminium Motors (TAI-BHR) - 415Vt Hreephase Aluminiummotor Tai Bhr Foot Flange
TechTop 415V Three Phase Aluminium Motors (TAI-BHR) - 415Vt Hreephase Aluminiummotor Tai Bhr Flange Mount
TechTop 415V Three Phase Aluminium Motors (TAI-BHR)
techtop-415vt-hreephase-aluminiummotor-tai-bhr
techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing
techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing2
techtop-415vt-hreephase-aluminiummotor-tai-bhr-drawing3
TechTop 415V Three Phase Aluminium Motors (TAI-BHR) - 415Vt Hreephase Aluminiummotor Tai Bhr Foot Flange
TechTop 415V Three Phase Aluminium Motors (TAI-BHR) - 415Vt Hreephase Aluminiummotor Tai Bhr Flange Mount
TechTop 415V Three Phase Aluminium Motors (TAI-BHR)

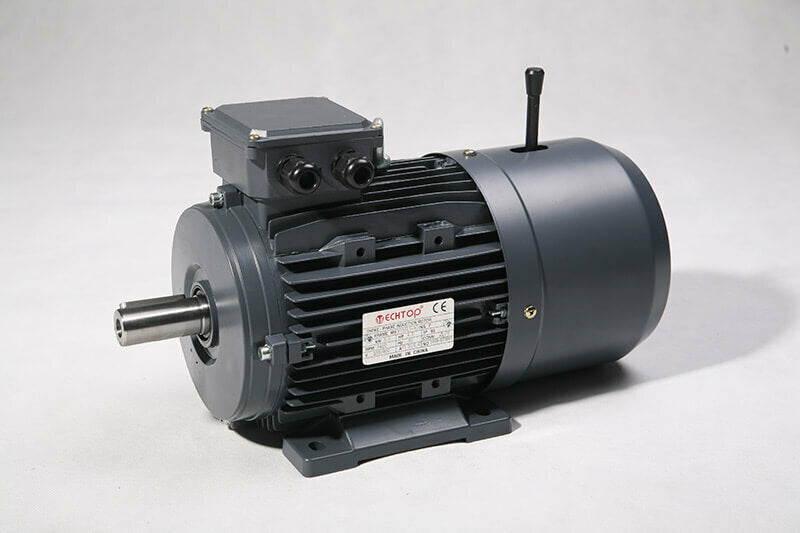

TechTop 1.1kW 1 1/2 HP Motor 415V 3 Phase 4 Pole 1420 RPM

$1,305.08
$1,305.08
Inc. GST

Available

◆Three-Phase 415V Power
●Fail-Safe DC Brake
▲Lightweight Aluminium Frame

Spanning 0.18kW to 7.5kW, this 3 phase motor range is fitted with an Intorq DC brake that engages on power loss to hold the load safely. Based on the lightweight TAI aluminium range and running on 415V three-phase, every brake motor includes an emergency hand release as standard. The range suits hoists, conveyors and machinery that needs controlled, reliable stopping.
Product Highlights −
  • 0.18kW to 7.5kW, three-phase 415V
  • Intorq DC brake, fail-safe (engages on power loss)
  • Emergency hand release fitted as standard

The TAIB brake series is based on the TAI aluminium range, fitted with a fail-to-safe DC brake. The brake engages automatically when power is removed, holding the load until power returns.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 1.1kW / 1.48HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B011 3TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4B011BTAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0116TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0118TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B5 Flangemm three phase motor
    Model Number: TA4B0115TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B5R Flangemm three phase motor
    Model Number: TA4B011ATAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B14A Flangemm three phase motor
    Model Number: TA4B0117TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B14B Flangemm three phase motor
    Model Number: TA4B0119TAIBHR
  • 1.1kW / 1.48HP (B) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0114TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B015 3TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4B015BTAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0156TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0158TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B5 Flangemm three phase motor
    Model Number: TA4B0155TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B5R Flangemm three phase motor
    Model Number: TA4B015ATAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B14A Flangemm three phase motor
    Model Number: TA4B0157TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B14B Flangemm three phase motor
    Model Number: TA4B0159TAIBHR
  • 1.5kW / 2.01HP (B) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0154TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4A018 3TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4A018BTAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0186TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0188TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B5 Flangemm three phase motor
    Model Number: TA4A0185TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B5R Flangemm three phase motor
    Model Number: TA4A018ATAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B14A Flangemm three phase motor
    Model Number: TA4A0187TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B14B Flangemm three phase motor
    Model Number: TA4A0189TAIBHR
  • 1.8kW / 2.41HP (A) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0184TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B022 3TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4B022BTAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0226TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0228TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B5 Flangemm three phase motor
    Model Number: TA4B0225TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B5R Flangemm three phase motor
    Model Number: TA4B022ATAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B14A Flangemm three phase motor
    Model Number: TA4B0227TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B14B Flangemm three phase motor
    Model Number: TA4B0229TAIBHR
  • 2.2kW / 2.95HP (B) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0224TAIBHR
  • 3kW / 4.02HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B030 3TAIBHR
  • 3kW / 4.02HP (B) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4B030BTAIBHR
  • 3kW / 4.02HP (B) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0306TAIBHR
  • 3kW / 4.02HP (B) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0308TAIBHR
  • 3kW / 4.02HP (B) / 4 / B5 Flangemm three phase motor
    Model Number: TA4B0305TAIBHR
  • 3kW / 4.02HP (B) / 4 / B5R Flangemm three phase motor
    Model Number: TA4B030ATAIBHR
  • 3kW / 4.02HP (B) / 4 / B14A Flangemm three phase motor
    Model Number: TA4B0307TAIBHR
  • 3kW / 4.02HP (B) / 4 / B14B Flangemm three phase motor
    Model Number: TA4B0309TAIBHR
  • 3kW / 4.02HP (B) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0304TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4A037 3TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4A037BTAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0376TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0378TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B5 Flangemm three phase motor
    Model Number: TA4A0375TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B5R Flangemm three phase motor
    Model Number: TA4A037ATAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B14A Flangemm three phase motor
    Model Number: TA4A0377TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B14B Flangemm three phase motor
    Model Number: TA4A0379TAIBHR
  • 3.7kW / 4.96HP (A) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0374TAIBHR
  • 4kW / 5.36HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B040 3TAIBHR
  • 4kW / 5.36HP (B) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4B040BTAIBHR
  • 4kW / 5.36HP (B) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0406TAIBHR
  • 4kW / 5.36HP (B) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0408TAIBHR
  • 4kW / 5.36HP (B) / 4 / B5 Flangemm three phase motor
    Model Number: TA4B0405TAIBHR
  • 4kW / 5.36HP (B) / 4 / B5R Flangemm three phase motor
    Model Number: TA4B040ATAIBHR
  • 4kW / 5.36HP (B) / 4 / B14A Flangemm three phase motor
    Model Number: TA4B0407TAIBHR
  • 4kW / 5.36HP (B) / 4 / B14B Flangemm three phase motor
    Model Number: TA4B0409TAIBHR
  • 4kW / 5.36HP (B) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4B0404TAIBHR
  • 5.5kW / 7.38HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B055 3TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4A055 3TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4A055BTAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0556TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0558TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B5 Flangemm three phase motor
    Model Number: TA4A0555TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B5R Flangemm three phase motor
    Model Number: TA4A055ATAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B14A Flangemm three phase motor
    Model Number: TA4A0557TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B14B Flangemm three phase motor
    Model Number: TA4A0559TAIBHR
  • 5.5kW / 7.38HP (A) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0554TAIBHR
  • 7.5kW / 10.06HP (B) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4B075 3TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B3 Foot Mountmm three phase motor
    Model Number: TA4A075 3TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B3/B5R Foot & Flange Mountedmm three phase motor
    Model Number: TA4A075BTAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B3/B14A Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0756TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B3/B14B Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0758TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B5 Flangemm three phase motor
    Model Number: TA4A0755TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B5R Flangemm three phase motor
    Model Number: TA4A075ATAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B14A Flangemm three phase motor
    Model Number: TA4A0757TAIBHR
  • 7.5kW / 10.06HP (A) / 4 / B14B Flangemm three phase motor
    Model Number: TA4A0759TAIBHR

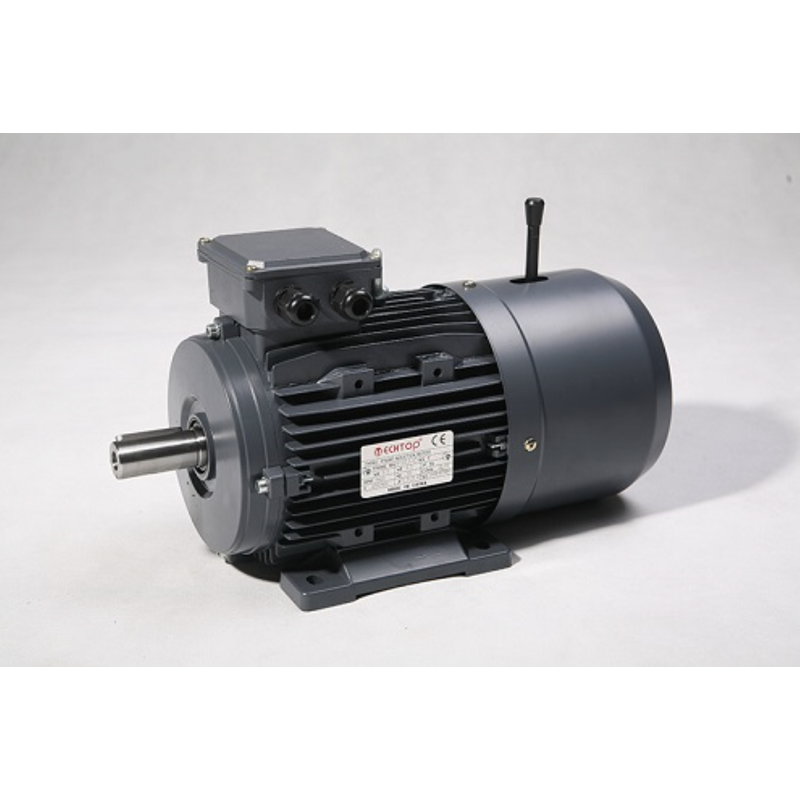

  • 7.5kW / 10.06HP (A) / 4 / B3/B5 Foot & Flange Mountedmm three phase motor
    Model Number: TA4A0754TAIBHR
