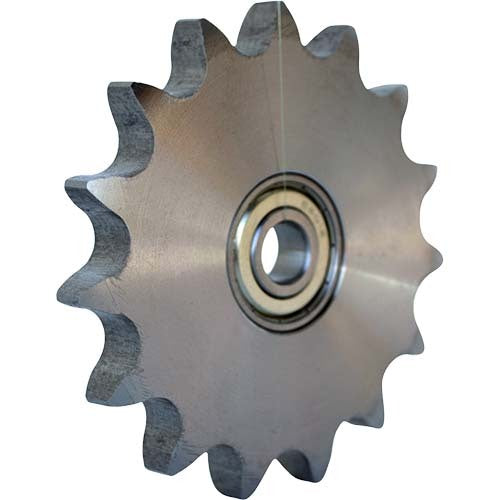

SE15/SE18-06B-15 Idler Sprocket, 06B Chain, 15 Teeth

These idler sprockets are made for the SE series elastomeric tensioner arms (SE15 and SE18). Each sprocket runs on a roller bearing, mounts on the arm and bears against the chain, so the arm can take up slack as the chain stretches.

The range covers 06B and 08B chain with 15 teeth (2 models). Each model is listed by its part number with the catalogue dimensions and the bolt size.

Where this product is used

• Roller chain drives fitted with an SE series tensioner arm
• Slack-side take-up where the chain stretches in service
• Machinery, conveyor and agricultural chain drives

Features

• Idler sprocket for SE15 and SE18 tensioner arms
• Roller bearing mounted in the sprocket
• 06B and 08B chain, 15 teeth
• Outside diameter, pitch circle diameter, bore and bolt size listed for each model
• Part numbers SE15/SE18-06B-15, SE15/SE18-08B-15

Key specifications

Sizes available

de is the outside diameter and dp is the pitch circle diameter. Dimensions are as listed in the catalogue.

Selecting the right option

Choose the idler by chain number and by the arm it will mount on. The arm size sets the bolt size, so check the arm model before ordering. For the arm sizes and the chain and belt selection chart, see the SE series tensioner arm.

Fitting and use

Mount the idler on the arm and keep it in line with the chain. Set the arm pre-tension and check it as the chain stretches. Check the bearing and the sprocket teeth at regular maintenance intervals.

Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.
