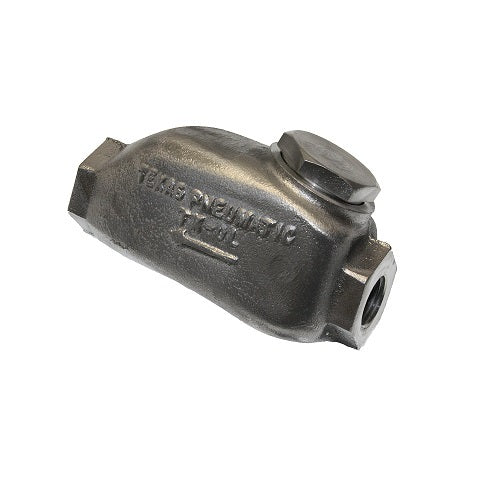

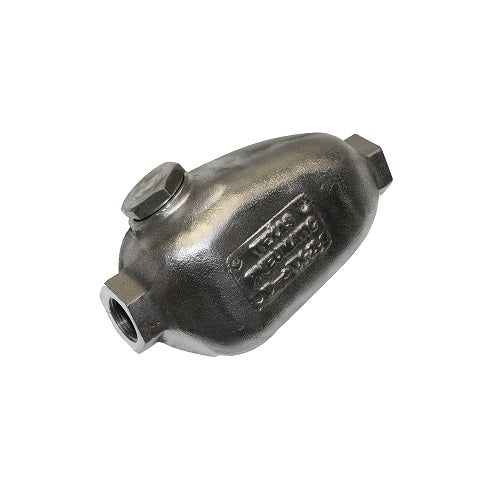

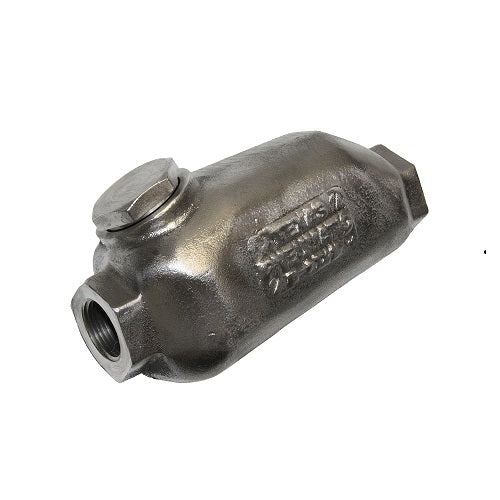

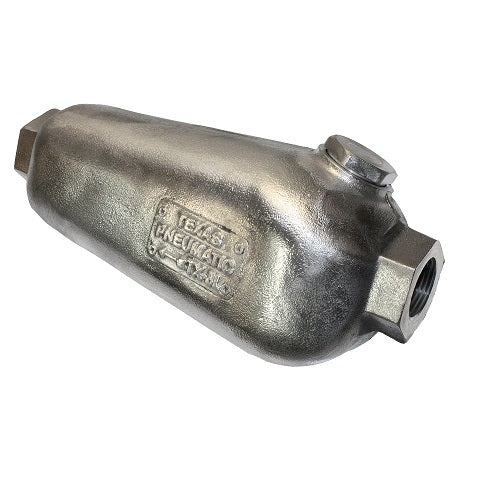

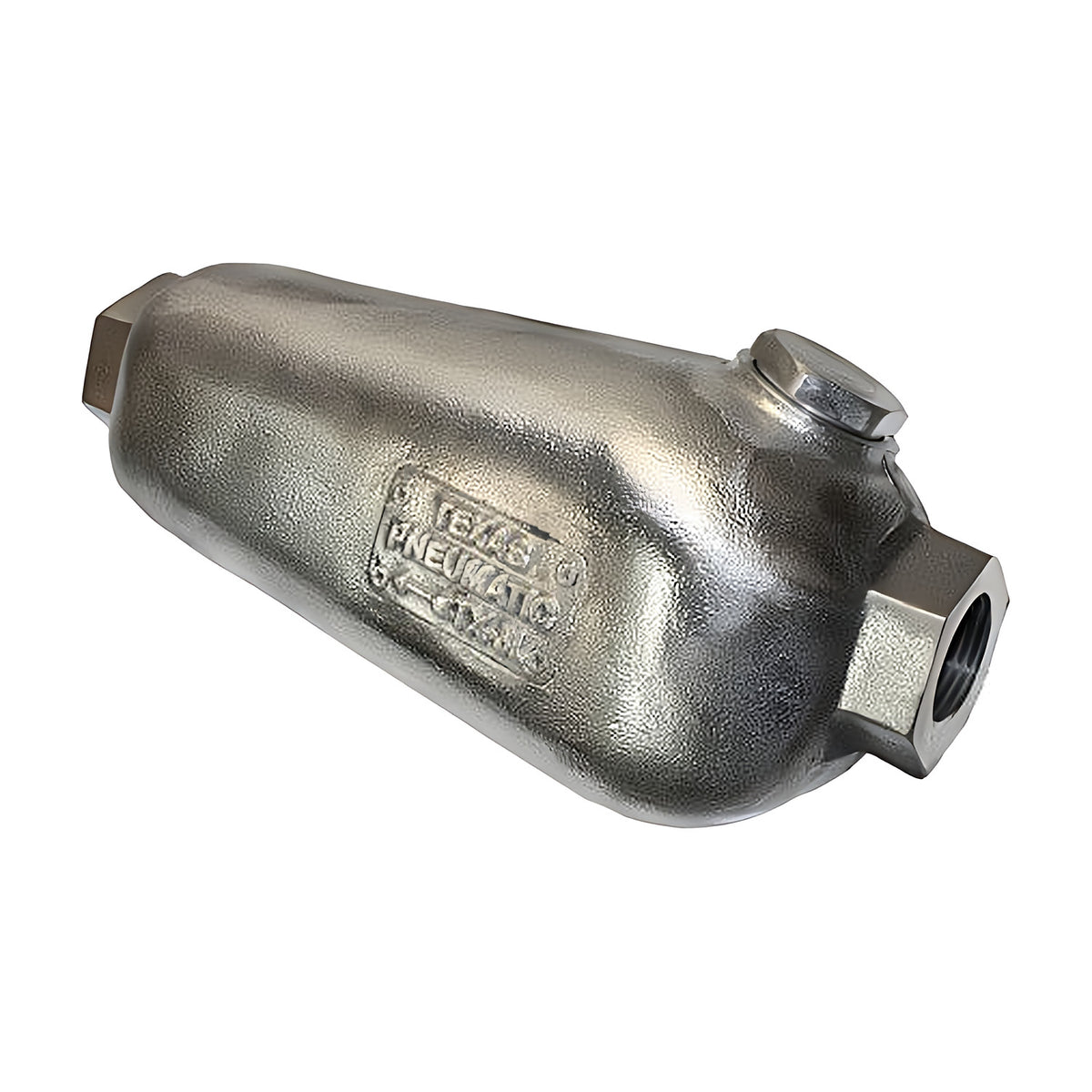

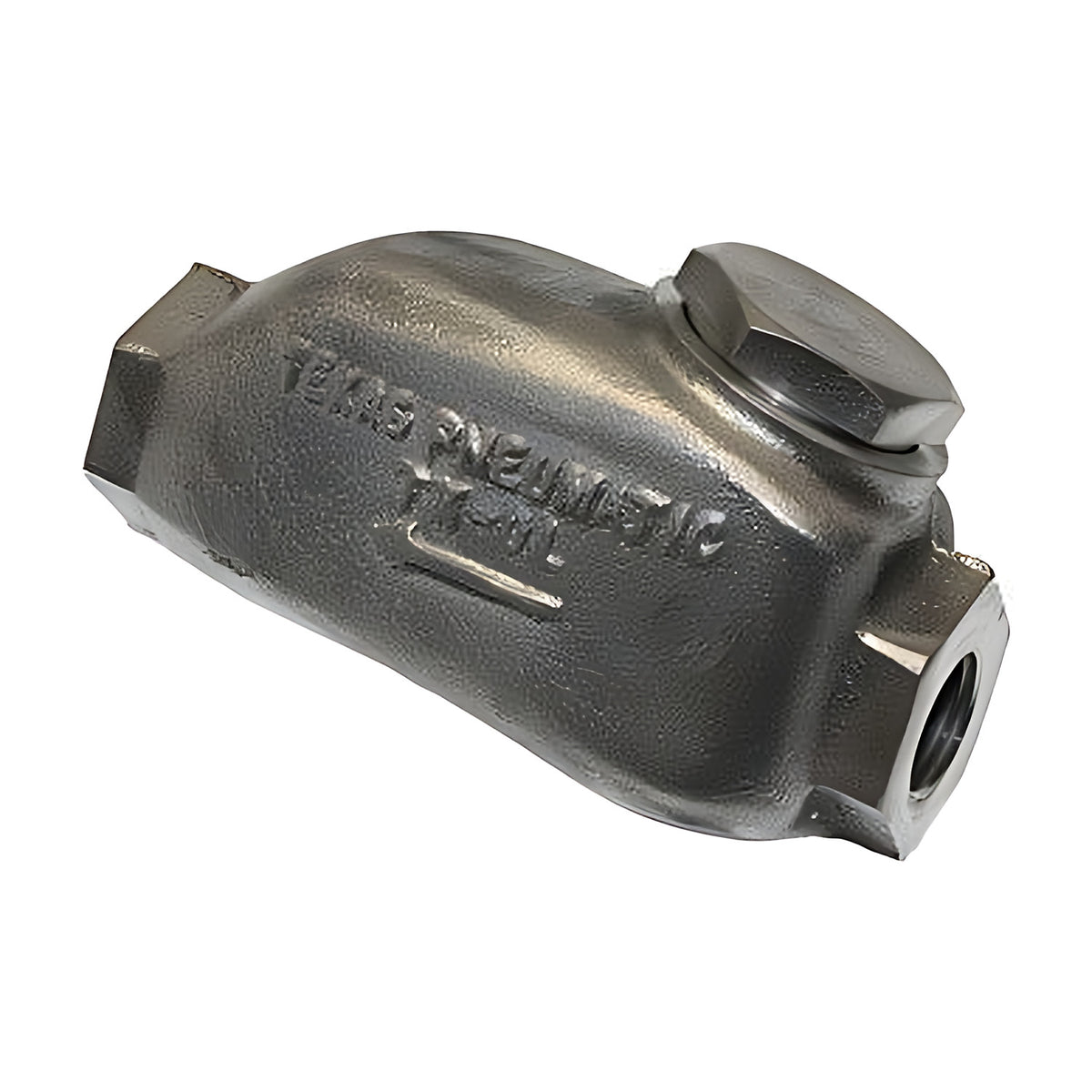

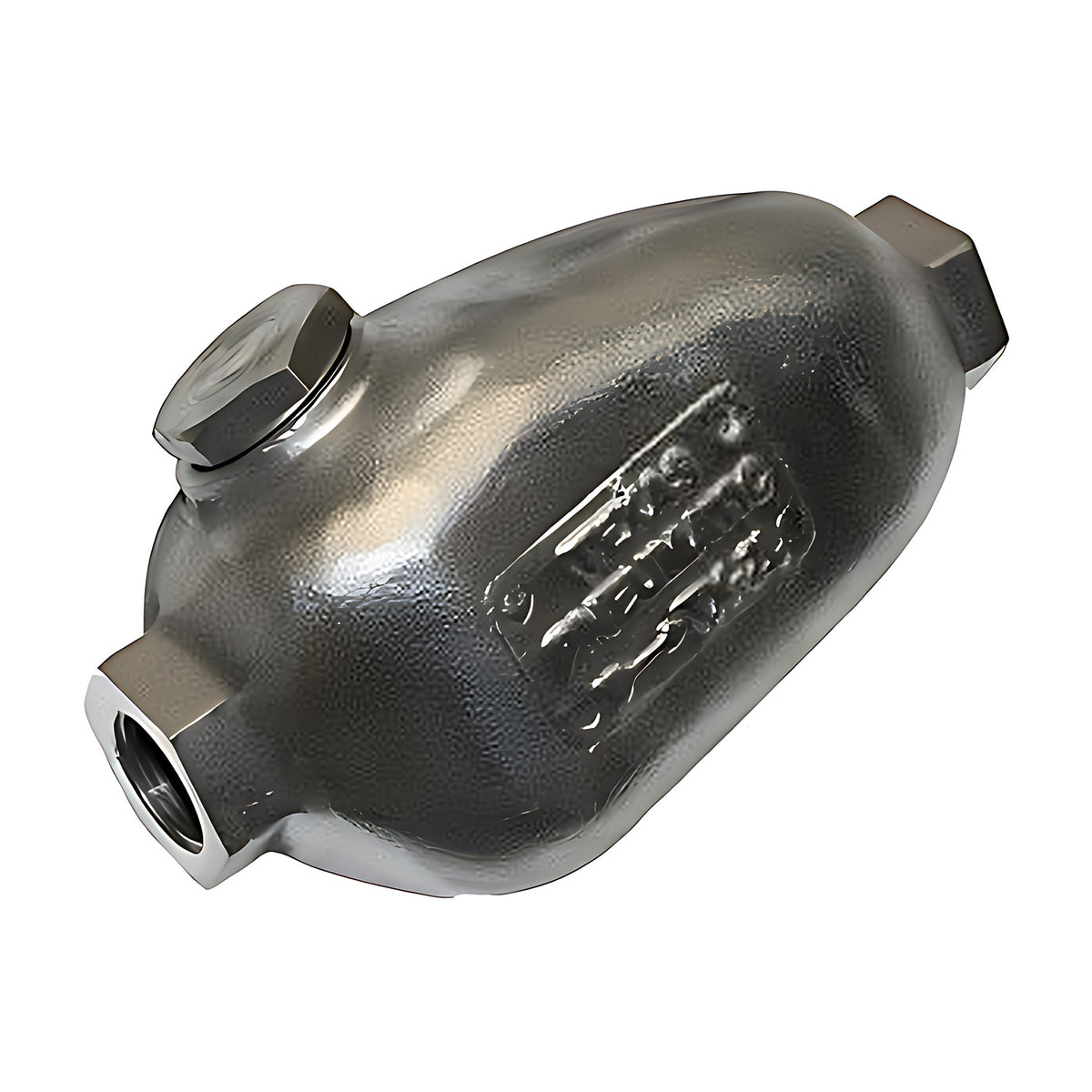

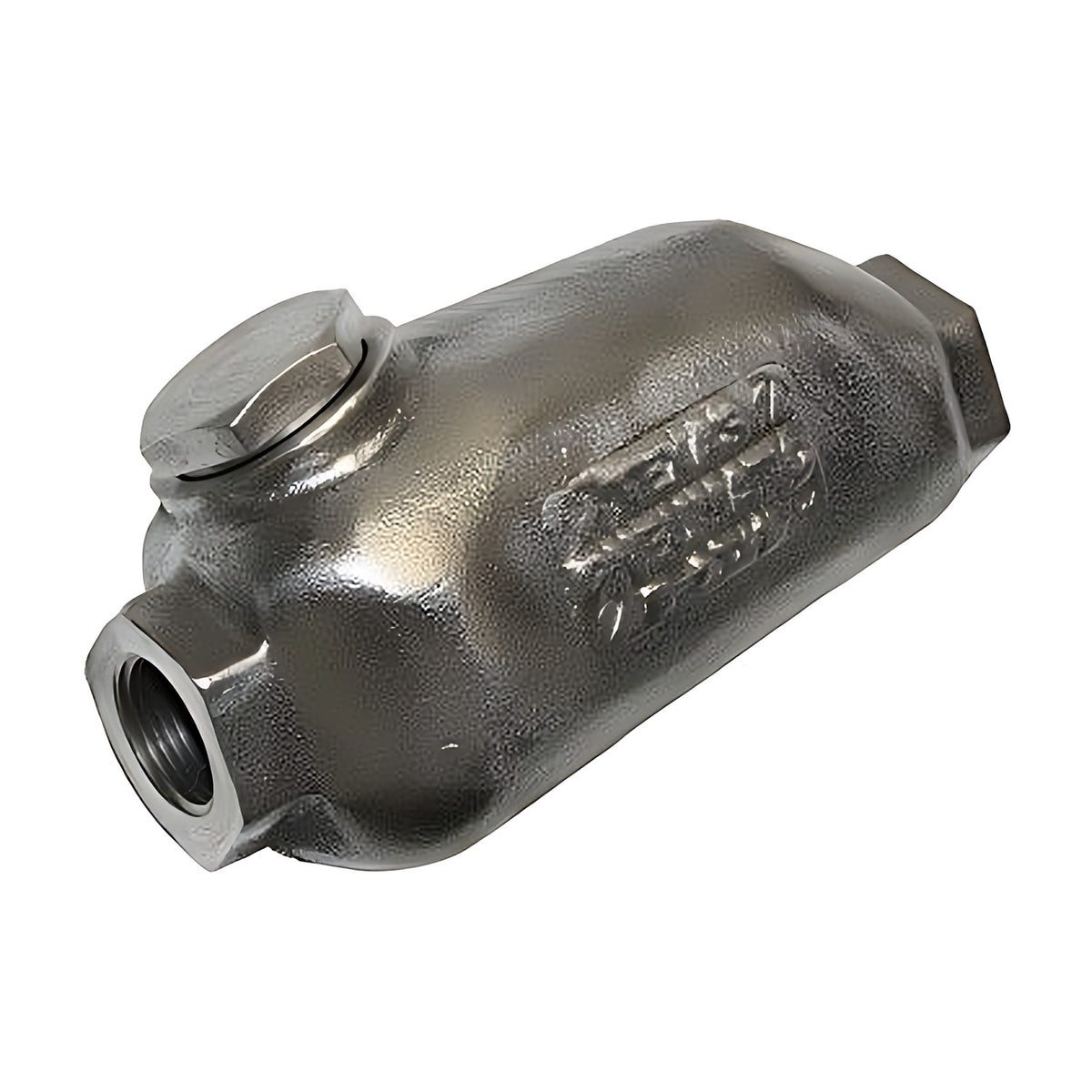

Texas Pneumatic Tools TX-2L In-Line Lubricator, 330ml, 3/4" Port
Available
Texas Pneumatic Tools in-line lubricators in four sizes, from 42ml to 480ml, for air tools that are too far from the compressor to be lubricated by a permanently mounted unit.
Texas Pneumatic Tools describes them as heavy duty in-line lubricators, to be installed 6-8 feet from the tool, with a metering valve to adjust oil flow and a sight disk in the housing to check the oil level (manufacturer-stated). Made in the USA (manufacturer-stated).
Where this product is used
- Lubricating air scribes, chipping hammers, needle scalers and piston scalers (manufacturer-stated)
- Air tools used too far from the compressor to be lubricated by a permanently mounted unit (manufacturer-stated)
Features
- Heavy duty in-line lubricator, installed 6-8 feet from the tool (manufacturer-stated)
- Metering valve for adjusting oil flow (manufacturer-stated)
- Sight disk in the housing to check the oil level (manufacturer-stated)
- Made in the USA (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | In-line lubricator |
| Capacity | 42ml to 480ml |
| Ports | 1/2", 3/4" and 1" |
| Oil weight recommended | 10 WT. (manufacturer-stated) |
| Made in | USA (manufacturer-stated) |
Key specifications
| Model | Capacity | Port | Max working pressure | Oil weight recommended | Air flow at 70 PSI |
|---|---|---|---|---|---|
| TX-0L | 42ml (1.4 fl.oz) | 1/2" | 500 | 10 WT. | 30 CFM |
| TX-1L | 111ml (3.7 fl.oz) | 3/4" | 260 | 10 WT. | 70 CFM |
| TX-2L | 330ml (11 fl.oz) | 3/4" | 300 | 10 WT. | 70 CFM |
| TX-3L | 480ml (16 fl.oz) | 1" | 250 | 10 WT. | 150 CFM |
Table values are as printed in the distributor catalogue for this range.
Selecting the right option
The table lists every size with its port, maximum working pressure, recommended oil weight and air flow at 70 PSI. The option name on the product is the maximum working pressure, shown as a number without a unit.
