Seco 09NR0.5ISO,CP500 Turning Insert
Regular price
$104.87
Sale price
$104.87
Regular price
Inc. GST
Available
◆

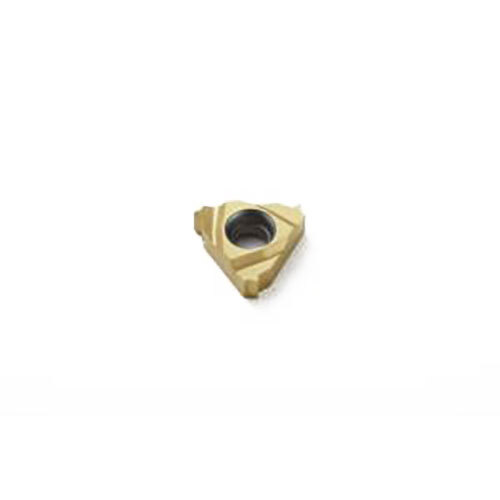

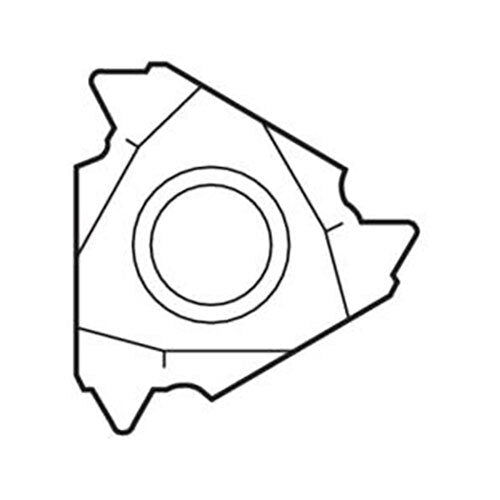

Threading insert for production thread cutting
●
Seco grade CP500 (Carbide PVD) for rated workpiece materials
▲
3 cutting edges, Seat size code 09, internal thread, 60 deg profile angle, 0.5-0.5 mm pitch range, right hand, 0.04 mm corner radius
This Seco threading insert is engineered for production engineering and machine-shop service. Manufactured in Seco grade CP500 Carbide PVD for the rated workpiece material range. Each insert provides 3 cutting edges for extended tool life through repeat production cycles. Built with internal thread cutting, 60 deg profile included angle, pitch range from 0.5 to 0.5 mm, right-hand cut geometry. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
09NR0.5ISO,CP500mm turning insert
Model Number: 02430555
-
09NR0.8ISO,CP500mm turning insert
Model Number: 02430556
-
09NR1.0ISO,CP500mm turning insert
Model Number: 00004107
-
09NR1.25ISO,CP500mm turning insert
Model Number: 02430557
-
09NR1.5ISO,CP500mm turning insert
Model Number: 00004118
-
09NR1.75ISO,CP500mm turning insert
Model Number: 00006987
-
09NR2.0ISO,CP500mm turning insert
Model Number: 00020505
