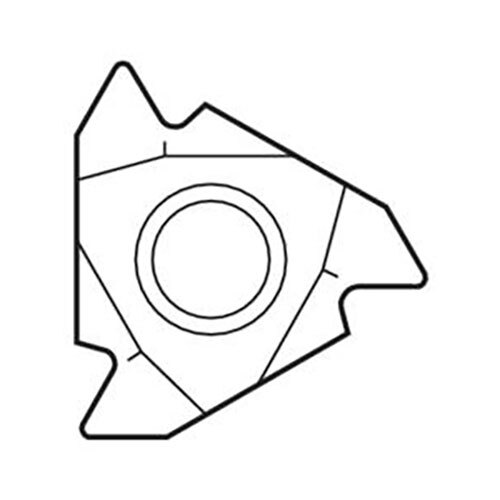

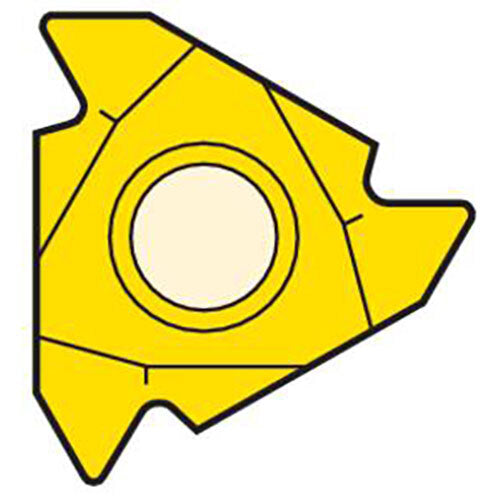

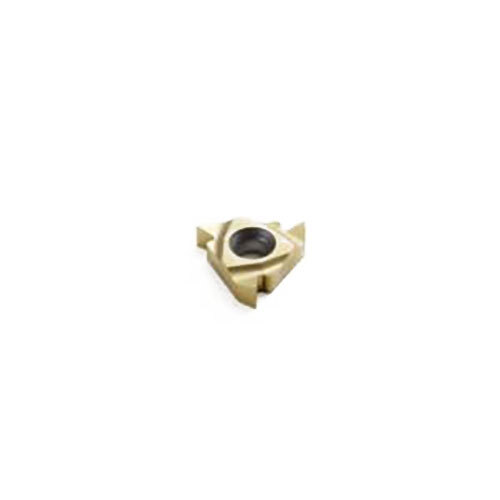

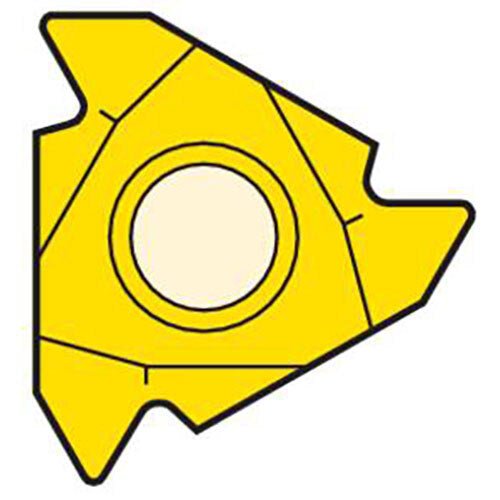

Seco 16NLA60,CP500 Turning Insert
Regular price
$104.87
Sale price
$104.87
Regular price
Inc. GST
Available
◆
Threading insert for production thread cutting
●
Seco grade CP500 (Carbide PVD) for rated workpiece materials
▲

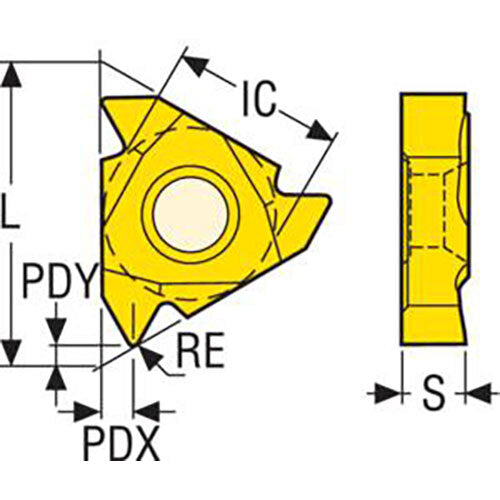

3 cutting edges, Seat size code 16, internal thread, 60 deg profile angle, 0.5-1.5 mm pitch range, left hand, 0.08 mm corner radius
This Seco threading insert is engineered for production engineering and machine-shop service. Manufactured in Seco grade CP500 Carbide PVD for the rated workpiece material range. Each insert provides 3 cutting edges for extended tool life through repeat production cycles. Built with internal thread cutting, 60 deg profile included angle, pitch range from 0.5 to 1.5 mm, left-hand cut geometry. Stocked at AIMS Industrial as part of the Seco precision tooling range.
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
16NLA60,CP500mm turning insert
Model Number: 00050328
-
16NLAG60,CP500mm turning insert
Model Number: 00050333
-
16NLG60,CP500mm turning insert
Model Number: 00050336
