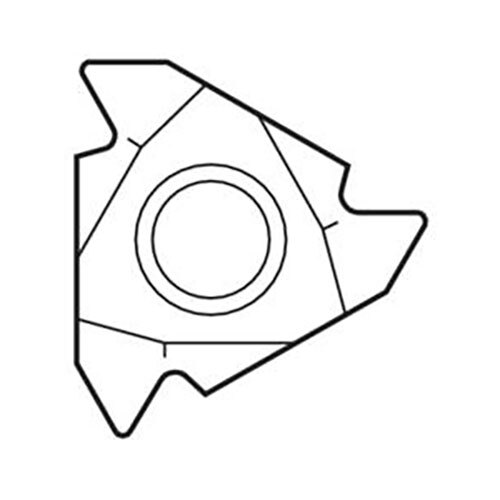

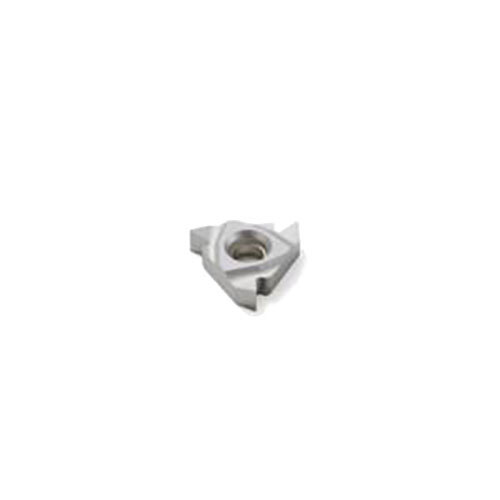

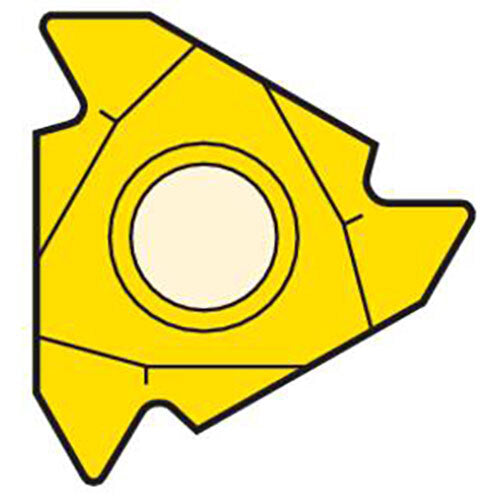

Seco 16NRA60,H15 Turning Insert

• 3 cutting edges per insert — index to a fresh edge instead of replacing the whole insert, lowering cost per edge
• Seco grade H15 Carbide Uncoated matched to the specified workpiece material range for predictable, repeatable tool life
• 0.08 mm corner radius for the specified finish and strength balance
• Seat size code 16 matches the corresponding Seco toolholder pocket

Seco Threading Inserts (carbide and cermet grades, full profile and vee form, metric, UN, BSPT, NPT, and API thread forms, internal and external) are precision indexable inserts for CNC lathe thread turning of steel, stainless steel, and nickel alloy components across general engineering, oil and gas, and high-volume production.

Oil, Gas, and Energy

• Threading insert supply for API thread turning on OCTG pipes, couplings, and connections
• Threading insert supply for oil country thread forms on downhole tools, valves, and pressure components
• NPT and BSPT threading insert supply for pipe fitting and valve body thread turning

General Engineering and Job Shops

• Metric and UN threading insert supply for CNC lathe thread turning on steel and stainless
• Threading insert supply for internal and external thread turning on production turning centres
• Thread turning insert replacement supply for job shop and contract machining

Automotive and Precision Manufacturing

• Threading insert supply for high-volume thread turning on automotive fasteners and shafts
• Precision thread insert supply for tight tolerance thread forms on automotive and precision components

Aerospace and Heavy Industry

• Threading insert supply for precision thread turning on aerospace structural fasteners and components
• Large diameter thread turning insert supply for heavy engineering and structural fastener production

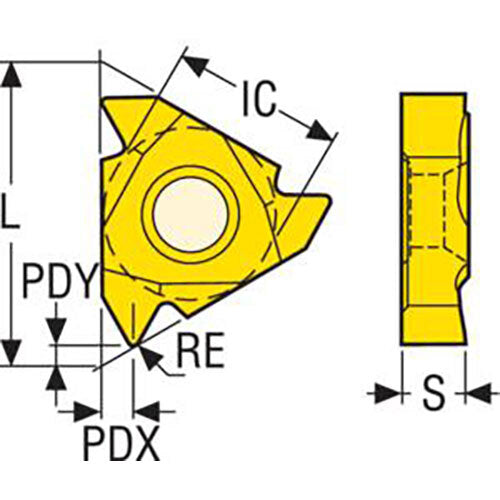

• Grade: H15
• Substrate / Coating: Carbide Uncoated
• Insert Thickness (mm): 3.47
• Corner Radius (mm): 0.08
• Seat Size Code: 16
• Cutting Edges per Insert: 3
