Seco 22ER4API386,CP300 Turning Insert
The price shown is for the pack.
Available
Genuine Seco Snap-Tap® Thread Turning Insert API V 038R 1:6, Grade CP300. This Seco Snap-Tap thread turning insert is size 22ER and cuts API V 038R 1:6 (API 386) threads. It is an external, right hand insert in grade CP300, coated (Ti, Al)N + TiN, with a 22mm cutting edge. Full profile insert, threads for the oil industry. It is used on CNC and manual lathes for threading. This page lists 3 options.
Key Specifications
| Grade | CP300 |
|---|---|
| Substrate / Coating | (Ti, Al)N + TiN |
| Thread Type | API V 038R 1:6 (API 386) |
| Configuration | External, Right hand |
| Cutting Edge Length | 22mm |
| Insert Details | Full profile insert, threads for the oil industry. |
About Grade CP300
The wear-resistant grade which is principally intended for high cutting speeds. Optimizing grade in steel and stainless steel. (Ti, Al)N + TiN.
About Seco Thread Turning
Our comprehensive selection of thread turning solutions for internal and external applications make it possible to produce high-quality threads in all sizes and profiles. From direct-pressed single-point inserts to innovative tool holders to intuitive software, we have everything you need to increase your productivity and profits. To help take the guesswork out of threading operations, our Thread Turning Wizard software eliminates complicated programs and calculations. Requiring minimal input, the Wizard selects the best holder and inserts for the application, identifies the best operating parameters and then downloads the information to the machine tool’s CNC.
About Seco Snap-Tap® Threading System
We use advanced manufacturing processes to produce the precision cutting edges on our Snap-Tap® thread turning tools. The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice. Pair these tools with our Anti-Twist Toolholders and solid suggestions from our Thread Tuning Wizard software and there’s no thread turning application you can’t handle. Our popular range of Snap-Tap® thread turning tools are available in three insert chipbreaker geometries for the successful machining of steel and stainless steel. While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications. The innovative tool holders made for use with Snap-Tap® inserts offer the best possible holding power available for long tool life and high accuracy. They employ an Anti-Twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining. For added insert and tool holder rigidity, a D-style clamp securely pulls the insert down and into the pocket.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Thread Turning Insert 22ER - API Thread Grade-CP300: 22ER4API386,CP300
SKU: A0120702 | Model: 00075843

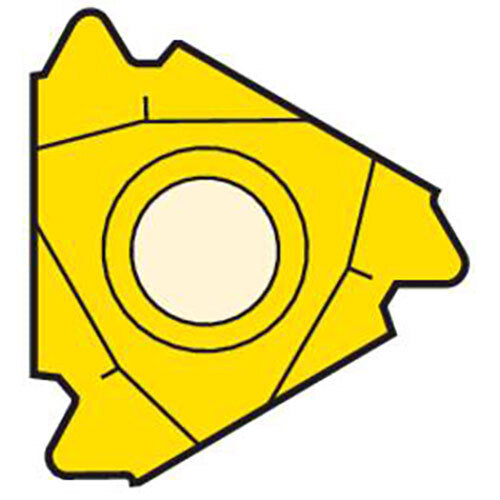

Seco External Snap-Tap® Thread Turning Insert 4.71 x 22mm Right 4-4 TPI CP300 API 386 Thread 22ER4API386,CP300 Pack of 2

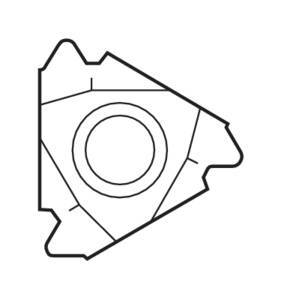

Thread Turning Insert 22ER - API Thread Grade-CP300)
22mm cutting edge length.
External, right cutting direction.
API 386 Thread, API V 038R 1:6.
Full profile insert, threads for the oil industry.
CP300 Grade
The wear-resistant grade which is principally intended for high cutting speeds.
Optimizing grade in steel and stainless steel.
(Ti, Al)N + TiN.
About Seco Thread Turning
Our comprehensive selection of thread turning solutions for internal and external applications make it possible to produce high-quality threads in all sizes and profiles.
From direct-pressed single-point inserts to innovative tool holders to intuitive software, we have everything you need to increase your productivity and profits.
To help take the guesswork out of threading operations, our Thread Turning Wizard software eliminates complicated programs and calculations.
Requiring minimal input, the Wizard selects the best holder and inserts for the application, identifies the best operating parameters and then downloads the information to the machine tool’s CNC.
About Seco Snap-Tap® Threading System
We use advanced manufacturing processes to produce the precision cutting edges on our Snap-Tap® thread turning tools.
The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice.
Pair these tools with our Anti-Twist Toolholders and solid suggestions from our Thread Tuning Wizard software and there’s no thread turning application you can’t handle.
Our popular range of Snap-Tap® thread turning tools are available in three insert chipbreaker geometries for the successful machining of steel and stainless steel.
While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications.
The innovative tool holders made for use with Snap-Tap® inserts offer the best possible holding power available for long tool life and high accuracy.
They employ an Anti-Twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining.
For added insert and tool holder rigidity, a D-style clamp securely pulls the insert down and into the pocket.
