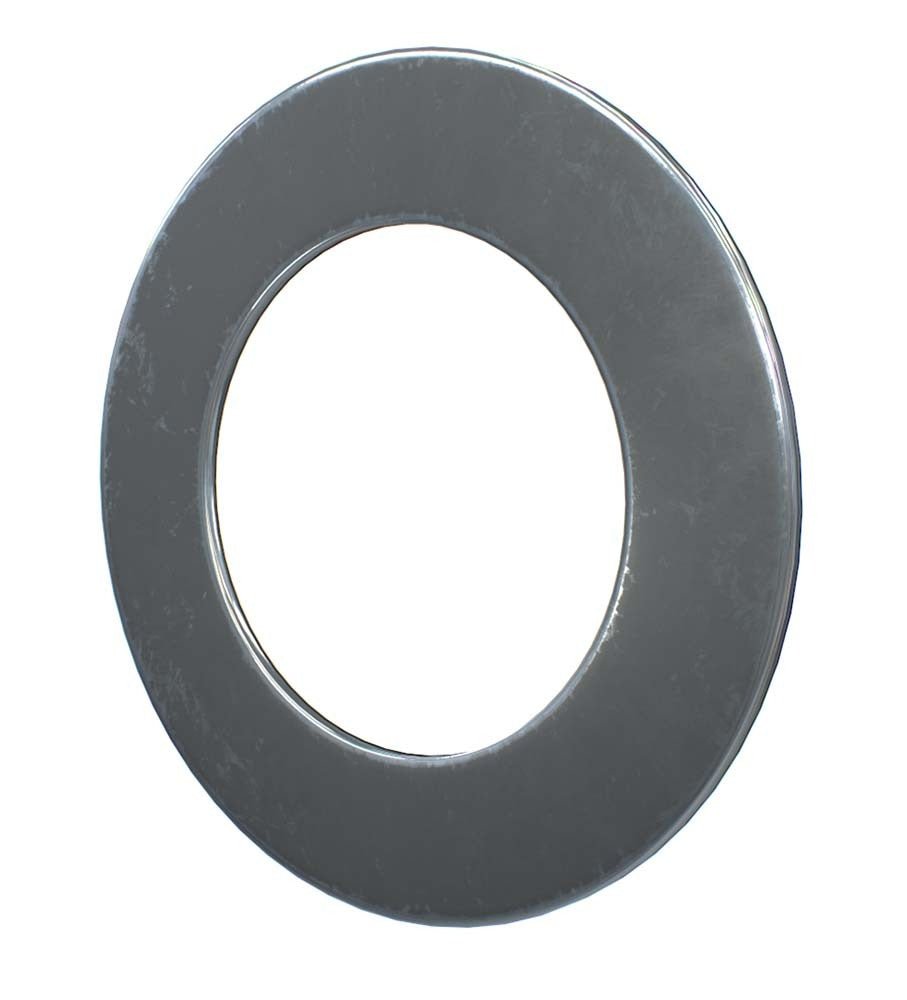

Koyo/JTEKT TRA-1625 Thrust Needle Roller Bearing - Washer 1x1-9/16x1/32"

$7.26
$7.26
Inc. GST

Available

Koyo/JTEKT TRA-1625. Pure axial load in compact axial space. Washer. Pairs with matching thrust components. Thrust Needle Roller - Washer (TRA, TRB, TRC, TRD) is for axial-thrust applications where radial space is limited.

Type: Thrust needle roller bearing. Component: Washer. Load: Pure axial. Cage: Steel. / Koyo.

Available Sizes

56 sizes available — select the exact size you need from the dropdown above. Key figures for each:

Inside Diameter (mm) Outside Diameter (mm)
1 1 9/16
1 1/4 1 15/16
1 1 9/16
1 1/4 1 15/16
1 1 9/16
1 1/4 1 15/16
1 3/8 2 1/16
1 1/2 2 3/16
1 3/4 2 1/2
1 3/8 2 1/16
1 1/2 2 3/16
1 3/4 2 1/2
1 3/8 2 1/16
1 1/2 2 3/16
1 3/4 2 1/2
1/2 15/16
1/2 15/16
2 2 3/4
2 2 3/4
2 2 3/4
2 1/4 3
2 1/2 3 1/4
2 3/4 3 5/8
2 1/4 3
2 1/2 3 1/4
2 3/4 3 5/8
2 1/4 3
2 1/2 3 1/4
2 3/4 3 5/8
3/4 1 1/4
3/4 1 1/4
3/4 1 1/4
3 3 3/4
3 3 3/4
3 3 3/4
3 1/4 4 1/8
3 3/4 4 5/8
3 3/4 4 5/8
3 1/4 4 1/8
3 3/4 4 5/8
5/8 1 1/8
5/8 1 1/8
7/8 1 7/16
7/8 1 7/16
7/8 1 7/16
1 1 5/9
1 1/4 1 15/16
1 3/8 2 1/16
1 1/2 2 3/16
1 3/4 2 1/2
2 2 3/4
2 1/2 3 1/4
2 3/4 3 5/8
3 3/4 4 5/8
5/8 1 1/8
7/8 1 7/16

Where This Is Used

  • Thrust Needle Roller Bearing Washers (TRA, TRB, TRC, TRD series) carry pure axial load in compact axial space for gearboxes, transmissions, and machinery where minimal axial space is available.
  • General Engineering and Gearboxes Gearbox and transmission thrust needle roller washer supply.
  • Industrial machinery compact axial load bearing component replacement.
  • Drive shaft and mechanism thrust bearing washer supply.
  • Automotive Vehicle gearbox and drivetrain thrust needle washer supply.
  • Automotive transmission thrust bearing component replacement.
  • Fleet and transport drivetrain thrust bearing maintenance.

Features

  • Features.
  • One-way fool-proof assembly features, anti-rotation locking features and lubrication flow enhancements.
  • Benefits.
  • High speed performance and application flexibilty.
Full engineering specifications (all 12 fields, 56 sizes)

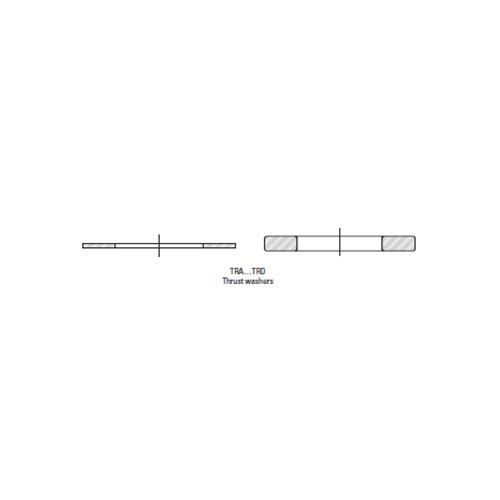

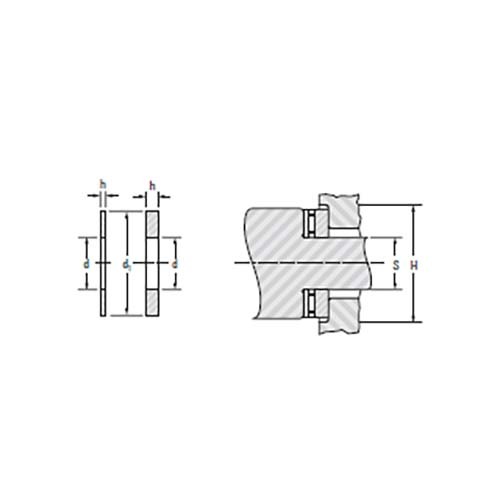

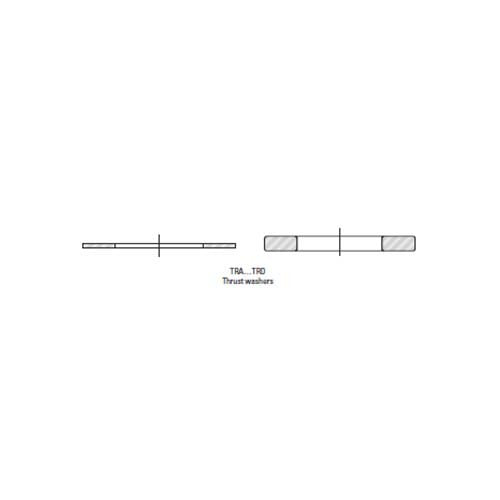

Inside Diameter (mm) Washer Dimension H Max. (mm) Outside Diameter (mm) H(2) Diameter To Clear O.d. (mm) Shaft Diameter (in) Piloting Dimension S Max. (mm) Washer Dimension H Min. (mm) Washer Dimension D1 (mm) Thrust Washer Series Piloting Dimension S Min. (mm) Washer Dimension D (mm) Width (mm)
1 0.81 1 9/16 40.49 1 25.4 0.76 39.67 Inch Series (TRA) 25.32 25.4 1/32
1 1/4 0.81 1 15/16 50.01 1 31.75 0.76 49.2 Inch Series (TRA) 31.67 31.75 1/32
1 1.6 1 9/16 40.49 25.4 1.52 39.67 Inch Series (TRB) 25.32 25.4 1/16
1 1/4 1.6 1 15/16 50.01 31.75 1.52 49.2 Inch Series (TRB) 31.67 31.75 1/16
1 3.2 1 9/16 40.49 25.4 3.12 39.67 Inch Series (TRD) 25.32 25.4 1/8
1 1/4 3.2 1 15/16 50.01 31.75 3.12 49.2 Inch Series (TRD) 31.67 31.75 1/8
1 3/8 0.81 2 1/16 53.19 1 3/8 34.93 0.76 52.37 Inch Series (TRA) 34.85 34.93 1/32
1 1/2 0.81 2 3/16 56.36 1 1/2 38.1 0.76 55.55 Inch Series (TRA) 38.02 38.1 1/32
1 3/4 0.81 2 1/2 64.29 1 3/4 44.45 0.76 63.5 Inch Series (TRA) 44.37 44.45 1/32
1 3/8 1.6 2 1/16 53.19 34.93 1.52 52.37 Inch Series (TRB) 34.85 34.93 1/16
1 1/2 1.6 2 3/16 56.36 38.1 1.52 55.55 Inch Series (TRB) 38.02 38.1 1/16
1 3/4 1.6 2 1/2 64.29 44.45 1.52 63.5 Inch Series (TRB) 44.37 44.45 1/16
1 3/8 3.2 2 1/16 53.19 34.93 3.12 52.37 Inch Series (TRD) 34.85 34.93 1/8
1 1/2 3.2 2 3/16 56.36 38.1 3.12 55.55 Inch Series (TRD) 38.02 38.1 1/8
1 3/4 3.2 2 1/2 64.29 44.45 3.12 63.5 Inch Series (TRD) 44.37 44.45 1/8
1/2 0.81 15/16 24.61 1/2 12.7 0.76 23.8 Inch Series (TRA) 12.62 12.7 1/32
1/2 1.6 15/16 24.61 12.7 1.52 23.8 Inch Series (TRB) 12.62 12.7 1/16
2 0.81 2 3/4 70.64 2 50.8 0.76 69.85 Inch Series (TRA) 50.72 50.8 1/32
2 1.6 2 3/4 70.64 50.8 1.52 69.85 Inch Series (TRB) 50.72 50.8 1/16
2 3.2 2 3/4 70.64 50.8 3.12 69.85 Inch Series (TRD) 50.72 50.8 1/8
2 1/4 0.81 3 76.99 2 1/4 57.15 0.76 76.2 Inch Series (TRA) 57.07 57.15 1/32
2 1/2 0.81 3 1/4 83.34 2 1/2 63.5 0.76 82.55 Inch Series (TRA) 63.42 63.5 1/32
2 3/4 0.81 3 5/8 92.86 2 3/4 69.85 0.76 92.08 Inch Series (TRA) 69.77 69.85 1/32
2 1/4 1.6 3 76.99 57.15 1.52 76.2 Inch Series (TRB) 57.07 57.15 1/16
2 1/2 1.6 3 1/4 83.34 63.5 1.52 82.55 Inch Series (TRB) 63.42 63.5 1/16
2 3/4 1.6 3 5/8 92.86 69.85 1.52 92.08 Inch Series (TRB) 69.77 69.85 1/16
2 1/4 3.2 3 76.99 57.15 3.12 76.2 Inch Series (TRD) 57.07 57.15 1/8
2 1/2 3.2 3 1/4 83.42 63.5 3.12 82.55 Inch Series (TRD) 63.42 63.5 1/8
2 3/4 3.2 3 5/8 92.86 69.85 3.12 92.08 Inch Series (TRD) 69.77 69.85 1/8
3/4 0.81 1 1/4 32.54 3/4 19.05 0.76 31.75 Inch Series (TRA) 18.97 19.05 1/32
3/4 1.6 1 1/4 32.54 19.05 1.52 31.75 Inch Series (TRB) 18.97 19.05 1/16
3/4 3.2 1 1/4 32.54 19.05 3.12 31.75 Inch Series (TRD) 18.97 19.05 1/8
3 0.81 3 3/4 96.04 3 76.2 0.76 95.25 Inch Series (TRA) 76.12 76.2 1/32
3 1.6 3 3/4 96.04 76.2 1.52 95.25 Inch Series (TRB) 76.12 76.2 1/16
3 3.2 3 3/4 96.04 76.2 3.12 95.25 Inch Series (TRD) 76.12 76.2 1/8
3 1/4 0.81 4 1/8 105.56 3 1/4 82.55 0.76 104.78 Inch Series (TRA) 82.47 82.55 1/32
3 3/4 0.81 4 5/8 118.26 3 3/4 95.25 0.76 117.48 Inch Series (TRA) 95.17 95.25 1/32
3 3/4 1.6 4 5/8 118.26 95.25 1.52 117.48 Inch Series (TRB) 95.17 95.25 1/16
3 1/4 3.2 4 1/8 105.56 82.55 3.12 104.78 Inch Series (TRD) 82.47 82.55 1/8
3 3/4 3.2 4 5/8 118.26 95.25 3.12 117.48 Inch Series (TRD) 95.17 95.25 1/8
5/8 0.81 1 1/8 29.36 15.88 0.76 28.58 Inch Series (TRA) 15.8 15.88 1/32
5/8 1.6 1 1/8 29.36 15.88 1.52 28.58 Inch Series (TRB) 15.8 15.88 1/16
7/8 0.81 1 7/16 37.31 7/8 22.23 0.76 36.5 Inch Series (TRA) 22.15 22.23 1/32
7/8 1.6 1 7/16 37.31 22.23 1.52 36.5 Inch Series (TRB) 22.15 22.23 1/16
7/8 3.2 1 7/16 37.31 22.23 3.12 36.5 Inch Series (TRD) 22.15 22.23 1/8
1 1 5/9 40.49 25.4 39.67 Inch Series (TRC) 25.32 25.4 3/32
1 1/4 2.41 1 15/16 50.01 31.75 2.34 49.2 Inch Series (TRC) 31.67 31.75 3/32
1 3/8 2.41 2 1/16 53.19 34.93 2.34 52.37 Inch Series (TRC) 34.85 34.93 3/32
1 1/2 2.41 2 3/16 56.36 38.1 2.34 55.55 Inch Series (TRC) 38.02 38.1 3/32
1 3/4 2.41 2 1/2 64.29 44.45 2.34 63.5 Inch Series (TRC) 44.37 44.45 3/32
2 2.41 2 3/4 70.64 50.8 2.34 69.85 Inch Series (TRC) 50.72 50.8 3/32
2 1/2 2.41 3 1/4 83.34 63.5 2.34 82.55 Inch Series (TRC) 63.42 63.5 3/32
2 3/4 2.41 3 5/8 92.86 69.85 2.34 92.08 Inch Series (TRC) 69.77 69.85 3/32
3 3/4 2.41 4 5/8 118.26 95.25 2.34 117.48 Inch Series (TRC) 95.17 95.25 3/32
5/8 2.41 1 1/8 29.36 15.88 2.34 28.58 Inch Series (TRC) 15.8 15.88 3/32
7/8 2.41 1 7/16 37.31 22.23 2.34 36.5 Inch Series (TRC) 22.15 22.23 3/32
Product Highlights −
  • Pure axial load in compact axial space
  • Washer
  • Pairs with matching thrust components

Thrust Needle Roller - Washer (TRA, TRB, TRC, TRD) is for axial-thrust applications where radial space is limited.

Resources

File icon
Koyo-Torrington-Needle-Roller-Bearings
Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 1 / 1/32 / 1 9/16
    Model Number: TRA-1625/KOYO
  • 1 1/4 / 1/32 / 1 15/16
    Model Number: TRA-2031/KOYO
  • 1 / 1/16 / 1 9/16
    Model Number: TRB-1625/KOYO
  • 1 1/4 / 1/16 / 1 15/16
    Model Number: TRB-2031/KOYO
  • 1 / 1/8 / 1 9/16
    Model Number: TRD-1625/KOYO
  • 1 1/4 / 1/8 / 1 15/16
    Model Number: TRD-2031/KOYO
  • 1 3/8 / 1/32 / 2 1/16
    Model Number: TRA-2233/KOYO
  • 1 1/2 / 1/32 / 2 3/16
    Model Number: TRA-2435/KOYO
  • 1 3/4 / 1/32 / 2 1/2
    Model Number: TRA-2840/KOYO
  • 1 3/8 / 1/16 / 2 1/16
    Model Number: TRB-2233/KOYO
  • 1 1/2 / 1/16 / 2 3/16
    Model Number: TRB-2435/KOYO
  • 1 3/4 / 1/16 / 2 1/2
    Model Number: TRB-2840/KOYO
  • 1 3/8 / 1/8 / 2 1/16
    Model Number: TRD-2233/KOYO
  • 1 1/2 / 1/8 / 2 3/16
    Model Number: TRD-2435/KOYO
  • 1 3/4 / 1/8 / 2 1/2
    Model Number: TRD-2840/KOYO
  • 1/2 / 1/32 / 15/16
    Model Number: TRA-815/KOYO
  • 1/2 / 1/16 / 15/16
    Model Number: TRB-815/KOYO
  • 2 / 1/32 / 2 3/4
    Model Number: TRA-3244/KOYO
  • 2 / 1/16 / 2 3/4
    Model Number: TRB-3244/KOYO
  • 2 / 1/8 / 2 3/4
    Model Number: TRD-3244/KOYO
  • 2 1/4 / 1/32 / 3
    Model Number: TRA-3648/KOYO
  • 2 1/2 / 1/32 / 3 1/4
    Model Number: TRA-4052/KOYO
  • 2 3/4 / 1/32 / 3 5/8
    Model Number: TRA-4458/KOYO
  • 2 1/4 / 1/16 / 3
    Model Number: TRB-3648/KOYO
  • 2 1/2 / 1/16 / 3 1/4
    Model Number: TRB-4052/KOYO
  • 2 3/4 / 1/16 / 3 5/8
    Model Number: TRB-4458/KOYO
  • 2 1/4 / 1/8 / 3
    Model Number: TRD-3648/KOYO
  • 2 1/2 / 1/8 / 3 1/4
    Model Number: TRD-4052/KOYO
  • 2 3/4 / 1/8 / 3 5/8
    Model Number: TRD-4458/KOYO
  • 3/4 / 1/32 / 1 1/4
    Model Number: TRA-1220/KOYO
  • 3/4 / 1/16 / 1 1/4
    Model Number: TRB-1220/KOYO
  • 3/4 / 1/8 / 1 1/4
    Model Number: TRD-1220/KOYO
  • 3 / 1/32 / 3 3/4
    Model Number: TRA-4860/KOYO
  • 3 / 1/16 / 3 3/4
    Model Number: TRB-4860/KOYO
  • 3 / 1/8 / 3 3/4
    Model Number: TRD-4860/KOYO
  • 3 1/4 / 1/32 / 4 1/8
    Model Number: TRA-5266/KOYO
  • 3 3/4 / 1/32 / 4 5/8
    Model Number: TRA-6074/KOYO
  • 3 3/4 / 1/16 / 4 5/8
    Model Number: TRB-6074/KOYO
  • 3 1/4 / 1/8 / 4 1/8
    Model Number: TRD-5266/KOYO
  • 3 3/4 / 1/8 / 4 5/8
    Model Number: TRD-6074/KOYO
  • 5/8 / 1/32 / 1 1/8
    Model Number: TRA-1018/KOYO
  • 5/8 / 1/16 / 1 1/8
    Model Number: TRB-1018/KOYO
  • 7/8 / 1/32 / 1 7/16
    Model Number: TRA-1423/KOYO
  • 7/8 / 1/16 / 1 7/16
    Model Number: TRB-1423/KOYO
  • 7/8 / 1/8 / 1 7/16
    Model Number: TRD-1423/KOYO
  • 1 / 3/32 / 1 5/9
    Model Number: TRC-1625/KOYO
  • 1 1/4 / 3/32 / 1 15/16
    Model Number: TRC-2031/KOYO
  • 1 3/8 / 3/32 / 2 1/16
    Model Number: TRC-2233/KOYO
  • 1 1/2 / 3/32 / 2 3/16
    Model Number: TRC-2435/KOYO
  • 1 3/4 / 3/32 / 2 1/2
    Model Number: TRC-2840/KOYO
  • 2 / 3/32 / 2 3/4
    Model Number: TRC-3244/KOYO
  • 2 1/2 / 3/32 / 3 1/4
    Model Number: TRC-4052/KOYO
  • 2 3/4 / 3/32 / 3 5/8
    Model Number: TRC-4458/KOYO
  • 3 3/4 / 3/32 / 4 5/8
    Model Number: TRC-6074/KOYO
  • 5/8 / 3/32 / 1 1/8
    Model Number: TRC-1018/KOYO
  • 7/8 / 3/32 / 1 7/16
    Model Number: TRC-1423/KOYO
