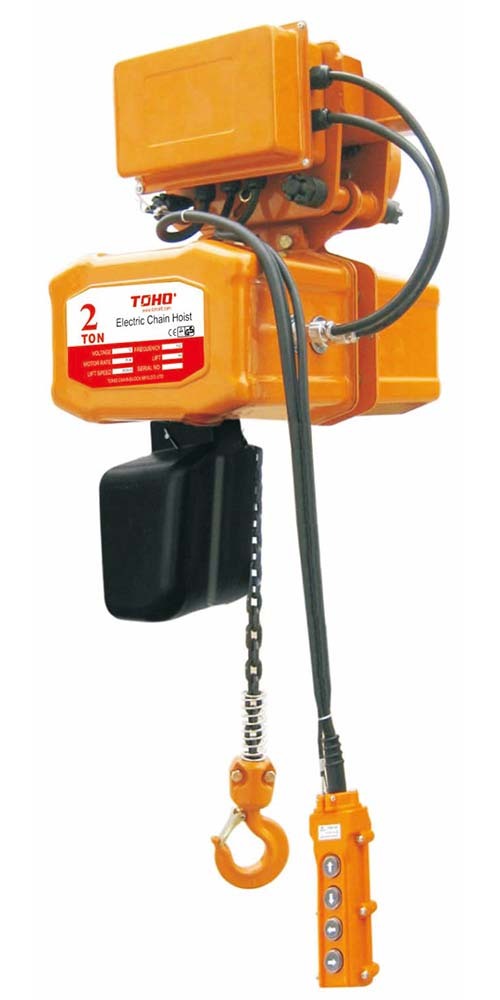

Toho Electric Chain Hoist Single Phase With Electric Trolley

• Load Limited
• Thermal Prevention
• Light weight, compact design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80 - 7.1mm Alloy Steel load chain
• Limit switches fitted at top and bottom ends to prevent chain runout
• 240V, 50Hz Single speed Motor 1200 Watts. (Single Phase)
• Complies with ASNZS 1418.2 standard
• Hoists can be re-chained to your required length (limits apply
• The electric trolley offers a long and reliable operation
• Compact structure, light weight, easily operation and attractive appearance.
• Widely used in factories, mines, ports, shopping centres and warehouses.
• IP Rating Hoist: IP54, Control: IP65

Electric Chain Hoist

• Capacity (ton): 2
• Standard Lift (m): 6
• Motor Power (kW): 1.2
• Running Test Load (kN): 25
• No. of Chain: 2
• Dia of Chain (mm): 7.1
• Lifting Speed (m/min): 3
• Trolley Speed (m/min): 20
• Size of I-beam (mm): 74 - 124
• Min. radius of curve (m): 1.1
• Net Weight (kg): 107

Electric Trolley

• Motor Power (w): 300

Specifications
