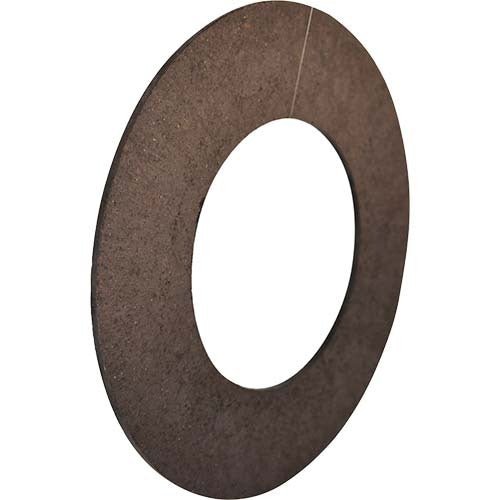

Finer Power torque Limiter Friction Disc RTL65-FRIC/DISC

These are friction discs for the RTL50, RTL65, RTL89, RTL127 and RTL178 torque limiters. A torque limiter slips on friction surfaces held together by spring force, and the friction discs are the surfaces that wear in service.

Where this product is used

• Replacing worn friction discs in RTL series torque limiters
• Restoring the slip torque of a limiter that has worn or glazed
• Servicing torque limiters on conveyors, mixers and feeders
• Keeping a spare friction disc for critical drives

Features

• Friction disc for RTL50 to RTL178 torque limiters
• Sold singly, with one part number for each of the 5 sizes
• Suits both models of each size (-1 and -2)
• Service part for installed torque limiters

Key specifications

Sizes available

Choosing the right option

The complete limiters are under Torque Limiter, RTL50 to RTL178, 8 to 64mm Bore, 0.3 to 111 kgf-m. Choose the friction disc by the limiter size: RTL50, RTL65, RTL89, RTL127 or RTL178. The centre member is the sprocket, pulley or plate, supplied by you, that runs between the friction facings.

Replace the friction discs when the limiter does not hold its set torque or slips unevenly. Check the centre member rubbing surface at the same time: it should be flat, square with the bore and free of rust, scale and oil, or the slip torque will be erratic. The bronze bush that carries the centre member is under Torque Limiter Bronze Bush, 30 to 105mm OD, Suits RTL50 to RTL178 and the spring under Torque Limiter Spring, Suits RTL50 to RTL178.

Friction discs are sold singly, so order the number your limiter needs.
