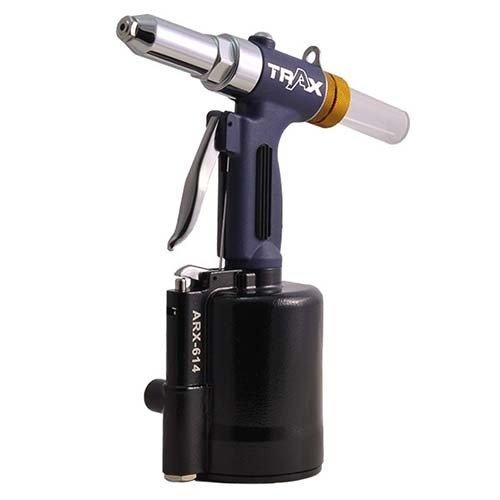

Trax 1/4" Air Hydraulic Riveter ARX-614

Traction Power (kgf / lbf)
1,603 / 3,528 at (85psi)
Stroke Length (mm)
14
Net Weight (kg)
1.78
Working Air Pressure (psi)
85 ~ 92
Nosepiece
3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm) 3/16" (4.8mm) 7/32" (5.5mm) 1/4" (6.4mm)
Width x Height(mm)
170 x 272
Air Consumption (Liter/Stroke)
2.32
Air Inlet (PT)
1/4"
Air Hose Size (I.D.)
6.5mm(1/4")
Capacity
Steel Rivets: Min. 3/32" (2.4mm) Max. 1/4" (6.4mm)  Stainless Rivets: Max. 3/16" (4.8mm)
