Trax ARX-614 1/4" and ARX-200N 3/16" air hydraulic riveter
Available
This is a Trax air hydraulic riveter in two sizes: ARX-614 (1/4") and ARX-200N (3/16").
Where this product is used
- Jobs that call for an air riveter
Features

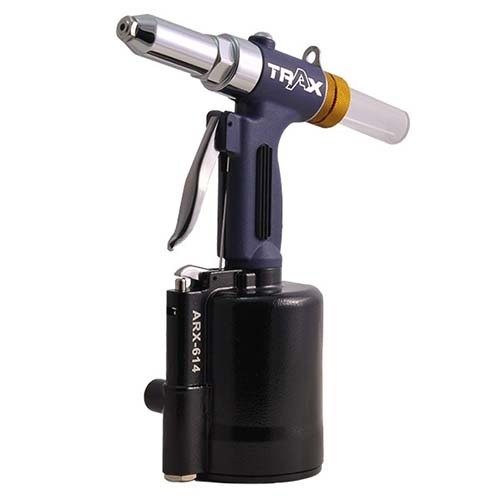

- ARX-614: nosepieces from 3/32" to 1/4"

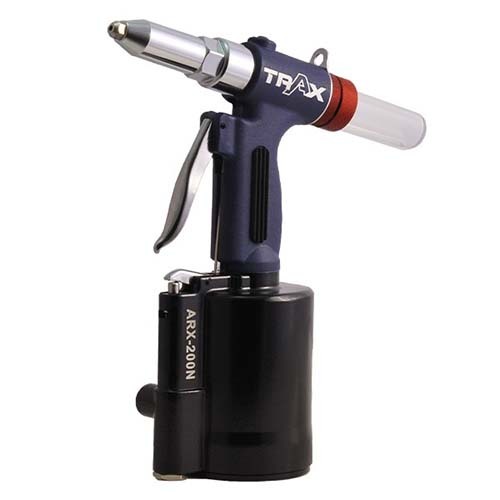

- ARX-200N: general purpose pneumatic riveter, nosepieces from 3/32" to 3/16"
- Type: Air hydraulic riveter
- Part numbers: ARX-614, ARX-200N
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Air hydraulic riveter |
| Part numbers | ARX-614, ARX-200N |
| Sizes | 1/4", 3/16" |
| Air inlet | 1/4" |
| Air hose size (I.D.) | 6.5mm (1/4") |
Choosing the right option
Choose by size and stroke length: ARX-614 comes in the 1/4" size with a 14mm stroke length, and ARX-200N in the 3/16" size with a 16mm stroke length.
Also from Trax: Trax ARX-200NK 3/16" Air Hydraulic Riveter Kit, Trax ARX-270N 3/16" Heavy Duty Air Hydraulic Riveter, Trax ARX-380 5/16" Heavy Duty Air Hydraulic Riveter, Trax ARX-0123A 7.5mm M4-M10 Air Nut Riveter.
| Part number | Size | Stroke length | Working air pressure | Traction power |
|---|---|---|---|---|
| ARX-614 | 1/4" | 14mm | 85 - 92 psi | 1,603 kgf / 3,528 lbf at 85psi |
| ARX-200N | 3/16" | 16mm | 78 - 85 psi | 1,045 kgf / 2,299 lbf at 85psi |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Air Hydraulic Riveter: 1/4
SKU: A0134675 | Model: ARX-614
Trax ARX-614 1/4" air hydraulic riveter, 14mm stroke length, 1/4" air inlet.
