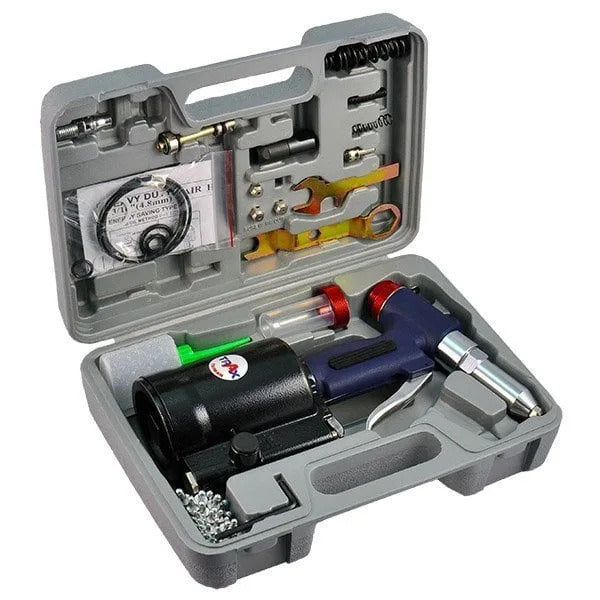

Trax 3/16" Air Hydraulic Riveter Kit ARX-200NK

Traction Power (kgf / lbf)
1,045 / 2,299 at (85psi)
Stroke Length (mm)
16
Net Weight (kg)
1.5
Working Air Pressure (psi)
78 - 85
Nosepiece
3/32" (2.4mm)1/8" (3.2mm)5/32" (4.0mm)3/16" (4.8mm)
Width x Height(mm)
165 x 270
Air Consumption (Liter/Stroke)
1.48
Air Inlet (PT)
1/4"
Air Hose Size (I.D.)
6.5mm (1/4")
Capacity
Steel Rivets :Min. 3/32"(2.4mm)Max. 3/16"(4.8mm) Stainless Rivets :Max. 5/32"(4.0mm)

Contents:

No.
Description
Quantity
1
Air Hydraulic Riveter (ARX-200N)
1
2
Nosepiece: 3/32" (2.4mm), 1/8" (3.2mm) 3/16" (4.8mm), 5/32" (4.0mm)
4
3
Jaw & Jaw Case Replacement Assembly
1
4
Valve & Trigger Replacement Assembly
1
5
Return Spring
1
6
Bolt Plug
1
7
Jaw Case Spring
1
8
Valve Pusher
1
9
Spanner Gauge 17, 15, 71mm
1
10
Spanner 24, 15, 10mm
1
11
O-ring
6
12
Safety Cap
1
13
Safety Cap Nut
1
14
Oiler
1
15
Hex Wrench
1
16
Plug
1
17
Rivets 3/32" (2.4mm)
10
18
Rivets 1/8" (3.2mm)
10
19
Rivets 5/32" (4.0mm)
10
20
Rivets 3/16" (4.8mm)
10
