Trax ARX-1506CW to ARX-1519CW 15° deep offset combination
Available

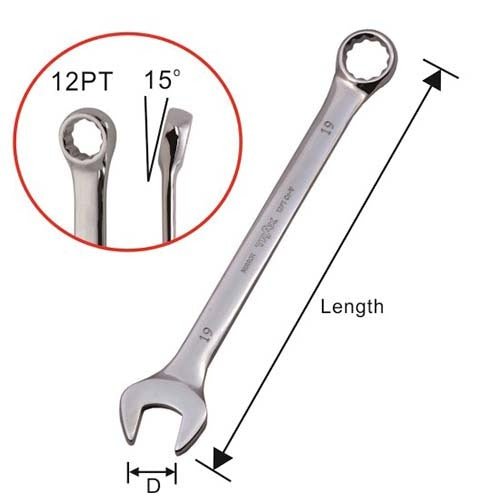

This is a Trax 15° deep offset 12PT combination wrench in 14 metric sizes from 6mm to 19mm, part numbers ARX-1506CW to ARX-1519CW. Each size comes in its length.
Each size comes in a 15° offset and 12 points (12PT).
Where this product is used
- Jobs that call for a combination spanner
Features
- Type: Deep offset combination wrench
- Sizes: 14 sizes, 6mm to 19mm
- Offset: 15°
- Points: 12 (12PT)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Deep offset combination wrench |
| Sizes | 14 sizes, 6mm to 19mm |
| Offset | 15° |
| Points | 12 (12PT) |
| Measurement | Metric |
| Part numbers | ARX-1506CW to ARX-1519CW |
Choosing the right option
Choose by size. The 14 sizes are 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 and 19mm, and the length rises with the size, from 105mm for 6mm to 235mm for 19mm. A 14 piece 15° offset combination wrench set is ARX-1514CM.
Also from Trax: Trax ARX-1514CM 15° Offset 12PT Metric Combination Wrench Set, 14Pc, Trax Straight 12PT Metric Gear Wrench, Trax Offset 12PT Metric Double Ring Wrench, Trax 12PT Metric Combination Wrench.
| Part number | Size | Length |
|---|---|---|
| ARX-1506CW | 6mm | 105mm |
| ARX-1507CW | 7mm | 115mm |
| ARX-1508CW | 8mm | 125mm |
| ARX-1509CW | 9mm | 135mm |
| ARX-1510CW | 10mm | 145mm |
| ARX-1511CW | 11mm | 155mm |
| ARX-1512CW | 12mm | 165mm |
| ARX-1513CW | 13mm | 175mm |
| ARX-1514CW | 14mm | 185mm |
| ARX-1515CW | 15mm | 195mm |
| ARX-1516CW | 16mm | 205mm |
| ARX-1517CW | 17mm | 215mm |
| ARX-1518CW | 18mm | 225mm |
| ARX-1519CW | 19mm | 235mm |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Deep Offset 12PT Combination Wrench: 14
SKU: A0134604 | Model: ARX-1514CW
Metric 14mm combination wrench, 12PT with a 15° deep offset, 185mm long. Trax part number ARX-1514CW.
