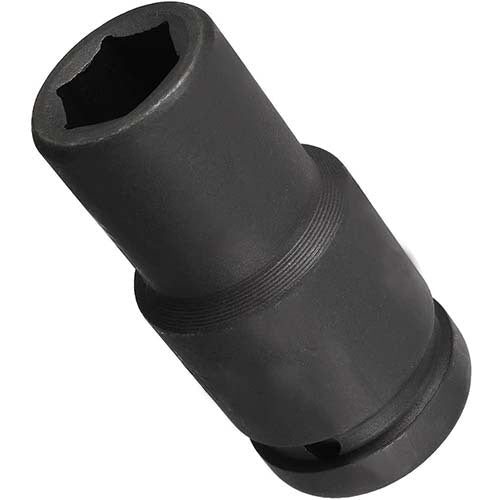

Trax 3/4" drive long impact sockets, 3/4"
Available
Trax 3/4" drive long impact sockets come in 18 imperial sizes from 11/16" to 2". Each size has its own part number, from IS-3411/16L (11/16") to IS-342L (2").
This range is Hexagon SAE Size on a 3/4" drive. The part number ends in L and carries the size after IS-34, for example IS-341-15/16L for 1-15/16".
Where this product is used
- Jobs that call for an impact socket
Features
- 18 imperial sizes, 11/16" to 2"
- 3/4" drive on every size
- Socket length 90mm for every size
- Type: Long impact socket
Key specifications
| Specification | Detail |
|---|---|
| Type | Long impact socket |
| Brand | Trax |
| Drive size | 3/4" |
| Style | Long |
| Measurement | Imperial |
| Sizes | 18 sizes, 11/16" to 2" |
| Socket length | 90mm |
Choosing the right option
Choose the size that matches the fastener; the 18 sizes run from 11/16" to 2", all on a 3/4" drive. Every size comes in the same 90mm socket length, so the choice comes down to the size. The same 3/4" drive comes in a short style on the 3/4" drive short impact sockets in imperial (11/16" to 2"), and (Hexagon Metric Size) on the 3/4" drive long impact sockets (Hexagon Metric Size). Diameter 1 and Thickness both rise with the size; Diameter 2 is 44mm on every size from 1-1/16" up.
Also from Trax: Trax Drive Long Impact Socket (Hexagon Metric Size), Trax 3/4" Drive Short Impact Socket - Imperial, Trax AS-6009S 3/4" Drive 6PT Imperial Impact Socket Set, 8Pc Set.
| Part number | Size | Socket length | Diameter 1 | Diameter 2 | Thickness |
|---|---|---|---|---|---|
| IS-3411/16L | 11/16" | 90mm | 30mm | 41mm | 26mm |
| IS-343/4L | 3/4" | 90mm | 32.5mm | 42mm | 26mm |
| IS-341-1/16L | 1-1/16" | 90mm | 42.5mm | 44mm | 28mm |
| IS-341-1/8L | 1-1/8" | 90mm | 44mm | 44mm | 28mm |
| IS-341-3/16L | 1-3/16" | 90mm | 46mm | 44mm | 28mm |
| IS-341-1/4L | 1-1/4" | 90mm | 48.5mm | 44mm | 28mm |
| IS-341-5/16L | 1-5/16" | 90mm | 50mm | 44mm | 30mm |
| IS-341-3/8L | 1-3/8" | 90mm | 52.5mm | 44mm | 30mm |
| IS-341-7/16L | 1-7/16" | 90mm | 53.5mm | 44mm | 30mm |
| IS-341-1/2L | 1-1/2" | 90mm | 56mm | 44mm | 34mm |
| IS-341-9/16L | 1-9/16" | 90mm | 58.5mm | 44mm | 34mm |
| IS-341-5/8L | 1-5/8" | 90mm | 60mm | 44mm | 34mm |
| IS-341-11/16L | 1-11/16" | 90mm | 62.5mm | 44mm | 34mm |
| IS-341-3/4L | 1-3/4" | 90mm | 64mm | 44mm | 34mm |
| IS-341-13/16L | 1-13/16" | 90mm | 66mm | 44mm | 34mm |
| IS-341-7/8L | 1-7/8" | 90mm | 68mm | 44mm | 34mm |
| IS-341-15/16L | 1-15/16" | 90mm | 70mm | 44mm | 36mm |
| IS-342L | 2" | 90mm | 71mm | 44mm | 36mm |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Drive Long Impact Socket (Hexagon SAE Size): 3/4"
SKU: A0134713 | Model: IS-343/4L
Part number IS-343/4L is a 3/4" long impact socket on a 3/4" drive, socket length 90mm and thickness 26mm.
