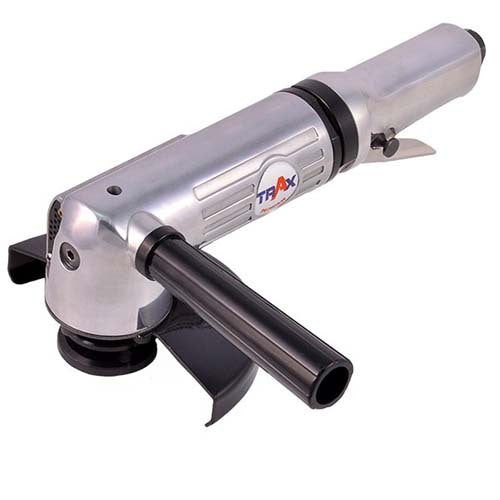

Trax ARX-832L 4" and ARX-835L 5" heavy duty air angle
Available
Trax offers heavy duty air angle grinders in two wheel sizes: ARX-832L (4" wheel, 226mm overall length) and ARX-835L (5" wheel, 257mm overall length), both rated at 0.6 HP.
Where this product is used
- Jobs that call for an air angle grinder
Features
- Aluminium alloy housing
- Spiral bevel gearing in the angle head
- Ball bearing construction
- Auxiliary side handle
- Wheel guard
- Lever throttle
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Air angle grinder |
| Motor power | 0.6 HP |
| Air pressure | 90 psi |
| Air inlet (PT) | 1/4" |
| Minimum hose size | 3/8" |
Choosing the right option
Choose by wheel size: ARX-832L is the 4" grinder (12000 RPM free speed) and ARX-835L the 5" grinder (10000 RPM free speed, 11000 RPM maximum).
Also from Trax: Trax KPT-100A 4" Kawasaki Grinder 12000RPM, Trax ARX-854S 4" Industrial Angle Grinder.
| Part number | Wheel | Free speed | Spindle size | Overall length | Air consumption | Sound pressure |
|---|---|---|---|---|---|---|
| ARX-832L | 4" | 12000 RPM | 3/8"-24 UNF | 226mm | 15 cfm | 86 dBA |
| ARX-835L | 5" | 10000 RPM | M14 x 2.0 P | 257mm | 15 cfm | 88 dBA |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

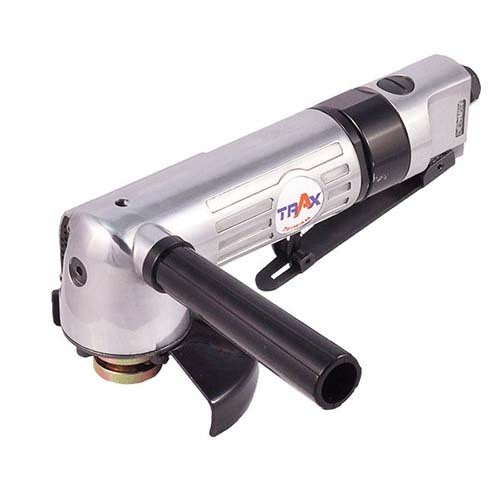

Trax Heavy Duty Air Angle Grinder: 226
SKU: A0134666 | Model: ARX-832L
Trax ARX-832L 4" heavy duty air angle grinder, 12000 RPM free speed.
