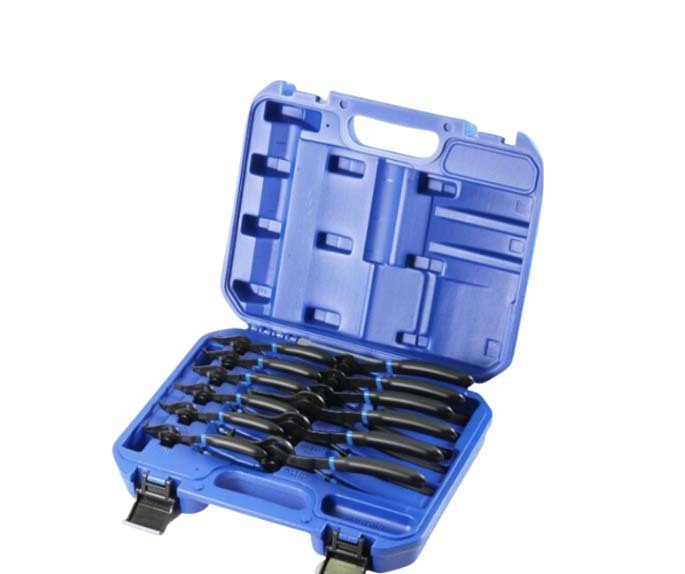

Trax Internal/External Circlip Set - ARX-CP3012

• These versatile circlip pliers handles both internal and external circlips ranging from 8mm to 82mm.
• Made from heat-treated chrome molybdenum (CR-MO) steel for superior strength and durability, it tackles tough jobs with ease.
• The ergonomic handle provides a comfortable grip for precise control.

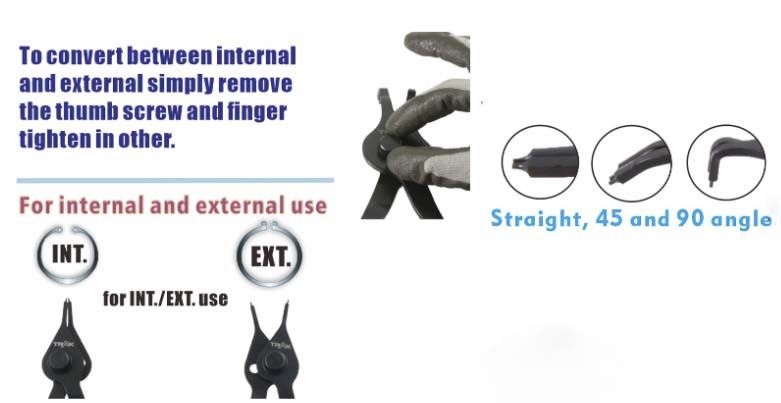

• Quickly convert between internal and external applications with the removable thumb screw.

Contents

Part Number
Tip Angle
Tip Size (in/mm)
Internal Size - Internal (Bore)
External Size - External (Shape)
ARX-CP100
0°
0.038/1.0
8-18mm
8-18mm
ARX-CP104
45°
0.038/1.0
8-18mm
8-18mm
ARX-CP109
90°
0.038/1.0
8-18mm
8-18mm
ARX-CP120
0°
0.047/1.2
12-25mm
12-25mm
ARX-CP124
45°
0.047/1.2
12-25mm
12-25mm
ARX-CP129
90°
0.047/1.2
12-25mm
12-25mm
ARX-CP180
0°
0.070/1.8
18-48mm
18-48mm
ARX-CP184
45°
0.070/1.8
18-48mm
18-48mm
ARX-CP189
90°
0.070/1.8
18-48mm
18-48mm
ARX-CP230
0°
0.090/2.3
31-82mm
31-82mm
ARX-CP234
45°
0.090/2.3
31-82mm
31-82mm
ARX-CP239
90°
0.090/2.3
31-82mm
31-82mm
