Trax ARX-MP234 and ARX-MP237 spring tension puller ARX-MP237
Available

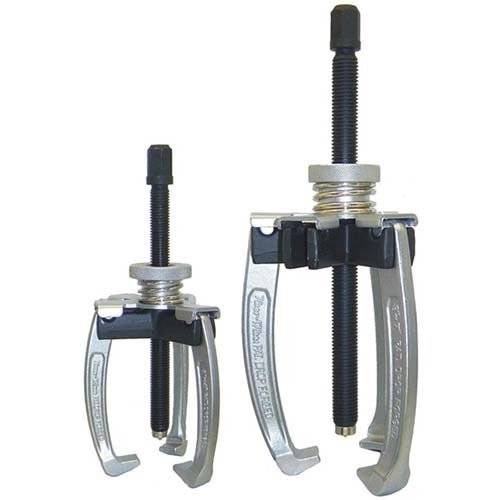

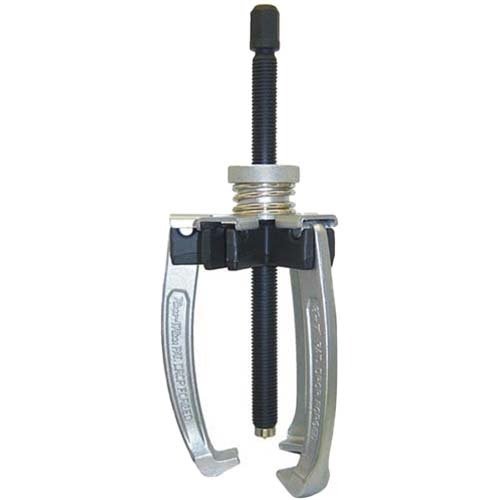

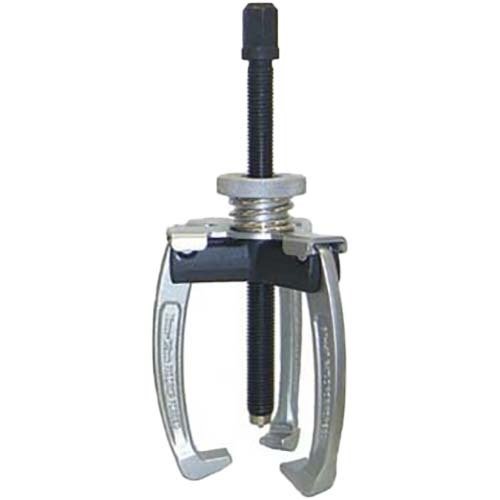

Trax 2 & 3 jaws spring tension puller in two sizes: ARX-MP234 (4") with a capacity range of 75-100mm and ARX-MP237 (7") with a capacity range of 75-175mm.
The jaws can be changed to operate in a 2 or 3 jaw configuration for internal or external pulling action.
Where this product is used
- Internal or external pulling, with the jaws set up in a 2 or 3 jaw configuration
Features
- Jaws change between a 2 jaw and a 3 jaw configuration
- Set up for internal or external pulling action
- Unscrew the knurled screw cap to release the spring and jaw cover, unhook the jaws and replace them as needed, then replace the cover plate and tighten the spring with the knurled screw
- Moving parts to be kept clean and well oiled
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | 2 & 3 jaws spring tension puller |
| Part numbers | ARX-MP234, ARX-MP237 |
| Sizes | 4", 7" |
| Capacity range | 75-100mm (4"), 75-175mm (7") |
| Jaw configuration | 2 & 3 |
Choosing the right option
Choose by capacity range: ARX-MP234 (4") covers 75-100mm and ARX-MP237 (7") covers 75-175mm.
Also from Trax: Trax 2-3 Jaw Puller - Alloy Steel, Trax 2-Jaws Mechanical Puller, Trax 3-Jaws Mechanical Puller, Trax ARX-5MP4 4", 2-in-1 Mechanical Puller.
| Part number | Size | Capacity range | Jaw configuration |
|---|---|---|---|
| ARX-MP237 | 7" | 75-175mm | 2 & 3 |
| ARX-MP234 | 4" | 75-100mm | 2 & 3 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax 2 & 3 Jaws Spring Tension Puller: 7
SKU: A0134668 | Model: ARX-MP237
Trax ARX-MP237, 7" 2 & 3 jaws spring tension puller with a capacity range of 75-175mm.
