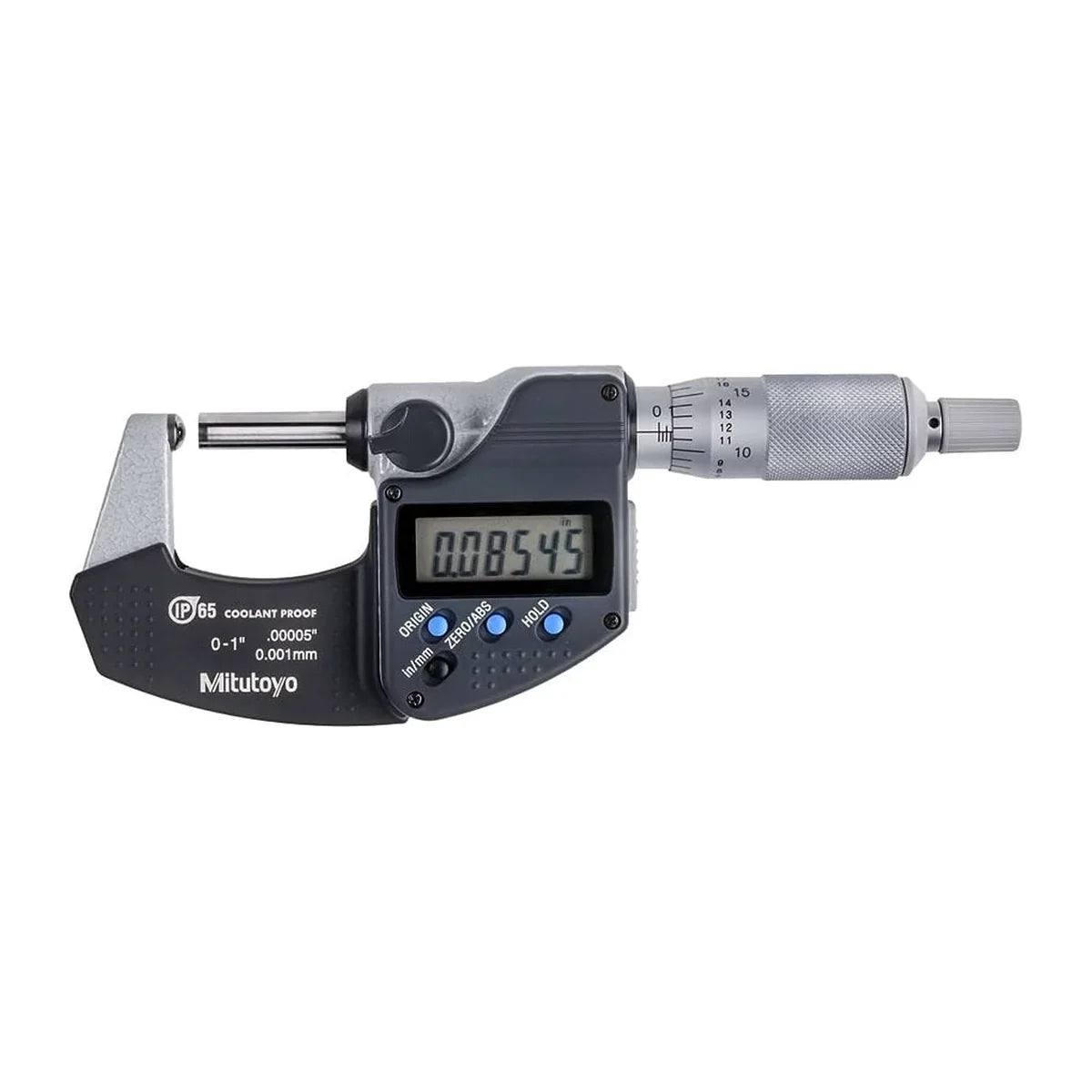

Mitutoyo 395-371-30 Digimatic Tube Micrometer, 0-1"
Out of stock
The Mitutoyo 395-371-30 is a Digimatic tube micrometer for measuring curved surfaces such as the wall thickness of tubes, bearings and rings. Both the anvil and the spindle have rounded (spherical) faces. Quality control teams, toolrooms and machinists use it where a digital reading and data output are wanted.
It measures 0-1" with a digital step of .00005" or 0.001mm and a maximum permissible error of ±.0001". Resolution is the smallest step the display shows. It is not the same as accuracy, which is the biggest error Mitutoyo allows. SPC output lets the micrometer send readings to a computer or data system through an optional cable. The series has IP65 water and dust protection.
Where this product is used
- Measuring wall thickness on tubes, bearings and rings
- Quality control where readings go to a data system
- Toolroom inspection of curved parts
Features
- Spherical anvil and spindle for curved surfaces
- Range 0-1", with a digital step of .00005" / 0.001mm
- Maximum permissible error of ±.0001"
- LCD display, character height 7.5mm
- SPC data output
- Origin setting, ABS / INC zero, hold, function lock and low voltage alarm
- Auto power off after 20 min. of non use
- Comes with a box, a spanner and an SR44 battery
Key specifications
| Specification | Detail |
|---|---|
| Brand | Mitutoyo |
| Model | 395-371-30 Digimatic tube micrometer |
| Range | 0-1" |
| Digital step | .00005" / 0.001mm |
| Max permissible error | ±.0001" |
| Anvil and spindle | Spherical, SR=4mm |
| Minimum tube inside diameter | .59" |
| Data output | Yes |
| Mass | 270 g |
