Seco 63 x 200mm Turbo 12 Square Shoulder | AIMS Industrial

***Illustrations shown may vary from actual product***

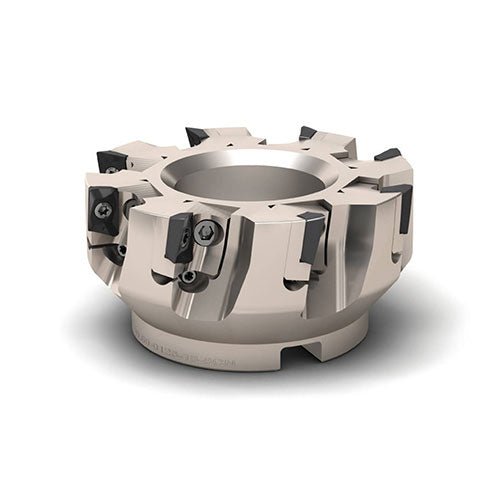

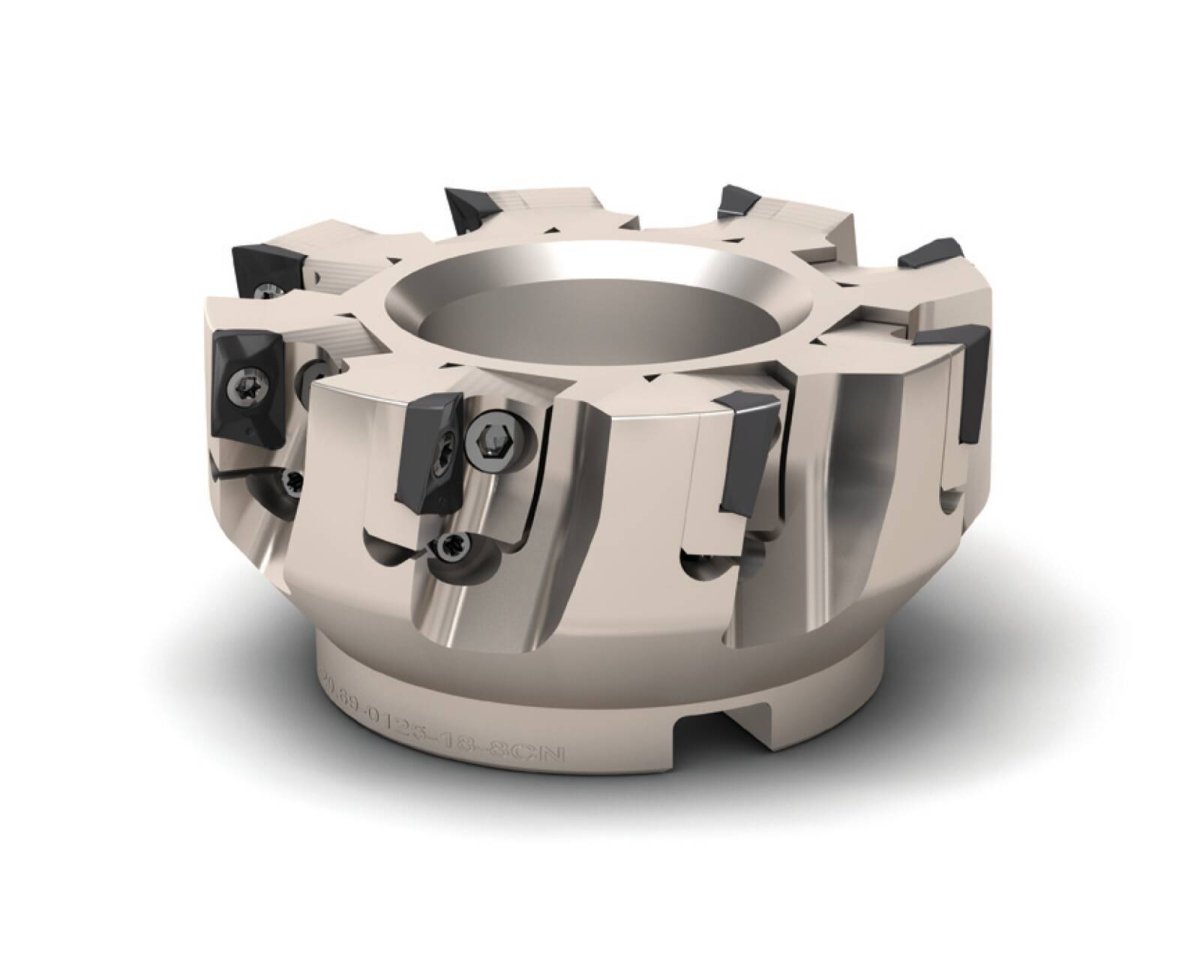

Seco 63 x 125mm Turbo 12 Square Shoulder Milling Cutter 8 Teeth - (Arbor) R220.69-0125-12-8CN

Turbo 12 Milling Cutter (Arbor) - With Adjustable Cassettes

• For Arbor.
• Arbor shank type.
• General purpose, larger depth.
• 12 mm insert size.
• Maintains high tolerances and optimum precision.
• Extremely flexible and reliable.
• Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

• Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
• These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
• Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
• Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
• Cutter range 20-250 mm (0.75-8 inch).
• Max depth of cut 11 mm (0.433 inch).
• Recommended slotting depth of cut 6 mm (0.236 inch).
• Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).
