Seco R220.69-0040-12-4AN Square Shoulder Milling Cutter
Available

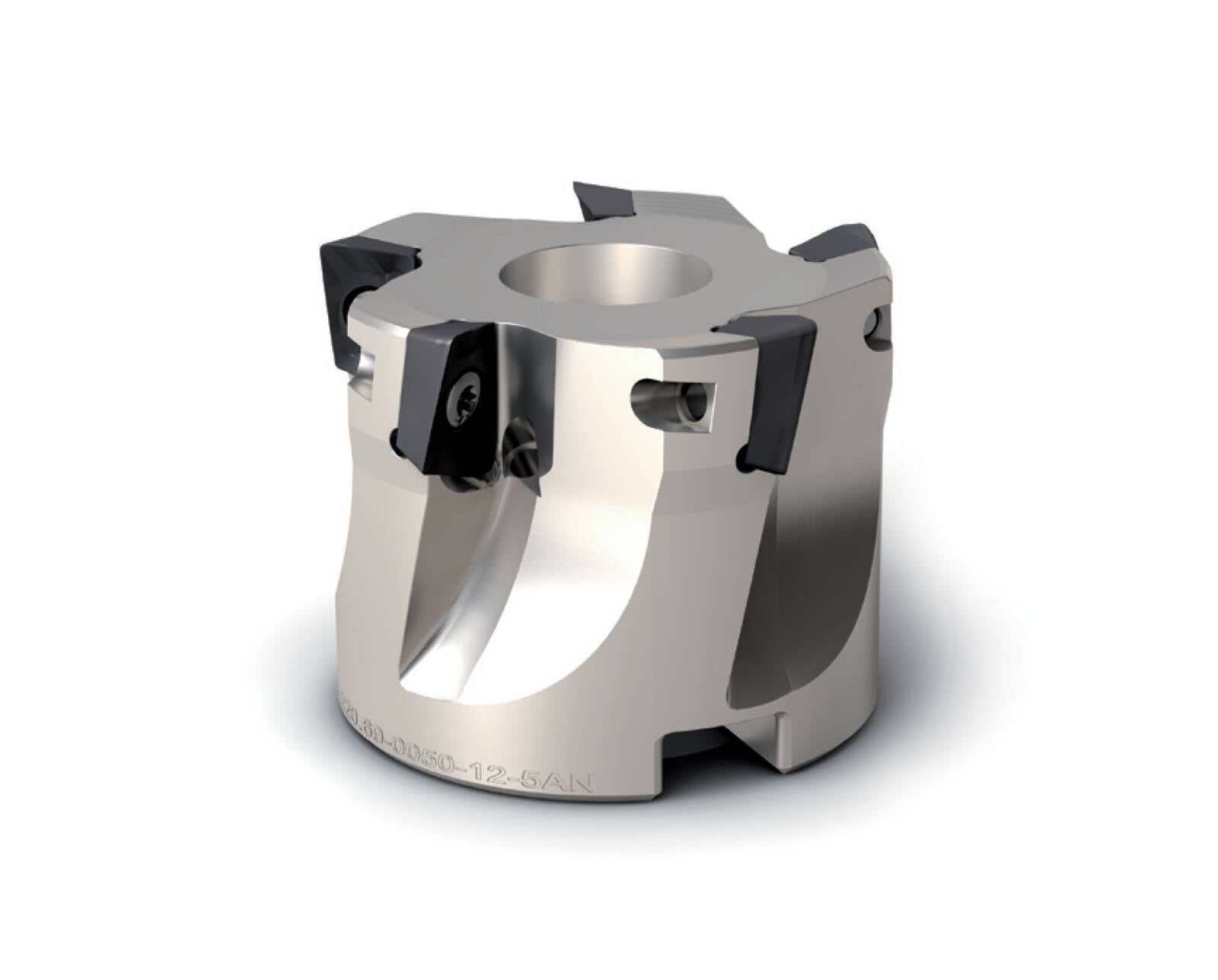

Genuine Seco Turbo 12 Milling Cutter (Arbor) - With Through Coolant supply.
Key Specifications
| Shank Type | Arbor |
|---|---|
| Insert Size | 12mm |
| Additional Details | For Arbor. General purpose, larger depth. Maintains high tolerances and optimum precision. Extremely flexible and reliable. Coated & hardened cutter body. |
About Turbo Square Shoulder Milling Cutter
Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces. These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material. Maximize output in a wide range of applications including; roughing, semi-finishing, finishing. Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications. Cutter range 20-250 mm (0.75-8 inch). Max depth of cut 11 mm (0.433 inch). Recommended slotting depth of cut 6 mm (0.236 inch). Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
R220.69-0040-12-4AN
Model Number: 02677566
-
R220.69-0050-12-5AN
Model Number: 02677572
-
R220.69-0063-12-6AN
Model Number: 02677576
-

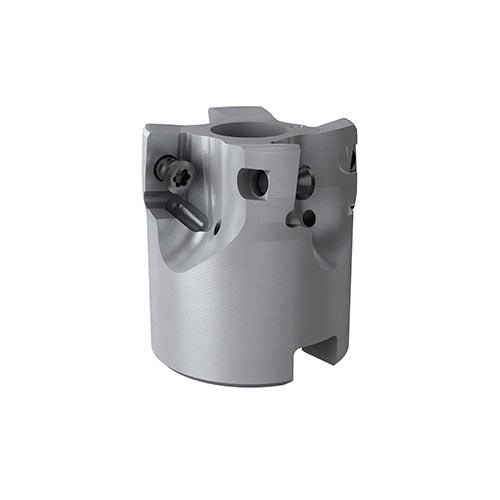

R220.69-0032-12-4AN
Model Number: 02841297
-
R220.69-0080-12-7AN
Model Number: 02677608
-
R220.69-0100-12-12AN
Model Number: 02677609
-

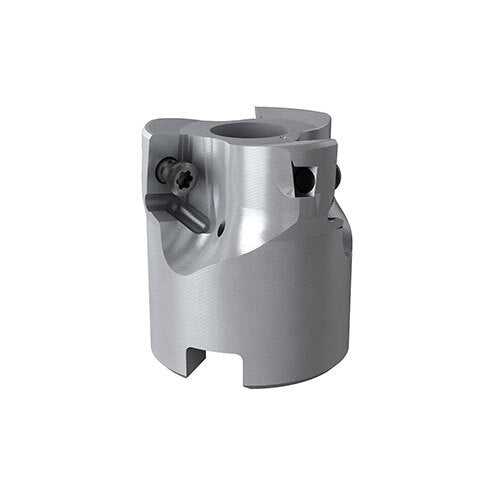

R220.69-0032-12-3AN
Model Number: 02841296
-
R220.69-0040-12-5AN
Model Number: 02677570
-
R220.69-0044-12-4AN
Model Number: 02969083
-
R220.69-0050-12-7AN
Model Number: 02677573
-

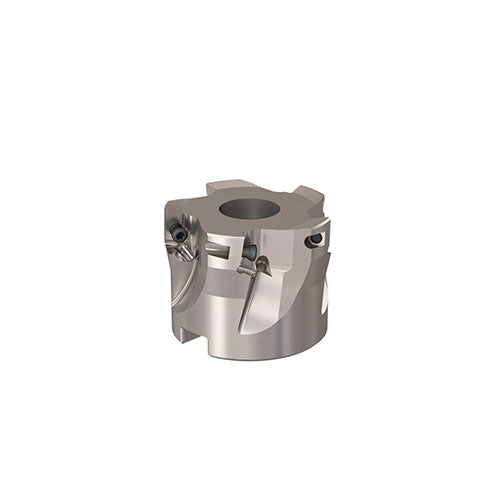

R220.69-0052-12-5AN
Model Number: 02497527
-

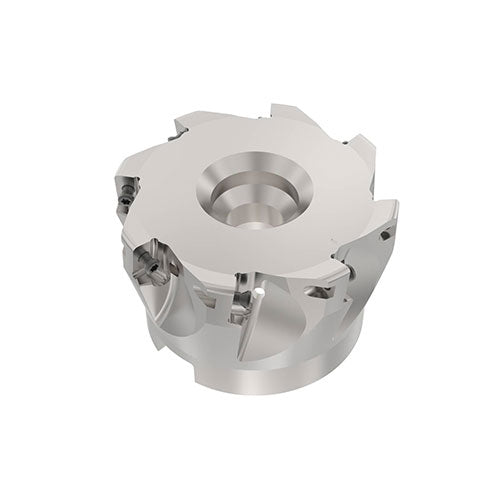

R220.69-0063-12-8AN
Model Number: 02677578
-
R220.69-0066-12-6AN
Model Number: 02969085
-
R220.69-0080-12-10AN
Model Number: 02677581
-

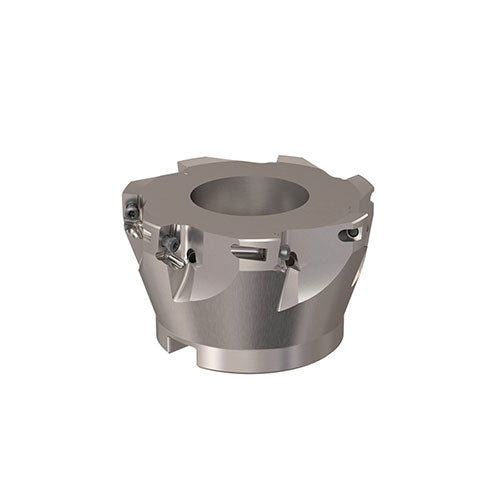

R220.69-0084-12-7AN
Model Number: 02969086
-

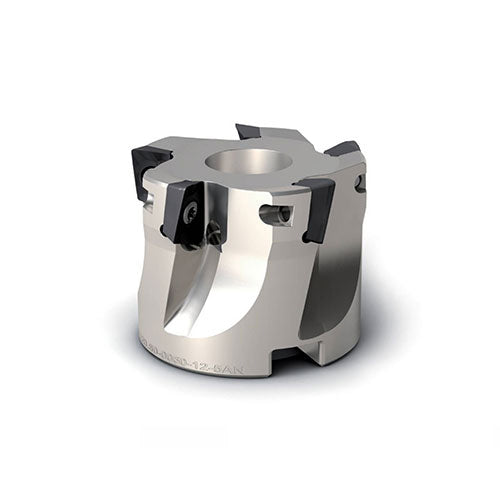

R220.69-0100-12-8AN
Model Number: 02677610
-
R220.69-0125-12-10AN
Model Number: 02677611
-
R220.69-0125-12-14AN
Model Number: 02677613
